Hawa Puro 100/150

Application

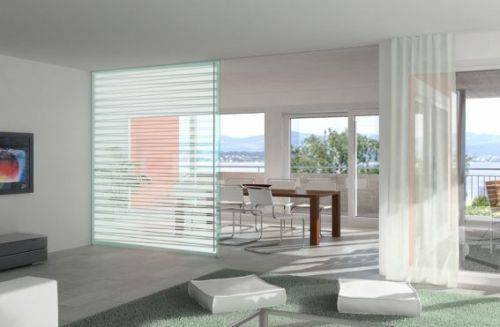

Suitable for use in areas glass/ glass or glass/ wood combinations are used as room partitioning and design elements, in areas such as:

  • Hotels.
  • Restaurants.
  • Conference rooms.
  • Administration buildings.
  • Private interior design projects, e.g. in lofts with suspended ceilings.

For two-panel sliding doors, order two sets for single doors.

Description

Hardware with concealed suspension for all-glass movable walls/ doors weighing up to 100 or 150 kg. Maximum panel width: 750 mm. Suitable for partition thickness of 8–12.7 mm.

Features and benefits:

  • Aesthetically pleasing.
  • High-quality ball bearing technology built into the trolleys enables the smooth, quiet sliding of doors weighing up to 150 kg.
  • Easy to install due to rattle-proof, floor-mounted guides, centric glass suspension and wedge suspension.
  • Compatible for use with sliding doors: Fully tempered monolithic glass (of 8, 10, 12, 12.7 mm thickness) and fully tempered laminated glass (of 8–12.7 mm thickness), and fixed doors: Fully tempered monolithic/ laminated glass (of 8–12 mm thickness, up to 13 mm with silicone).
  • Includes removable additional profiles for quick integration of fixed elements of glass, wood or other materials (removable from below).
  • Ceiling joint profiles for suspended lightweight ceilings.
  • Interlocking suspension of glass doors in the slide axis.
  • Flexible combination options with one-sided stationary elements in wood or glass and two-sided sliding door pockets in wood - consult manufacturer for details.

Components:

Quantities vary depending on variant specified - consult manufacturer for details.

  • Four-wheeled trolley, with plastic-tyred ball bearing wheels (21141).
  • Six-wheeled trolley, with plastic-tyred ball bearing wheels (21111).
  • Suspension wedges for glass mounting, set for one door.
  • Track stop, one pair.
  • Set of screws for mounting U-profile, 3.5 x 9.5 mm.
  • Hex key, 3 mm.

Applications:

Suitable for use in areas glass/ glass or glass/ wood combinations are used as room partitioning and design elements, in areas such as:

  • Hotels.
  • Restaurants.
  • Conference rooms.
  • Administration buildings.
  • Private interior design projects, e.g. in lofts with suspended ceilings.

For two-panel sliding doors, order two sets for single doors.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Hawa Puro 100 (21141)

Set for one glass sliding door, up to 100 kg panel weight.

Hawa Puro 150 (21111)

Set for one glass sliding door, up to 150 kg panel weight.

Running track set

-

Running track

-

Material/ Finish

Aluminium plain anodized

Aluminium stainless steel effect

Length

2500 mm

3500 mm

6000 mm

Cut to size

Insert requirements.

U-profile/ Cover profile

-

Material/ Finish

Aluminium plain anodized

Aluminium stainless steel effect

Aluminium unanodized

Compatible with 6000 mm running track only.

Length

As running track

Floor guide

Various configurations and accessories available, consult manufacturer for details.

Ceiling joint profile

-

Material/ Finish

Aluminium plain anodized

Aluminium stainless steel effect

Aluminium unanodized

Length

2500 mm

Not available for aluminium unanodized.

3500 mm

Not available for aluminium unanodized.

6000 mm

Cut to size

Insert requirements.

Accessories/ Other requirements

Not required

Bottom door stop

Available in dull chromium finish or stainless steel effect, insert requirements.

Bottom/ wall profile

For fixed glass. Various configurations available, consult manufacturer's literature and insert requirements.

Fitting set to Hawa Adapto 100-150

Consult manufacturer for details.

Fixing set for stationary wood

Required to secure stationary elements manufactured from wood or other materials.

Glass cutouts

Various configurations available, consult manufacturer's literature and insert requirements.

Glass fixing parts

Various options available, consult manufacturer's literature for details.

Hawa Adapto 100-15

Fitting set which allows Hawa Puro 100/150 running tracks to be embedded into concrete ceilings. Length is dependent on the specified length of the running track.

Hawa Toplock

Consult manufacturer for details.

Rubber profile, self-adhesive

Available black or translucent, and in 5, 10 and 50 m rolls. Helps to minimize draughts.

Vertical sealing profile

Effective against draughts. Various configurations available, consult manufacturer's literature and insert requirements.

Wall connection profile

For unprotected glass edges. Various configurations available, consult manufacturer's literature and insert requirements.

Standard product features

Configuration:

Top-hung, sliding

Product Options

Running track set:

Each set includes one running track in the specified size and finish. Also includes two U-profiles and two cover profiles.

Ceiling joint profile:

Ceiling joint profiles for running tracks enable simple designs for suspended lightweight ceilings. They are delivered as individual components

Accessories/ Other requirements:

- Hawa Adapto 100-150:

Consists of a distance plate, and pan head screws.

Other accessories and spares are also available, consult manufacturer for details.
