Hawa Porta 100 G

Application

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public offices.
  • Interior furnishings.

Description

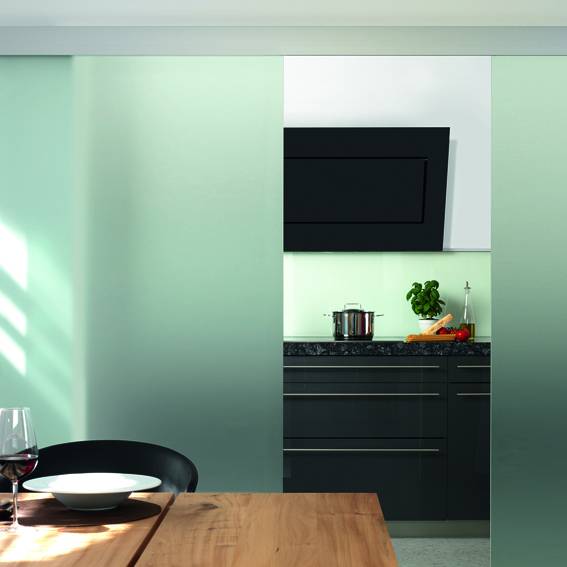

Sliding door mechanism designed for use with one glass door panel weighing up to 100 kg.

Features and benefits:

  • Ceiling or wall mounting.
  • Adjustable stopper force.
  • Ball-bearing running gear.
  • Glass does not require cutting or holes to be drilled during installation.

- Suitable for use with door panels:

  • Panel thickness: 8–12.7 mm.
  • Maximum panel width: 1600 mm.
  • Maximum panel height: 2700 mm.
  • Maximum panel weight: 100 kg.

Components:

Quantities of each component may vary dependent - consult manufacturer for details. Fittings available individually or in set with track. Spare parts available on request.

  • Combi running track.
  • Clip panel, to obscure running track.
  • Four-wheeled trolley, white x 2, with ball bearings and plastic rollers.
  • Clamping shoe x 2.
  • Plastic stopper with retention spring, grey finish.
  • Plastic stopper without retention spring, grey finish.
  • Bottom guide, matted chrome. Adjustable play free.
  • Wall buffer, black rubber, 19 x 10 mm.

Applications:

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public offices.
  • Interior furnishings.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Hawa Porta 100 G

Installation/ Design

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Mounting

Ceiling

Standard.

Wall

Combi running track

1700 mm

2000 mm

2500 mm

3500 mm

6000 mm

Clip panel

Anodized aluminium, 2500 mm

Anodized aluminium, 2500 mm

Anodized aluminium, 2500 mm

Wood

Consult manufacturer for options below and insert requirements.

Accessories/ Other requirements

See 'Options' below and insert requirements.

Standard product features

Configuration:

Top hung, sliding.

Product Options

Combi running track:

Aluminium, pre-drilled.

Accessories/ Other requirements:

Other accessories and spares are also available, consult manufacturer for details. Includes screen seals and panel end component sets for wall or ceiling mounted configurations.
