HAWA Multifold 30

Furniture hardware for sliding folding cabinet/ wardrobe doors with a maximum panel weight of 30 kg (or 60 kg for a pair). Maximum height: 2600 mm. Door width: 200–500 mm (free slideable), 200–650 mm (side hinged). Suitable for door panel thickness of 19–25 mm.

Features and benefits:

• Two cabinet/ wardrobe doors can be folded as panel pairs and moved backwards and forwards.

• There is no limit to the amount of panel pairs - and several panels can be joined together using an adaptor.

• Cabinet designs can incorporate inlaying, semi-overlaying and overlaying cabinet doors.

• The cupboard interior space will not be restricted by any protruding hardware elements.

• A horizontal brush seal in the top track and bottom guide channel protects against dust and deadens impact noise.

• For the centre groove, a rubber seal can be used which protects the cupboard interior and hinges against dust. The panel pairs can be locked with a furniture bar bolt lock.

• Suitable for fixing the panels on the side.

• Simple, smooth operation.

• Vertical adjustment (±2 mm).

Components:

Quantities of each component will vary dependent on variant specified - consult manufacturer for details.

• Trolley with two plastic tyred wheels and two guide rollers.

• Suspension unit.

• Floor guide unit, short.

• Floor guide unit, long.

• Roller-guide set, two overlaying doors.

• Set of countersunk head press screws, 4 x 16 mm (12 or 24 pieces).

• Set of fixing screws.

• Spring-concealed centre hinge, with fixing screws.

• Centre hinge, with fixing screws.

• Door catch, plastic (black), with fixing screws.

• Retaining bumper on top.

• Stop bumper, at the bottom.

Applications:

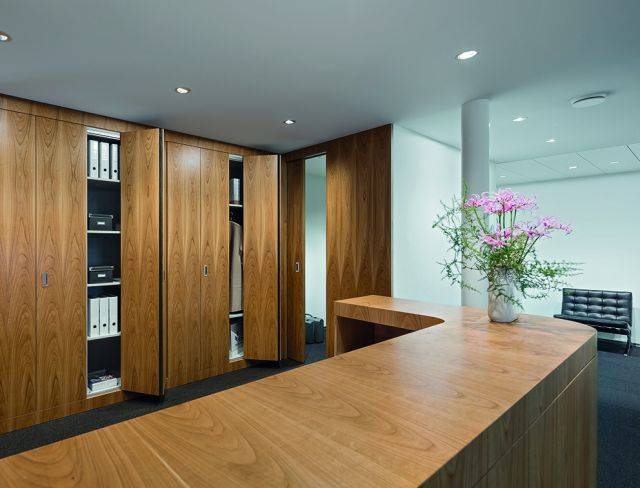

Suitable for use in interior design and furniture projects, for use in areas such as hotels.
