Description

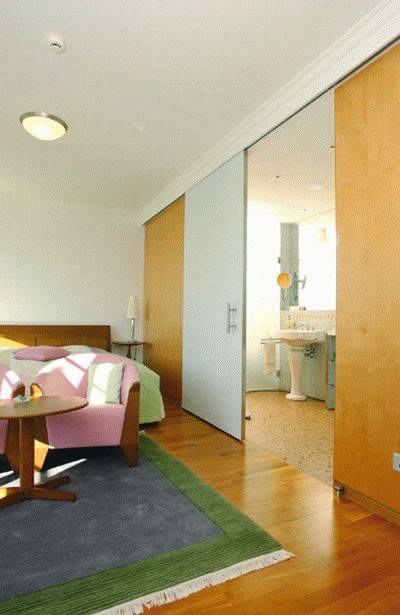

Low headroom top hung door gear, for straight sliding timber interior doors.

General information
Features

Easy installation, low headroom application for more pleasing appearance

Material

Zinc alloy, Plastic, Rubber

Size

2000 mm

Uniclass 2015
Door track and running gear (Pr_30_36_36_23)Primary
Specification data - Door track and running gear
Product Reference

HAWA-Junior 80B

Top track

940.80.200

2000 mm.

940.80.250

2500 mm.

940.80.300

3000 mm.

Accessories

4.0 mm and 4.5 mm diameter Hospa special screws

409.12.990

409.14.010

409.14.029

900.12.865

940.40.071

940.40.072

940.80.005

940.80.041

940.80.050

940.80.062

940.80.099

940.80.253

940.80.401

Standard product features

Features:

  • Suitable for straight, interior sliding timber doors, for low or restricted headroom applications.
  • Vertically adjustable.
  • All parts are corrosion resistant.
  • Door thickness (minimum): 35 mm.
  • Door height (maximum): 2300 mm.
  • Door weight (maximum): 80 kg.

Fitting set:

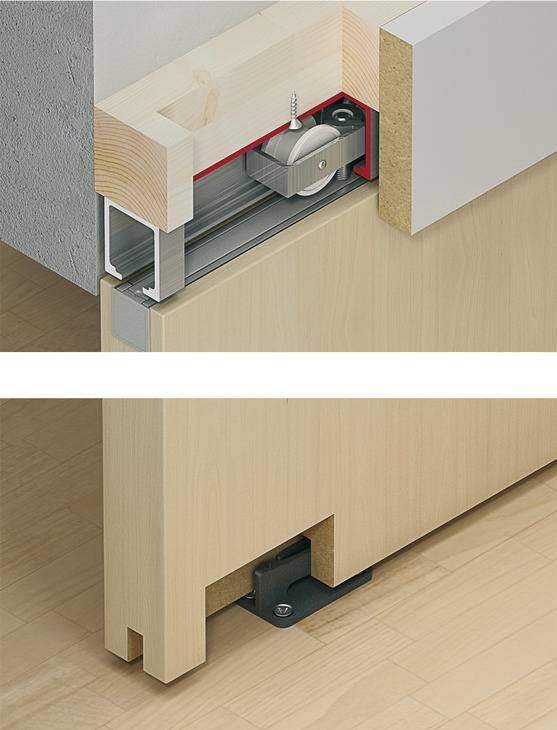

  • HAWA-Junior 80B fitting set, ref: 940.80.002. Set comprises two trolley hangers, locking wrench, two profile plugs, track stopper, black plastic guide and rubber buffer.
  • If the sliding door is required to stop at both ends, an additional track stopper is recommended, ref: 940.80.041.

Fixing screws:

  • Fixing screws to be ordered separately: 4.0 and 4.5 mm diameter Hospa special screws.

Product Options

Top track:

  • Silver anodized aluminium, with screw holes for soffit fixing. Size: 34 mm wide x 40 mm deep, ref: 940.80.200 (2000 mm), 250 (2500 mm) and 300 (3000 mm).
  • Two top tracks are mounted side by side for double or multiple doors.

Accessories:

- Top track side fixing:

  • Additional fittings are available for side fixing of the Junior 80 top track using 'twist and lock' fastening bolts: Anodized aluminium side fixing profile, ref: 940.80.253 (2500 mm) and 401 (4000 mm), galvanized steel track fixing set for fixing the side fixing profile to the top track, ref: 940.80.099 and a pair of grey plastic trim caps, ref: 940.80.062.

- Alternate bottom guiding:

  • Alternative light duty bottom guiding with continuous aluminium channel is available: Guide with steel plate and nylon blade, ref: 409.12.990, and 15 x 12 mm bright aluminium channel, ref: 409.14.010 and 029 (lengths: 2100 and 3000 mm).

- Telescopic fitting set:

  • A telescopic fitting set is available to allow two panels mounted on the Junior 80 system to move simultaneously to one side, possibly into a cavity, ref: 940.80.005 (two HAWA-Junior 80B fitting sets will be required).

- Alternate wall mounted lower guides:

  • Single lower guide, ref: 940.40.071. Designed for sliding doors without cavity panel. 55 mm projection. With single locating element.
  • Double lower guide, ref: 940.40.072. Designed for sliding doors with cavity panel. The outer element retains the cladding panel. 100 mm projection. With adjustable double locating element.
  • Designed for wall mounting of sliding timber and metal doors, instead of floor fixing, which may be difficult due to floor slope, carpet or presence of under-floor heating, etc.
  • Guide element (rebated into bottom of door): 12 mm wide x 20 mm deep.
  • Material: Bronze coloured anodized aluminium bracket and zinc alloy guide, with M6 set screw to adjust guide.

- Additional fittings:

  • An assembly wedge is available which allows trolley hangers to be fixed from the side edge of the panel when the top track and the top of the door is inset into the ceiling, ref: 940.80.050.
  • Special striking plates for rod locks, ref: 900.12.865.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 2 2.1
IFC
- 2 2.1
Download now from NBS National BIM Library
