HAWA Junior 80 GS
Description

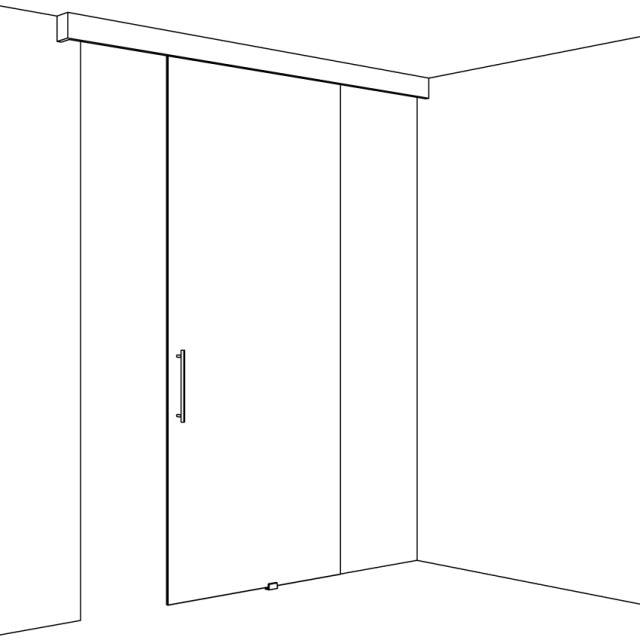

Door hardware with clamping shoe, for use with all-glass sliding doors weighing up to 80 kg.

Features and benefits:

  • The clamp mechanism permits installation of all-glass sliding doors without the requirement for glass cutouts.
  • Provides a time-saving and flexible solu
  • Compatible for use with fully tempered monolithic glass (of 8, 10, 12 or 12.7 mm thickness).
  • Includes floor guide for screw mounting, which is rattle-proof.
  • Adjustable vertically.
  • Can be provided in a wall pocket configuration.

Components:

Quantities vary depending on component - consult manufacturer for details.

  • Two-wheeled trolley, M10, with plastic wheels.
  • Track stop, adjustable retaining force.
  • Clamping shoe, with hanger bolt M10.
  • Screw-on rubber door stop.

For two-panel sliding doors, order two sets for single doors. Consult manufacturer for further details.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

HAWA Junior 80 GS, partial set (17941)

Configuration

Top hung

Standard.

Wall pocket

Supplied with three-piece bottom guide. Enables the door to be pushed into a finished wall pocket. Combined with assembly set for HAWA Junior 80. Consult manufacturer for details.

Running track

1400 mm

1600 mm

1800 mm

2000 mm

2200 mm

2500 mm

3000 mm

4000 mm

6000 mm

Cut to size

Insert requirements.

Closing mechanism

Not required

SoftMove 80

Bottom guide channels

Various configurations available, consult manufacturer's literature and insert requirements. 057.3082.071 must be selected for wall pocket solutions.

Accessories/ Other requirements

Not required

Bottom door stop

Available with dull chromium or stainless steel finish; insert requirement.

Rattle-proof floor guide, three-part

Dull chromium finish, for wall pocket solutions.

Rattle-proof floor mounted guide with self-adhesive sliders

Available with dull chromium or stainless steel finish; insert requirement. Glass thickness 8–12.7 mm.

Self-adhesive sliders, 8/ 10 mm

Insert requirement.

Spring-loaded door stop

Wall connection profile

For unprotected glass edges. Various configurations available, consult manufacturer's literature and insert requirements.

Product Options

Running track/ Bottom guide channels:

Aluminium, plain anodized, pre-drilled (hole positions vary - consult manufacturer for details).

Accessories/ Other requirements:

Other accessories and spares are also available, consult manufacturer for details.
