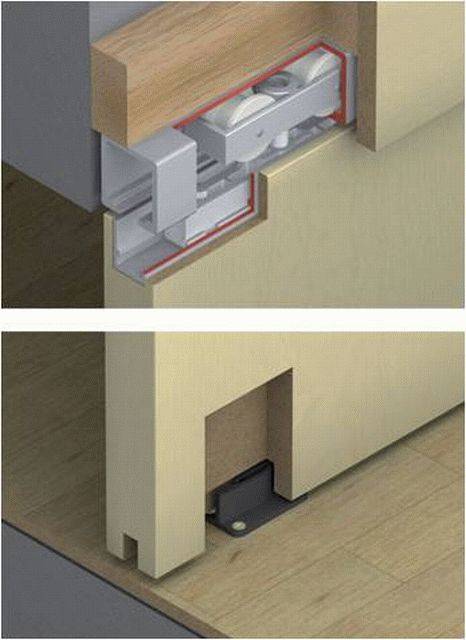

HAWA Junior 120B

Features:

• Suitable for straight, interior sliding timber doors, for low or restricted headroom applications.

• Vertically adjustable.

• All parts are corrosion resistant.

• Door thickness (minimum): 35 mm.

• Door height (maximum): 2500 mm.

• Door weight (maximum): 120 kg.

Fitting set:

• HAWA-Junior 120B fitting set, ref: 941.20.002. Set comprises two trolley hangers, locking wrench, two profile plugs, track stopper, black plastic guide and rubber buffer.

• If the sliding door is required to stop at both ends, an additional track stopper is recommended, ref: 941.20.041.

Fixing screws:

• Fixing screws to be ordered separately: 4.0, 4.5 and 5.0 mm diameter Hospa special screws.

Top Track:

• Silver anodized aluminium, with screw holes for soffit fixing. Size: 45 mm wide x 50 mm deep, ref: 941.20.250 (2500 mm) and 300 (3000 mm).

• Two top tracks are mounted side by side for double or multiple doors.

Accessories:

- Alternate wall mounted lower guides:

• Single lower guide, ref: 940.40.071. Designed for sliding doors without cavity panel. 55 mm projection. With single locating element.

• Double lower guide, ref: 940.40.072. Designed for sliding doors with cavity panel. The outer element retains the cladding panel. 100 mm projection. With adjustable double locating element.

• Designed for wall mounting of sliding timber and metal doors, instead of floor fixing, which may be difficult due to floor slope, carpet or presence of under-floor heating, etc.

• Guide element (rebated into bottom of door): 12 mm wide x 20 mm deep.

• Material: Bronze coloured anodized aluminium bracket and zinc alloy guide, with M6 set screw to adjust guide.

- Additional fittings:

• A black plastic bottom channel insert profile is available, for inserting into groove in bottom of door, ref: 940.41.130.

• An assembly wedge is available which allows trolley hangers to be fixed from the side edge of the panel when the top track and the top of the door is inset into the ceiling, ref: 940.80.050.

• Special striking plates for rod locks, ref: 941.21.090.
