HAWA Frontslide 60 B
Hardware with a minimal installation height for sliding wood or aluminium shutters weighing up to 60 kg.

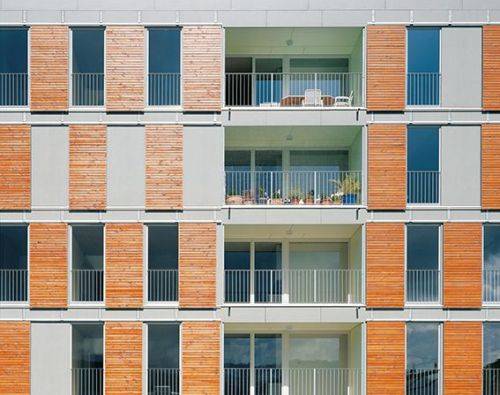

Suitable for facades and areas where screening and shade form part of the facade design, such as:
- Schools.
- Hotels.
- Public buildings.
- Office and administration premises.
- Apartment buildings.
- Low-energy houses.
Hardware with a minimal installation height for sliding wood or aluminium shutters weighing up to 60 kg. Minimum panel width: 400 mm. Maximum height: 3200 mm. Suitable for shutter thickness of 28–40 mm.
Features and benefits:
- Manually operated.
- Does not require a covering screen.
- The suspension cups result in a minimal installation height, and allow shutters to be fitted, removed and height-adjusted from inside the room.
- Hardware can be fixed directly to the ceiling, or to the fixing bracket supports.
- In buildings with an air gap behind the facade, open window shutters can slide out of sight into the space between the building wall and the facade.
- Manufactured from corrosion resistant materials.
- Can be moved into any position.
- High level of wind resistance (Class 6).
Components:
- Two-wheeled trolley, M8, with plastic wheels.
- Concealed press-fit cup, aluminium, with hanger bolt M8.
- Track stop with adjustable retainer
Applications:
Suitable for facades and areas where screening and shade form part of the facade design, such as:
- Schools.
- Hotels.
- Public buildings.
- Office and administration premises.
- Apartment buildings.
- Low-energy houses.
Uniclass 2015 | |
CAWS | P21/10 Quantities and locations P21/350 Door track and running gear |
Product Reference | HAWA Frontslide 60 B (19871) – Partial set for one sliding shutter |
Lower top track | 2500 mm6000 mmCut to sizeInsert requirements. |
Bottom guide channel | 6000 mmCut to sizeInsert requirements. |
Accessories/ Other requirements | Not requiredCatch for sliding shutterStainless steel, with fixing screws. Connecting boltsFloor guide unit, longFor use with bottom guide channel. Floor guide unit, shortFor use with bottom guide channel. Screw-on guide sliderSliding shutter lockAutomatically engages as the shutters close and can be released from the room interior side only using a pull-cord. Sliding shutter locking deviceDesigned to lock sliding shutters in any position on the track. Available 800 or 1200 mm, insert requirements. |
Standard product features | Configuration: Sliding, manual. |
Product Options | Lower top track/ bottom guide channel: Aluminium, plain anodized, predrilled. Lower top track height: 37 mm. Accessories/ Other requirements: - Sliding shutter lock: This system prevents shutters from opening by themselves, even under the most adverse wind conditions. Other accessories and spares are also available, consult manufacturer for details |
