Hawa Frontslide 140 A

Application

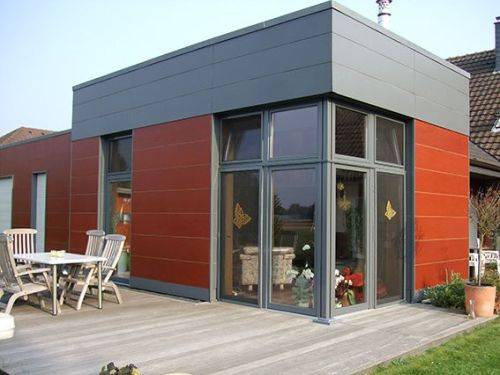

Suitable for facades and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises.
  • Apartment buildings.
  • Low-energy houses.

Description

Hardware for sliding wood, metal or aluminium shutters weighing up to 140 kg. Minimum panel width: 700 mm. Maximum height: 3200 mm. Suitable for shutter thickness of 28–60 mm.

Features and benefits:

  • Manually operated.
  • For attachment to the ceiling or window lintel - the top track screws directly to the loadbearing surface.
  • Aluminium covering screens in either natural anodized or plain finishes ready for custom painting provide aesthetic appeal and are easily clipped on to the inside or outside of the top track.
  • In buildings with an air gap behind the facade, open window shutters can slide out of sight into the space between the building wall and the facade.
  • Manufactured from corrosion resistant materials.
  • Can be moved into any position.
  • Fast and efficient assembly from below and from the facade side.
  • Clip-on covers for inside or outside attachment.
  • High level of wind resistance (Class 6).

Components:

  • Two-wheeled trolley, M12, with plastic wheels.
  • Top fixing plate, stainless steel, with hanger bolt M12.
  • Track stop with adjustable retainer.

Applications:

Suitable for facades and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises.
  • Apartment buildings.
  • Low-energy houses.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Hawa Frontslide 140 A (25130)

Partial set for one sliding shutter.

Top track

3500 mm

6000 mm

Cut to size

Insert requirements.

Bottom guide channel

6000 mm

Cut to size

Insert requirements.

Covering screen

-

Type/ Material

Not required

Aluminium, plain anodized

Aluminium, unanodized

Length

Not required

3500 mm

Plain anodized only.

6000 mm

Cut to size

Insert requirements.

Accessories/ Other requirements

Not required

Catch for sliding shutter

Stainless steel, with fixing screws.

Cover fixings

Required for attaching the covering screens.

Connecting bolts

Floor guide unit, long

For use with bottom guide channel.

Floor guide unit, short

For use with bottom guide channel.

Front cover plates

For ceiling fitting. Available aluminium plain anodized or aluminium unanodized, insert requirements.

Parts for fitting top track cover

Screw-on guide slider

Sliding shutter locking device

Designed to lock sliding shutters in any position on the track. Available 800 or 1200 mm, insert requirements.

Standard product features

Configuration:

Sliding, manual.

Product Options

Top track/ bottom guide channel:

Aluminium, plain anodized, predrilled. The top track can be installed either with or without covering screens.

Accessories/ Other requirements:

Other accessories and spares are also available, consult manufacturer for details.
