HAWA Frontego 30 Matic
Application

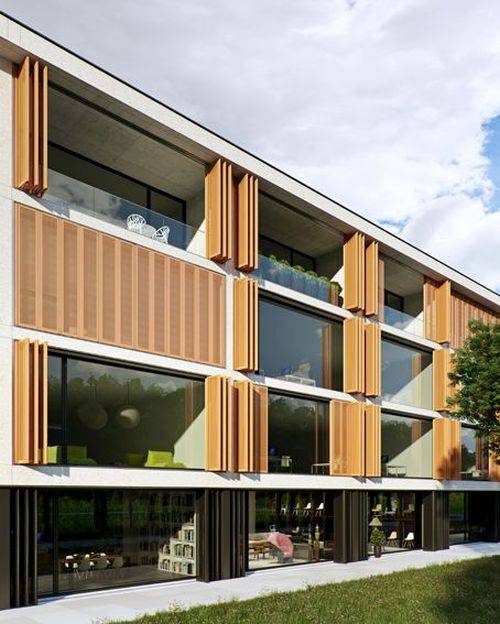

Suitable for facades with a high proportion of glass, and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises.
  • Apartment buildings.
  • Low-energy houses.

The number of shutters per system is limited to six leaves, or three pairs.

Description

Automatic hardware for metal, wood or fabric folding/ sliding shutters with a panel weight up to 30 kg. Panel width: 300–600 mm. Height: 700–3200 mm. Suitable for shutter thickness of 28–32 mm.

Features and benefits:

  • Provides a flush front when closed to conceal the top tracks and bottom guide channels.
  • Freedom of design.
  • A variety of mounting options are available.
  • Automatic operation - the hardware system folds up to six sliding shutters and parks them to one side at 90° to the slide axis.
  • Powered by a brushless electric motor, high-quality transmission system and drive belt. No additional connection cables are required.
  • Wear-resistant and durable.
  • Manufactured from corrosion resistant materials - suitable for coastal areas (tested during a 1000 hour salt spray test in accordance with DIN EN 9227).
  • Tested up to 20 000 cycles.
  • Symmetrical and asymmetrical installations can be combined.
  • Ceiling, window lintel, wall and facade mounting are all possible.
  • Inside or outside attachment are possible.
  • Will stop and reverse on encountering an obstacle.
  • Can be locked at the top and bottom into any position.
  • Robust, burglar-deterrent engineering and self-locking drive.
  • High level of wind resistance (Class 6).
  • CE marked drive unit.
  • Manufactured in accordance with DIN EN 13659 and DIN EN 12453.

Components:

Quantities of each component will vary dependent on design required (some are only applicable to certain types) - consult manufacturer for details.

  • Trolley with top track and bottom guide rollers (stop on the left/ right).
  • Trolley with top track and bottom guide rollers (drive on the left/ right).
  • Trolley with top track and bottom guide rollers, centre left/ right.
  • Stop guide (left/ right).
  • Centre guide (left/ right.
  • Drive guide (left/ right).
  • Holder with assembly cross (for symmetric variant).
  • Assembly plate.
  • Assembly plate for wind support and entry bolt.
  • Bracket with wind support bolt.
  • Bracket with entry bolt at top.
  • Bracket with entry bolt at bottom.
  • Connecting link module.
  • Stop for connecting link module.
  • Stop for bottom guide channel.
  • Retainer plate for toothed belt.
  • Power chain.
  • Countersunk metal screws ST3.5 x 13/ 25 for top entry piece and entry track, set.
  • Lens head metal screws ST3.5 x 13 for bottom entry piece and entry track, set.
  • Countersunk metal screws ST3.5 x 9.5 for power chain retainer profile and cover, set.

Applications:

Suitable for facades with a high proportion of glass, and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises.
  • Apartment buildings.
  • Low-energy houses.

The number of shutters per system is limited to six leaves, or three pairs.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

HAWA Frontego 30/matic, additional set, left (23625)

HAWA Frontego 30/matic, additional set, right (23624)

HAWA Frontego 30/matic, basic set, left (23623)

HAWA Frontego 30/matic, basic set, right (23622)

HAWA Frontego 30/matic, basic set, symmetric (23626)

Type

Non-walk in

Uses two-sided light screen profile and standard hinges.

Walk-in

Uses screen profiles and double hinges.

Installation/ Design

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Drive unit

HAWA Frontego 30/matic

Includes motor, cable, mains adapter and power chain.

Top track

6500 mm

Cut to size

Insert requirements.

Bottom guide channel

6500 mm

Cut to size

Insert requirements.

Toothed belt

50 m

Cut to size

Insert requirements.

Accessories/ Other requirements

Not required

Commissioning box

For servicing and commissioning.

Diagnosis box

For servicing and commissioning.

Drilling jig for assembly plate

Drilling jig for hinges and suspension units

Drilling jig for riveting

Drilling jig for wind support and entry bolt

Entry pieces, shutter width 300–325 mm

Insert requirements.

Entry pieces, shutter width 325–600 mm

Insert requirements.

Entry track, top

6500 mm or cut to size, insert requirements. Aluminium plain anodized.

Entry track, bottom

6500 mm or cut to size, insert requirements. Aluminium plain anodized.

Limit stop with setscrew

Power chain retainer profile

6500 mm or cut to size, insert requirements. Aluminium plain anodized.

Set for folding sliding shutter drive

Includes motor, cable, mains adapter, power chain.

Top track cover

6500 mm or cut to size, insert requirements. Aluminium plain anodized.

Wall connection profile

Various configurations available, consult manufacturer's literature for details and insert requirements.

Standard product features

Configuration:

Sliding/ folding.

Product Options

Type:

- Non-walk in:

Uses the light screen profile. Available aluminium plain anodized or unanodized, 6500 mm or cut to size. Also includes stainless steel, grade 1.4404 (316) hinges. Number of hinges required:

  • Up to 1600 mm: Two.
  • 1601–2400 mm: Three.
  • From 2401 mm: Four.

- Walk-in:

A safety set for walk-in systems is provided, including:

  • Screen profile, aluminium plain anodized or unanodized, 6500 mm or cut to size.
  • Dual-axis profile, plain anodized, 6500 mm or cut to size.
  • Double hinge, left-hand, plain anodized, 6500 mm or cut to size.
  • Double hinge, right-hand, plain anodized, 6500 mm or cut to size.
  • Cover for dual axis hinge.
  • Safety screens, right-and left-hand.

Walk-in and non-walk in systems should not be combined.

Installation/ Design:

Two, four and six leaves are possible in left or right hand applications. The standard sets can also be customized to suit individual project requirements.

Guide width of folding packages (including wall connection) for left-hand or right-hand systems with a maximum shutter thickness of 32 mm:

  • Two panels: 176 mm.
  • Four panels: 408 mm.
  • Six panels: 640 mm.

57 mm needs to be added for right-hand partial systems that are a component of an overall symmetrical or asymmetrical system. Consult manufacturer for further details.

Drive unit:

Moves folding sliding shutters at an average speed of 55 mm/s. The intelligent control system enables shutters to be slowly accelerated up to an appropriate speed, and then gently decelerated and stopped. This keeps noise levels down and puts less strain on drive components. Consult manufacturer for further details.

Top track:

Aluminium, plain anodized, undrilled. Attachment points are required every 2 m. Designed for ceiling or wall mounting.

Bottom guide channel:

Aluminium, plain anodized, undrilled. Attachment points are required every 2 m. Designed for either wall mounting or countersinking in the floor.

Accessories/ Other requirements:

Other accessories, including surface treatments and spares are also available, consult manufacturer for details.
