Hawa Frontal 25 GK Forslide FS

Application

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public office areas.
  • Shelving and cabinets.
  • Design options in glass or wood.

Fitting can be used in combination with ESG float glass, ESG sati-nato glass, ESG with ceramic screen printing, double mirror or laminated glass. (ESG: Tempered safety glass). Recommended adhesive: PENLOC TYP GTI / GZH.

With all-glass doors, accurate planity must be assured. With double door systems, at the glass production, the glass doors should be tempered in pairs.

Description

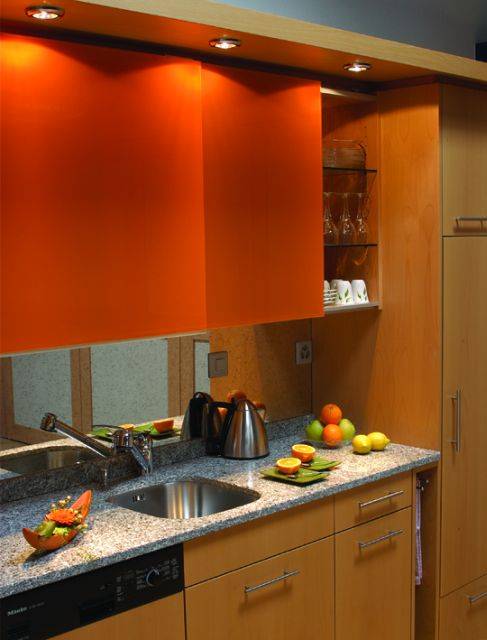

Sliding track designed for two or three all-glass doors weighing up to 25 kg each in front of the furniture. The frameless system with the Forslide design allows elegant glass or mirror fronts to glide in front of the cabinet as though they were floating. No cabinet processing is required with the Hawa Frontal 25 G FS, meaning that the system can also be retrofitted. Four-point guidance and four-point stop system provide reliable running characteristics.

Features and benefits:

  • All-glass doors with minimum door spacing.
  • Forslide design: Sliding panels are installed forward of the supporting frame/ structure.
  • Easy door installation with Allen key.
  • Easy height adjustment with Allen key.
  • Freely adjustable end stopper with and without retainer.
  • Optional soft closing.

- Suitable for use with door panels:

  • Panel thickness: 6 mm.
  • Maximum panel width: 800 mm.
  • Maximum panel height: 2000 mm.
  • Maximum panel weight: 25 kg.

Components:

System: Tracks (clip-on/ screw on), for two or three glass doors.

Applications:

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public office areas.
  • Shelving and cabinets.
  • Design options in glass or wood.

Fitting can be used in combination with ESG float glass, ESG sati-nato glass, ESG with ceramic screen printing, double mirror or laminated glass. (ESG: Tempered safety glass). Recommended adhesive: PENLOC TYP GTI / GZH.

With all-glass doors, accurate planity must be assured. With double door systems, at the glass production, the glass doors should be tempered in pairs.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Hawa Frontal 25 GK Forslide FS

Hawa Frontal 25 GK Forslide FS Soft Closing

Installation/ Design

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Dual running track

2500 mm

3500 mm

6000 mm

Cover profile

As running and track guide

2500 mm

6000 mm

Fixing

As standard

Fixing with connecting bolt

Accessories/ Other requirements

See 'Options' below and insert requirements.

Standard product features

Dual running track:

Anodized aluminium.

Cover profile:

Anodized aluminium, top/ bottom.

Product Options

Accessories/ Other requirements:

Other accessories and spares are also available, consult the manufacturer for details.
