Sliding door mechanism.

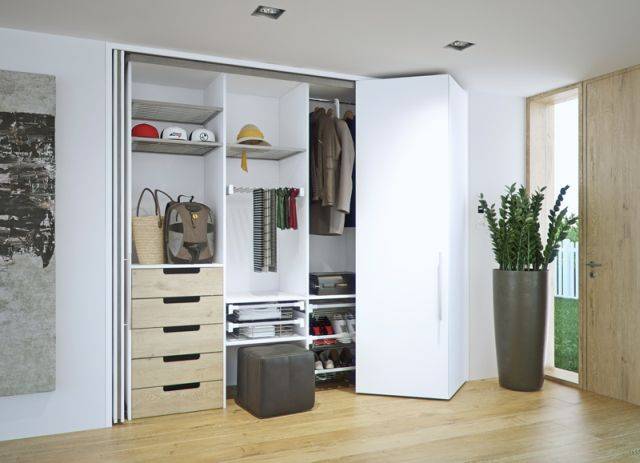

Folding and pivot sliding system for bi-folding cabinet pocket doors. Flush cabinet fronts can be fully opened from end to end to give complete access to cabinet contents but are also completely concealed once doors are opened.
Features:
Features | Based on the HAWA-Concepta the system is for bi-folding pocket doors Two pairs of folding doors enable cabinet fronts up to 2800 mm in width to be stored in the cabinet Flush cabinets open fully end to end Two doors can be folded and pushed into the side of the cabinet body or wall recess Floor to ceiling designs are possible to implement as walk-in cabinets for home office, kitchen, utility or bathroom Semi-overlay; overlays the cabinet top and bottom, but inset to the side panel Recesses without cabinet body installations are feasible The folding panels can be pushed back into the recess to be fully flush with the external panel Minimal slide-in loss of only 73 mm in the cabinet depth and recess width only 110 mm Adjustments can be made at the front of the system. Aluminium fascia conceals the hinges when the folded door is in position in the pocket Unique scissor technology prevents any jamming when folding and sliding Allows flexibility of design as can be combined with the hinges door variant HAWA-Concepta 25/ 30/ 50 (door reveal 2–5 mm) |
Uniclass 2015 | |
CAWS | P21/10 Quantities and locations P21/350 Door track and running gear |
Product Reference | Hawa Folding Concepta 25 |
Fitting set | For door height 1250–1850 mm left hand, 408.30.006For door height 1250–1850 mm right hand, 408.30.007For door height 1851–2600 mm left hand, 408.30.008For door height 1851–2600 mm right hand, 408.30.009 |
Accessories | NoneDoor positioning profile, 408.30.961Magnetic centring device, 408.30.229Reinforcement profile and plate, 408.30.970 |
Product Options | Door sizes:
|
