Hawa Creation 25 GAK H IS/FS

Application

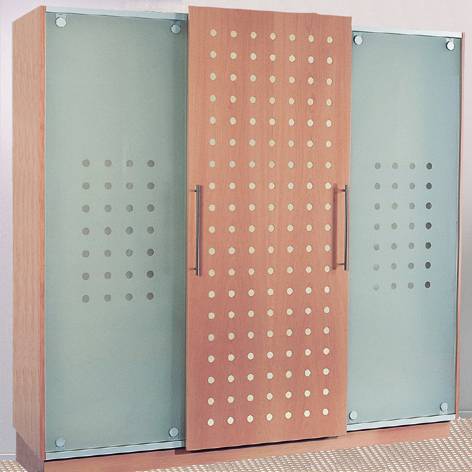

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public office areas.
  • Cabinets.
  • Sideboards.

Fitting can be used in combination with ESG float glass, ESG satinato glass, ESG with ceramic screen printing, double mirror or laminated glass. (ESG: Tempered safety glass). Recommended adhesive: PENLOC TYP GTI / GZH.

Description

Sliding track designed for glass and wooden doors weighing up to 25 kg each. The track is attached to the base and the top panel from the front using the Hawa clipping technology, hiding all fastening components.

As no cabinet preparation is required, this sliding solution can also be retrofitted. A clip profile on the side can also give the furniture item frame-like characteristics.

Features and benefits:

  • Inslide/ Forslide mix: Panels can be installed within and/ or forward of the supporting frame/ structure.
  • Aesthetic appearance.
  • No expensive cabinet construction required.
  • Combined running and guide track.
  • Continuous height adjustment.
  • Freely adjustable stopper with retainer.

- Suitable for use with door panels:

  • Panel thickness: 6/ 19 mm.
  • Maximum panel width: 1200 mm.
  • Maximum panel height: 2100 mm.
  • Maximum panel weight: 25 kg.

Components:

System: Clip-on track 31/ 28 mm for wooden and glass doors. Inslide-Forslide configuration.

Applications:

Suitable for sliding door combinations in locations such as:

  • Private living areas.
  • Private and public office areas.
  • Cabinets.
  • Sideboards.

Fitting can be used in combination with ESG float glass, ESG satinato glass, ESG with ceramic screen printing, double mirror or laminated glass. (ESG: Tempered safety glass). Recommended adhesive: PENLOC TYP GTI / GZH.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Hawa Creation 25 GAK H IS/FS

Hawa Creation 25 GAK H IS/FS Soft Closing

Installation/ Design

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Running track

2500 mm

3500 mm

6000 mm

Vertical profile

As running and track guide

2500 mm

3500 mm

6000 mm

Accessories/ Other requirements

See 'Options' below and insert requirements.

Standard product features

Running and track guide:

Anodized aluminium.

Vertical profile:

Anodized aluminium.

Safety clip:

Die-cast, grey, for vertical profile (every 400 mm).

Product Options

Accessories/ Other requirements:

Other accessories and spares are also available, consult the manufacturer for details.
