HAWA-Concepta 25/ 30/ 50, For Timber Doors
Description

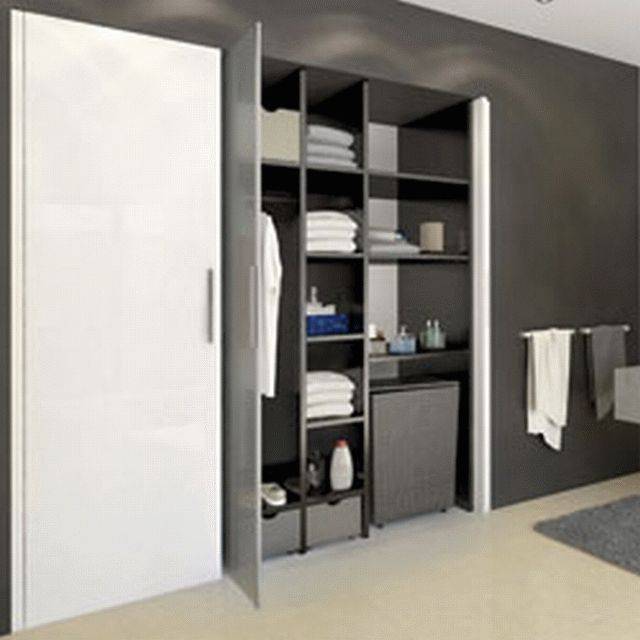

Pivot sliding system without bottom channel, for high quality applications, including walk in cabinets. The system is unhanded, and adjustments are made from the front. It is ideal for contract furniture applications in residential and large commercial projects such as hotels, shops and offices.

Door range:

  • Height: 1250–2850 mm.
  • Thickness: 19–50 mm.
  • Weight: 25–50 kg.
  • Width: 300–900 mm.
  • Cabinet internal depth:

See manufacturer's brochure for dimensions, relating to door width.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

408.30.000 HAWA-Concepta 25, for Timber Doors

Fitting set for one panel.

408.30.001 HAWA-Concepta 30, for Timber Doors

Fitting set for one panel.

408.30.002 HAWA-Concepta 50, for Timber Doors

Fitting set for one panel.

Accessories

None

408.30.090 Connecting bracket

600 mm.

408.30.980 Door handle

400 mm.

Product Options

Door range:

- 408.30.000:

  • Height: 1250–1850 mm.
  • Weight (maximum): 25 kg.
  • Width (maximum): 577 mm.

- 408.30.001:

  • Height: 1851–2500 mm.
  • Weight (maximum): 30 kg.
  • Width (maximum): 827 mm.

- 408.30.002:

  • Height: 1900–2850 mm.
  • Weight (maximum): 50 kg.
  • Width (maximum): 827 mm.
