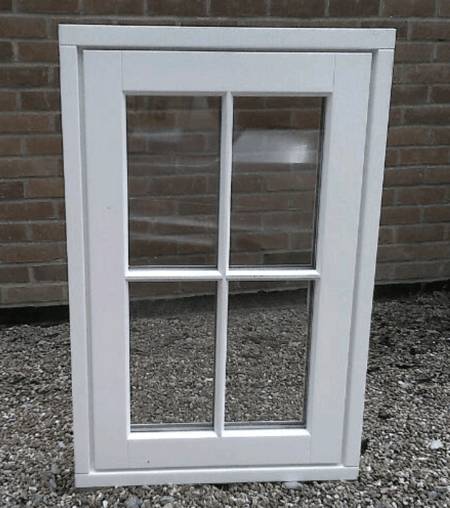

Hathaway - Traditional Flush Casement Timber Window - Flush Casements
Verified by manufacturer over a year ago
UL Certified
Certificate type
FSC
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Secured By Design
Certificate type
Timber flush casement windows.
Application
Suitable for residential applications.
Description
Timber flush casement windows.
Arden windows and doors are manufactured in the UK and are supplied factory finished and fully glazed. Products fully conform to current British Building regulations and FENSA standards.
Features and benefits:
- Life expectancy 60+ years.
- Sustainably sourced engineered timber.
- Softwood or hardwood.
- Advanced environmentally responsible paint systems.
- Fully factory finished and glazed.
- Top hung / Side hung / Shaped Fully reversible (Top Swing).
General information
Color | White |
Finish | Painted Stained |
Material | Wood |
Shape | Rectangle |
Warranty description | Ten year Guidance for specification option: Window guarantee. 35 year Guidance for specification option: Fungus and insect guarantee. |
Uniclass | |
CAWS | L10/33 Proprietary windows L10/210 Wood windows |
Specification data - Wood window units
Standard | To BS 644. |
Dimensions and configurations | Side hung open out.Top hung open out.Fixed casements.Bottom hung open in.Manufacturer guidanceShaped and curved frames, multi-light windows, and combination frames are available. Insert requirements or refer to a drawing. |
Product performance | |
Weather performance | |
Air permeability | To BS EN 1026:2000, 600 Pa.Guidance for specification option: Class 3. |
Watertightness | To BS EN 1027:2000, 250 Pa.Guidance for specification option: Class 6A. |
Resistance to wind load | To BS EN 12211:2000, 2000 Pa.Guidance for specification option: Class 5. |
Durability | |
Operation and strength characteristics | To BS 6375-2. |
Safety | |
Security level | None.To Secured by Design standard.To PAS 24. |
Environmental | |
Acoustic performance rating | Up to 42 dB. |
Thermal | |
Whole window U-value | 1.0–1.6 W/m2K. |
Frame | |
Standard | To BS EN 942. |
Wood species | Engineered Softwood.Hardwood.Accoya. |
Chain of custody | FSC. |
Appearance class | For opaque finishing: to BS EN 942, J10 for drip mouldings and the like. J40 or better for all other members. |
Finish as delivered | Remmers preservative primer, mid-coat and top-coat.Manufacturer guidanceArden Windows Ltd offers a range of standard RAL colours and stains including dual colour options. Consult manufacturer and insert requirements. |
Preservative treatment to wood components | Induline GW-306. |
Ventilator | Trimvent® Select Xtra R16 4600EA.Guidance for specification option: Equivalent Area – 4600 mm2 per vent. |
Glazing or infill | |
Requirements | Factory glazed with 28 mm double glazed units comprising 4 mm float, 20 mm warm edge argon filled cavity, 4 mm low E.Manufacturer guidanceFurther glazing options are available on request: Triple Glazing / Acoustic Glazing / Self-Cleaning / Solar Control / Laminated / Toughened / Obscure / Acid Etched / Sandblasted / Switchable Glass / Enamelled. |
Hardware | Manufacturer's standard.Bespoke.Guidance for specification option: Traditional and contemporary hinge and handle options are available. Consult manufacturer and insert requirements or refer to a schedule. Manufacturer guidanceStandard or bespoke hardware and accessories in a range of colour options. Consult manufacturer and insert requirements. |
Operation | |
Type | Manual.Mechancial remote opening system.Electronic remote opening system. |
Glazing bars | None. Plant on bars. Solid bars. Georgian fret. Lead. |
Hinges | Manufacturer's standard. Means of escape egress hinges. Easy clean hinges. Child proof restrictor hinges. |
Accessories | None. Face fitted restrictors. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
UL Certified
Certificate for the UL Mark – Enhanced Security Performance of Windows PAS 24:2016
FSC
FSC Certificate
ISO 14001 Environmental Management Systems
ISO14001:2015 - Environmental Management System
ISO 9001 Quality Management
ISO9001:2015 - Quality Management System
Secured By Design
Secured by Design Certification
