Hardie® Backer Tile Backerboard - Backer Board

Verified by manufacturer 6 months ago

Hardie® Backer 6 mm Tile Backerboard

James Hardie Building Products Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

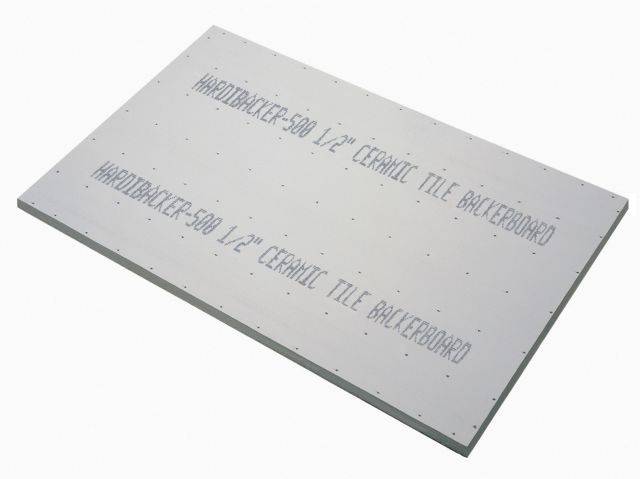

A cement backerboard for tile and stone to be used as a replacement for plasterboard or plywood. Available in 6 mm and 12 mm thickness.

Jump to:
BIM object icon
+44(0)1213113480 Website

Application

Can be used on walls, floors and worktops. It is intended as internal substrate for tiles in residential and commercial wet areas in both new build and renovation and can be used in domestic steam rooms.

Description

Cement based water resistant tile backer board which can be used on walls, floors and worktops. Available in 6 mm and 12 mm thickness.


Features and benefits:

  • Quick and easy installation.
  • Advanced fibre cement technology means no cracked tiles or call backs.
  • Robust and rigid to provide a dimensionally stable, flat surface for tiling.
  • Takes up to 100 kg/m² of tile hanging weight.


Standards:

  • Conforms to Category C Class 2 of BS EN 12467.
  • Classified as non-combustible: A1-s1, d0 according to BS EN 13501-1.

General information

Color

Grey

Material

Cement

Guidance for specification option:

Portland cement, milled sand, cellulose fibres, water and selected additives.

Shape

Rectangle

Length

1200 mm

Width

800 mm

Height

6 mm

12 mm

Manufacturer guidance

Thickness.

Warranty description

15 year

Uniclass

Pr_25_71_11_25 Fibre-reinforced cement boardsPrimary

CAWS

H92/120 Rainscreen cladding

M40/27 Intermediate substrate

M40/470 Intermediate substrate

Specification data - Fibre-reinforced cement boards

Standard

To BS EN 12467.

Fire rating

To BS EN 13501-1, A1-s1, d0.

Guidance for specification option:

Non-combustible.

Weather resistance

To BS EN 12467, category C.

Bending strength

To BS EN 12467, class 2.

Sheet size

-

Nominal thickness

6 mm.

Length

1200 mm.

Width

800 mm.

Edges

Square.

Colour

Natural grey.

Weight

9 kg.

CompressiveStrength

45 MPa.

Flexural strength

12 MPa.

Maximum weight

200 kg/m².

Guidance for specification option:

Highest flexibility and up to 3x the compressive strength of competitive boards.

Manufacturer guidance

Maximum tile weight.

Accessories

Not required.

Fibatape alkaline resistant joint tape.

HardieBacker® score & snap knife.

HardieBlade® saw blades: 160, 190, 254 or 305 mm.

Guidance for specification option:

Insert requirement.

Screws for metal frames.

Show more

Sustainability data

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

3

Revit

Revit 2016

3

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA 04/4100

EPD

EPD

Hardie® Backer 12mm Environmental Product Declaration

EPD

EPD

Hardie® Backer 6mm Environmental Product Declaration

Literature

Hardie® Backer Installation Brochure

Hardie® Backer Installation Brochure

Case studies

Hardie® Backer - Hole in One at Shifnal

Hardie® Backer - Hole in One at Shifnal

Hardie® Backer - Weight Matters

Hardie® Backer - Weight Matters
