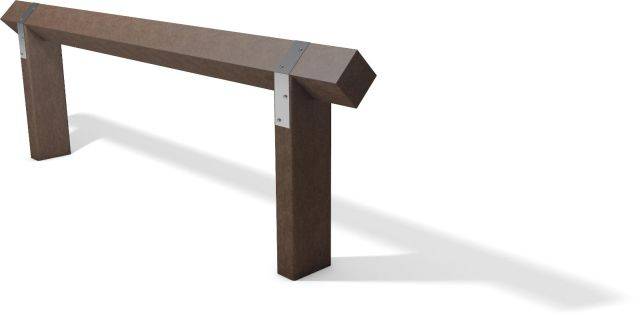

hanit® ultra post and cross-member barrier.
The hanit® Ultra barrier system consists of square posts and cross-members. The post heads are pre-cut to easily accommodate the cross-members and there are optional galvanized strips to secure everything in place.
Features and benefits:
Uniclass 2015 | |
CAWS | Q41/135 Proprietary protective barriers |
Product Reference | hanit® Ultra Barrier |
Standard | Consult manufacturer |
Posts | Support post 100 x 100 mm, with V-shaped headLength: 1.25 m. Support post 100 x 140 mm, with V-shaped headLength: 1.50 m. |
Section | 48 x 165 mm40 x 197 mm60 x 197 mm |
Post foundations | Consult manufacturer |
Rails | Cross-bar 80 x 80 mm, 3 m longCross-bar 100 x 100 mm, 1.5 m longCross-bar 100 x 100 mm, 1.75 m longCross-bar 100 x 100 mm, 3.0 m long |
Site applied finishes | Consult manufacturer |
System accessories | Not requiredGalvanized strips |
Colour | BlackBrown |
