Hand Sanitiser Dispenser - Full Motion - Automatic Sanitiser Gel Dispensers

Verified by manufacturer 1 month ago

Savortex Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

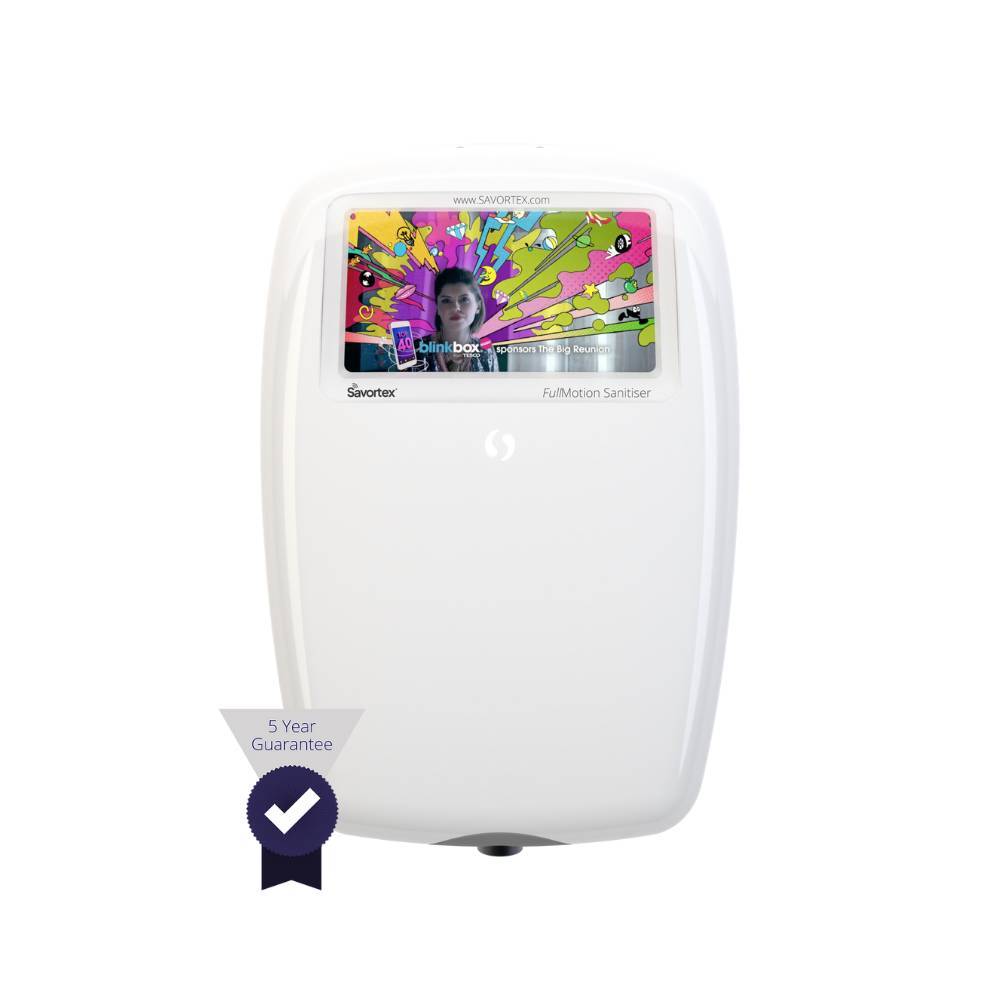

Smart automatic hand sanitiser gel dispenser with 5.7" HD screen.

Jump to:
BOS
+44 (0)207 7121480 Website

Application

Washrooms, Hygienic Washrooms, Toilets, Commercial Washrooms, Commercial Toilets, Changing Rooms, Disabled Toilets, Baby Changing Toilets

Description

Smart automatic hand sanitiser gel dispenser with 5.7" HD screen.


Features and benefits:

  • Inbuilt 5.7" HD video screen for compelling messaging.
  • Remotely informs managers when liquid is running low and displays usage information in real-time on your dedicated hygiene dashboard.
  • Uses in-built RFID sensors and can identify who is or isn’t sanitising and discreetly inform users to sanitise if they haven’t via the Savortex® app and notify managers of a hygiene risk via the hygiene portal, in real-time, to stop the spread of infection and save lives.
  • Wall mounted.
  • Non-drip nozzle with 1.8 L dispersal tank.
  • Easy refill technology.
  • Intelligent non-contact infrared hand detection sensors.
  • Antimicrobial additive to finish for protection against degradation and bacteria.
  • Choice of three colours.
  • Part of the Video Connected range - see also AdDryer hand dryer (specified separately).
  • Three-year parts guarantee as standard.
  • Contactless dispensing, preventing cross-contamination between the user and the equipment.
  • Improved operational efficiency.
  • Mains or battery power.
  • EMC: Complies with the Electromagnetic Compatibility Directive.
  • Complies with EN 60335-1:2012 +A11:2014 +A13:2017 +A1:2019 +A14:2019 +A2:2019.
  • Rated: 220–240 V a.c. 10 W, 50 Hz.
  • In-built sensors report real-time energy usage and footfall data to a fully customised online dashboard for remote washroom management & CSR reporting
  • Internet-enabled sensors inform cleaners when to inspect washrooms based on footfall statistics
  • in-built RFID sensors, identify who is or isn’t sanitising, discreetly informing users to sanitise if they haven’t via the SAVORTEX® app and notify managers of a hygiene risk via the SAVORTEX® hygiene portal, in real-time, helping to stop the spread of infection and save lives.

General information

Color

White

Silver

Black

Finish

Anti-microbial

Material

Acrylonitrile butadiene styrene (ABS)

Steel

Shape

Other

Length

95 mm

Guidance for specification option:

Depth.

Width

202 mm

Height

328 mm

Warranty description

Three year

Guidance for specification option:

Parts.

One year

Guidance for specification option:

Labour.

Manufacturer guidance

Consult manufacturer for details.

Uniclass

Pr_40_70_22_35 Hand sanitizer dispensersPrimary

CAWS

N13/482 Hand-cleansing gel dispensers

Specification data - Hand sanitizer dispensers

Form

Wall-mounted.

Materials

-

Body

ABS plastics with steel back plate.

Guidance for specification option:

  • Front cover: Recyclable ABS.
  • Inner chassis: Recyclable ABS.
  • Manifold front/ back/ nozzle: Recyclable ABS.
  • Back plate: Steel.
  • Net laden weight: 2 kg.

Finish and colour

White.

Brushed Nickel.

Matte Black.

Operation

Automatic.

Guidance for specification option:

Intelligent non-contact infrared hand detection sensors.

Integral accessories

Non-drip nozzle with 1.8 L dispersal tank.
5.7" HD video screen.
Integrated 2.4/ 5 GHz Wi-Fi and/or ARM® GSM connectivity.
Integrated UHF RFID reader.
RFID tags.

Guidance for specification option:

SAVORTEX® gateway transmitter:

  • Dispensers transmit data through the SAVORTEX® central gateway with a range between 150–300 metres (determined on site).
  • The SAVORTEX® gateway requires mains power and internet connection (wired ethernet, wireless or 4G) and can receive data from up to 50 dispensers for each gateway.
  • Integrates with external building management systems using Intel® smart connect technology.

Electrical supply

Mains.

Guidance for specification option:

Power consumption: <1 W (standby); <10 W (in use).

EMC: Complies with the Electromagnetic Compatibility Directive.

Complies with EN 60335-1:2012 +A11:2014 +A13:2017 +A1:2019 +A14:2019 +A2:2019.

Rated: 220–240 V a.c. 10 W, 50 Hz.

Battery.

Guidance for specification option:

Powered by rechargeable lithium-ion batteries, 20 000–30 000 uses per charge.

Manufacturer guidance

IPX1 Class I complaint.

Dimensions

328 x 202 x 95 mm.

Guidance for specification option:

Height x width x depth.

Connectivity

- The inbuilt Internet-enabled sensor tracks sanitiser health and usage information in real-time, remotely informing cleaners when to clean based on footfall metrics to deliver the most hygienic washrooms.
- Uses a 2G/3G or 4G SIM card to communicate data to a secure cloud server.
- Comes with a customizable Washroom Portal and a customizable Marketing Portal.

Installation

First fix mounting bracket supplied, allowing wall mounting and electrical connection to take place during first fix.
The sanitiser can be installed at a later date on a plug-and-play system.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

6.16kg (approx.) of CO2e to mould the casing and assemble

Recyclability

End of Life - all parts are recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %
