Hammersmith Cast Iron Bollard
Description

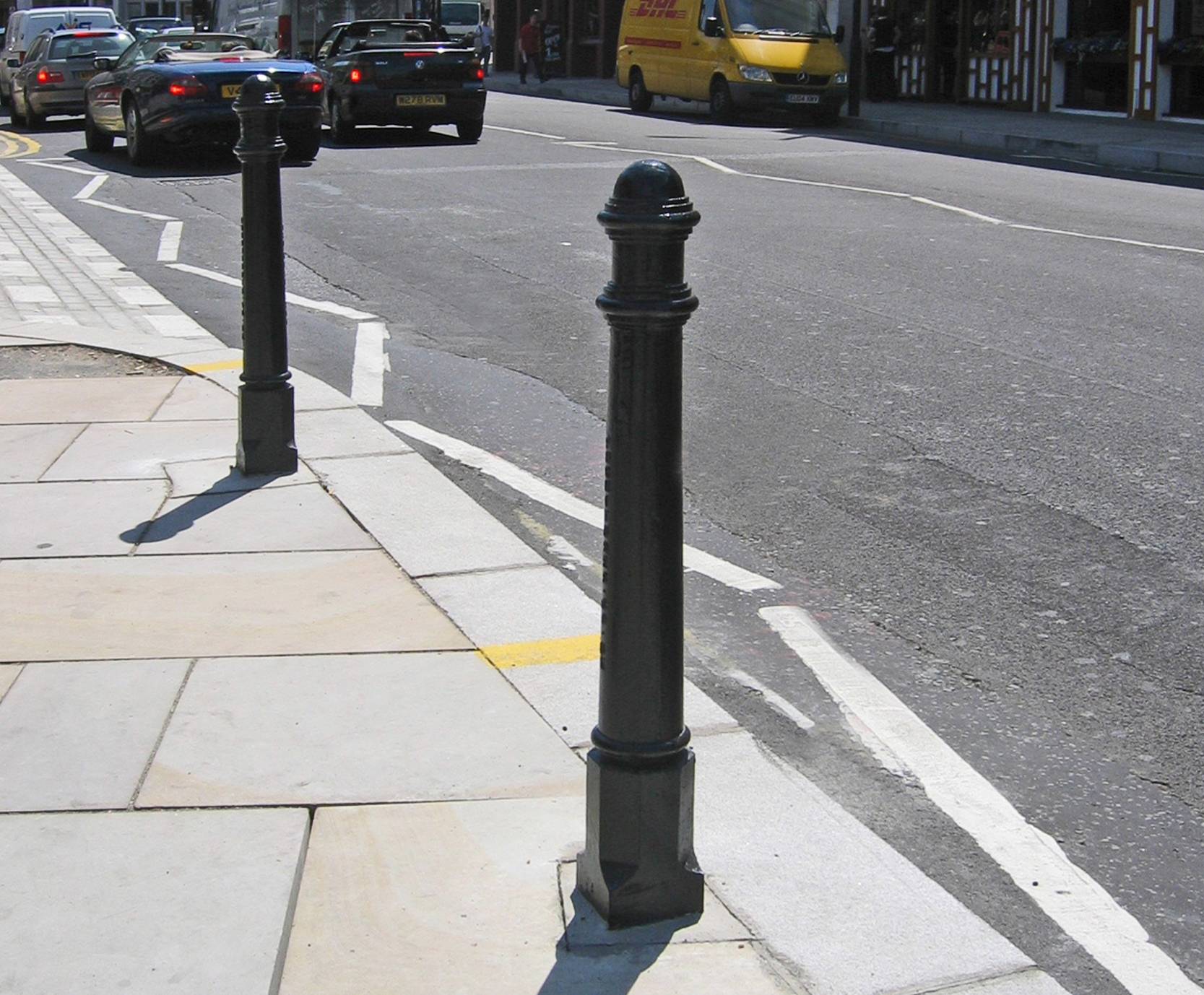

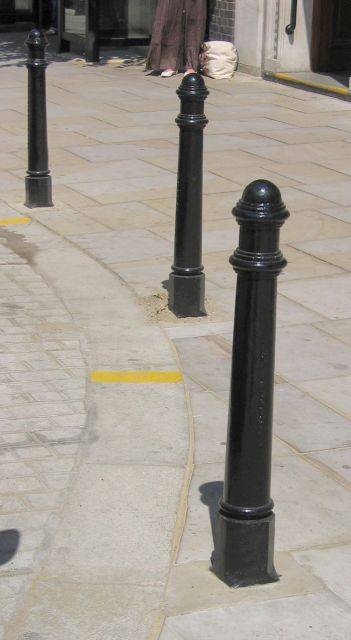

HAM500 Hammersmith cast iron bollards have a classic design, with domed top and decorative rings. When installed over 1000 mm, Hammersmith bollards can aid the visually impaired and assist with the requirements of BS 8300 and adherence to the Disability Discrimination Act.

General information
Finish

Primed. It is recommended that top coats are applied on site after installation on primed products

Uniclass 2015
Pr_20_76_08_14 Cast iron bollardsPrimary
Specification data - Cast iron bollards
Product Reference

HAM 500

Cast iron.

Accessories

None

Crest/ logo personalization

Highlighted rings

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Technical characteristics:

  • Above ground: 1000 mm.
  • Below ground: 300 mm.
  • Section: 130 mm square.
  • Weight: 38 kg.

Finish:

Primed. It is recommended that top coats are applied on site after installation on primed products.
