Application

Suitable for playgrounds or venues which hold outdoor events, providing large areas of cover from the sun or bad weather.

Description

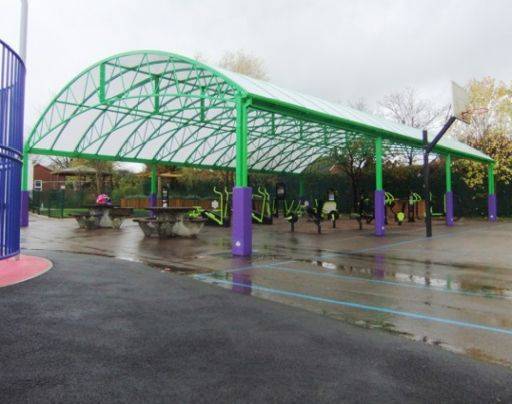

Large free-standing canopy which can span up to 11 m in width and has an unlimited length, for large areas which require cover from the weather such as outdoor dining areas or open air seating areas.


It is durable, hard wearing and is ideal for many organisations within both the public and private sectors including education, retail, leisure and healthcare. The canopy has a life expectancy of 25 years.


Weather resistance:

During the manufacture of the polycarbonate panels, a layer of UV absorber is co-extruded on both sides which forms a barrier giving high UV protection from the sun.

General information

Color

Any RAL colour

Clear

Polycarbonate available in opal or clear

Finish

Galvanized

Powder-coated

Material

Steel

Polycarbonate

Roof - Available in 5mm solid polycarbonate or 16mm structured

Aluminium

Shape

Rectangle

Square

Length

Bespoke

Unlimited.

Width

11000 mm

Height

mm

Insert requirement.

WarrantyDescription

Up to 25 year life expectancy

25 year

Up to 25 year life expectancy

Uniclass

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/330 Canopy

Product range

Canopies

Specification data - Open-sided shelters

Shelter description

Free standing canopy.

Dimensions

-

Plan size

[-].

Insert requirement, width available up to 11 m. Length available unlimited.

Height

[-].

Insert requirement.

Frame

-

Material

Steel.

Main frame constructed from 150 x 100 x 5 mm hollow section, roof bars constructed from 50 x 50 x 2.5 mm box section.

Finish

Galvanized.

Galvanized and powder coated.

Powder coated.

Colour

Not applicable.

For galvanized only.

RAL 3000 Flame Red.

RAL 5005 Signal Blue.

RAL 5010 Gentian Blue.

RAL 5012 Light Blue.

RAL 6001 Emerald Green.

RAL 6005 Moss Green.

RAL 7001 Silver Grey.

RAL 7016 Anthracite Grey.

RAL 8007 Fawn Brown.

RAL 9003 Signal White.

Standard.

RAL 9005 Jet Black.

RAL 9006 White Aluminium.

Special order.

Insert requirement.

Roof covering

Structured polycarbonate, 16 mm thick.

High UV protection.

Rainwater drainage

Guttering and downpipes are fitted as standard.

Accessories

None.

Safety barriers.

Seating.

Side fills.

Signage.

Water butt.

Colour

Clear.

For polycarbonate only, 64% light transmission.

Opal.

For polycarbonate only, 33% light transmission.

Environmental information

Contains Red List materials

No

Country of material origin

Various

-

Country of product manufacture

United Kingdom

Recyclability

50%

BIM objects

Platform Compatible Version
IFC
-

4

Revit
-

4
