HALSPAN® R9000 Series Power Door Closer

Application

Suitable for universal application to both left and right-handed doors, and can be used in the following areas:

  • Schools.
  • Public buildings.
  • Offices.
  • Hotels.
  • Hospitals.

Description

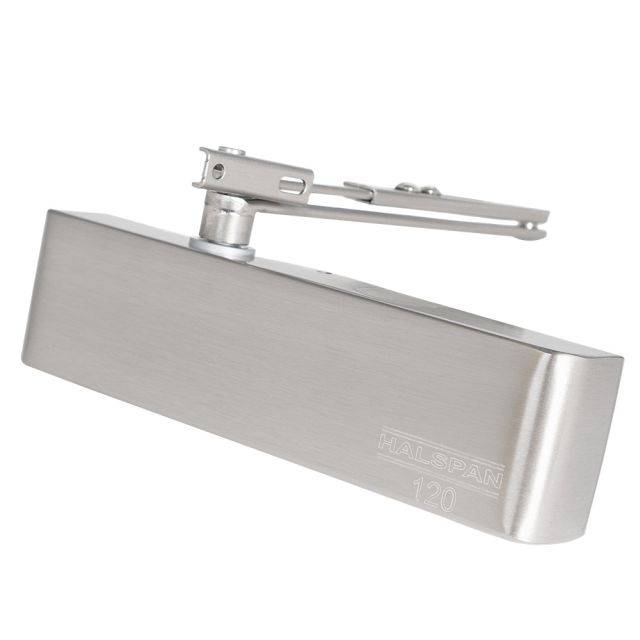

Slimline overhead power door closer from the R9000 range.

Features and benefits:

  • Heavy duty.
  • Includes a range of adjustable features including closing speed, latch action, delayed action and back check.
  • CE marked, and tested to BS EN 1154: 1996, EN 1634-1: 2008 and BS 476-22: 1987.
  • Meets the requirements of Approved Document M and BS 8300.

Applications:

Suitable for universal application to both left and right-handed doors, and can be used in the following areas:

  • Schools.
  • Public buildings.
  • Offices.
  • Hotels.
  • Hospitals.

General information

Color

RAL colour as required

Features

Adjustable closing & latchin speed, adjustable back check, adjustable spring strength, adjustable delayed action

Finish

SSS, PSS PVD brass, RAL colours

Material

Aluminium, steel, stainless steel

Shape

Rectangle

Size

55 x 236 x 38 mm

WarrantyDescription

25 year guarantee

Uniclass 2015

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Overhead door closers

P21/410 Overhead door closers

Specification data - Controlled door closers

Product Reference

HALSPAN® R9000 Series Power Door Closer

Type

R30 (CLR-BSS-100)

30 minutes fire rated.

R60 (CLR-BSS-101)

60 minutes fire rated.

R90 (CLR-BSS-102)

90 minutes fire rated.

R120 (CLR-BSS-103)

120 minutes fire rated.

Standard product features

Size:

236 x 55 x 38 mm.

Mechanism:

Rack and pinion.

Door width:

  • 830 mm (minimum door width to enable compliance with BS 8300).
  • 1250 mm (maximum permitted door width).

Maximum door weight:

110 kg.

Opening angle:

180°.

Product Options

Type:

Consult manufacturer for details.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
