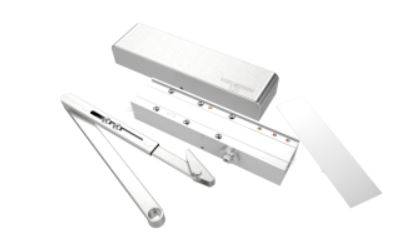

HALSPAN® R6000 Eco‐closer
Eco-closer R30/R60/R90
Application
Suitable for universal application to both left and right-handed doors.
Description
Multipurpose, variable power overhead door closer from the R6000 range.
Features and benefits:
- Heavy duty.
- Includes a range of adjustable features including closing speed, latch action, delayed action and back check.
- Available in a range of finishes.
- Includes parallel arm bracket.
- 25-year guarantee.
- CE marked, and tested to BS EN 1154: 1996, EN 1634-1: 2008 and BS 476-22: 1987.
- Meets the requirement of Approved Document M and BS 8300.
Applications:
Suitable for universal application to both left and right-handed doors.
General information
Color | Gold, silver |
Features | Adjustable closing & latchin speed, adjustable back check, adjustable spring strength |
Finish | SSS, PSS, PVD brass, RAL colours |
Material | Aluminium, steel, stainless steel |
Shape | Rectangle |
Size | 59 x 231 x 42 mm 59 x 248 x 24 mm |
WarrantyDescription | 25 years |
Uniclass 2015 | |
CAWS | P21/12 Overhead door closers P21/410 Overhead door closers |
Product range |
Specification data - Controlled door closers
Product Reference | HALSPAN® R6000 Eco‐Closer |
Type | R30 (CLR-AGN-100)30 minutes fire rated. R60 (CLR-AGN-101)60 minutes fire rated. R90 (CLR-AGN-102)90 minutes fire rated. |
Colour/ Finish | - |
Cover | Consult manufacturer and insert requirements. |
Arms | Consult manufacturer and insert requirements. |
Standard product features | Size: 248 x 59 x 42 mm. Mechanism: Rack and pinion. Maximum door width: 1100 mm. Maximum door weight: 80 kg. Opening angle: 180°. |
Product Options | Type: Consult manufacturer for details. |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 1 | 2.1 |
 Revit | Revit 2017 | 1 | 2.1 |
