HALSPAN® Optima 54 mm Internal Fire Rated Door Blank - Double Acting Double Doors

HALSPAN® Optima 54 mm Internal Fire Rated Door Blank - Double Acting Double Doors

Halspan Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

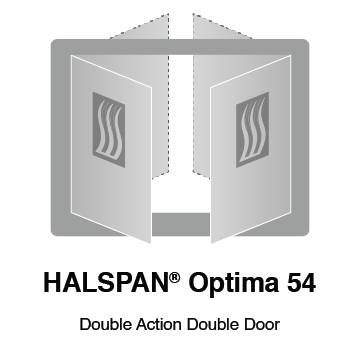

Double Acting Double Doors

Jump to:
+44 (0)330 0563836 www.halspan.com
Application

For interior applications.

Description

Door blanks with a fire rating of 60 minutes.

Features and benefits:

  • Produces high quality, high strength doors.
  • Suitable for receiving veneer, laminate or paint finishes - consult manufacturer for details.
  • Tested to comply with PAS 24.
  • Rebates can be incorporated for double door configurations, and the design can be altered to include feature grooves if required. Consult manufacturer for details.
  • FSC® certified.

Tested in accordance with:

  • BS 476-22: 1987.
  • BS EN 1634-1: 2000/ 2008.
  • BS EN 1363-1: 1999.
  • DD 171.
  • EN 1191.
  • EN 1192.
  • EN 947.
  • EN 949.
  • EN 950.

Applications:

For interior applications.

General information

Size

Finish

Paint, timber veneers, PVC, plastic laminates or cellulosic and non-metallic foils

Color

Brown

Features

3-layer particle board

Material

3 layer particleboard

Shape

Rectangle

Uniclass 2015

Ss_25_30_20_25 Doorset systemsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

Specification data - Doorset systems

Product Reference

Optima 54 mm Fire Rated Interior Grade Door Blanks

Configuration

Double Acting Single Door (DASD)

Latched Single Acting Double Door (LSADD)

Latched Single Acting Single Door (LSASD)

Unlatched Single Acting Double Door (ULSADD)

Unlatched Single Acting Single Door (ULSASD)

Size

See 'Options' below and insert requirements.

Frame

Hardwood

Glazing

Required

Consult the Halspan Technical Support manual for available options and insert requirements.

Not required

Seals/ inserts

Consult the Halspan Technical Support manual for details.

Hinges

Ball bearing butt hinge

Fixed pin hinge

Journal supported lift-off hinge

Washered butt hinge

Locking

Consult the Halspan Technical Support manual for further details and insert requirements.

Lipping

Consult the Halspan Technical Support manual for further details and insert requirements.

Accessories/ Other requirements

A range of ironmongery and accessories is available. Consult the Halspan Technical Support manual for further details.

Standard product features

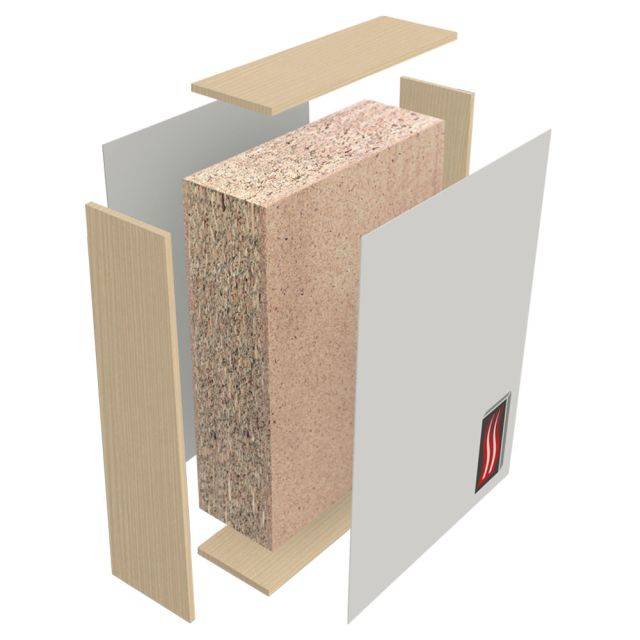

Door leaf:

- Material:

Three layer particleboard.

- Thickness:

54 mm.

- Weight:

33.5 kg/m².

- Density:

620 kg/m³.

- Thermal transmittance (U-Value):

1.8 W/m²K.

- Moisture content:

6–10%.

Acoustic performance (to BS EN ISO 10140-2: 2010):

  • Single doors: Unglazed: 34 dB (Rw); glazed: 35 dB (Rw).
  • Double doors: Unglazed: 33 dB (Rw); glazed: 35 dB (Rw).

Formaldehyde emissions (to BS EN 13986: 2004):

Class E1.

Product Options

Size:

  • Standard sizes: 2135 x 915 mm; 2440 x 915 mm; 2440 x 1220 mm; 2800 x 915 mm; 2800 x 1830 mm; 3050 x 1050 mm.
  • Maximum sizes available (single doors): 2441 x 1384 mm or 3050 x 825 mm.
  • Maximum sizes available (double doors): 2300 x 1142 mm or 2850 x 825 mm.

Extended heights and widths are available; consult manufacturer for details and insert requirements.

Glazing:

Approved glazing size: 0.82 m².

Hinges:

Hinges should conform to PREN 1935 (BS 7352: 1990). Fixings are to be no smaller than No 10 x 32 mm long.

Locking:

Should conform to PREN 12209 (BS 5872: 1980).

Lipping:

Standard lippings are 10 mm. Different lipping glue lines are available, including PVA, PVAC, U/F, and PU. Consult manufacturer for details.

Accessories/ Other requirements:

A range of design options and accessories are available including feature grooves, door closers, and others. Consult manufacturer for details and insert requirements.

Digital objects
Platform Compatible Version Certified to
Revit

Revit 2017

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
Third party certifications
  • FSC: Certificate: C003410
