HALSPAN® Hinges
A range of hinges designed for use with Halspan doors.
For fitting to internal fire doors.
A range of hinges designed for use with Halspan doors.
Features and benefits:
- Includes intumescent hinge pad protection.
- Appropriate for use with backcheck door closers.
- Fire tested to BS 476-22: 1987 and EN 1634‐1: 2008 (when fitted in conjunction with the supplied intumescent hinge pads).
- Manufactured in accordance with BS EN 1935: 2002.
- CE marked to BS EN 1121.
Applications:
For fitting to internal fire doors.
Uniclass 2015 | |
CAWS | P21/310 Single axis door hinges P21/6 Single axis door hinges |
Product Reference | HALSPAN® Hinges |

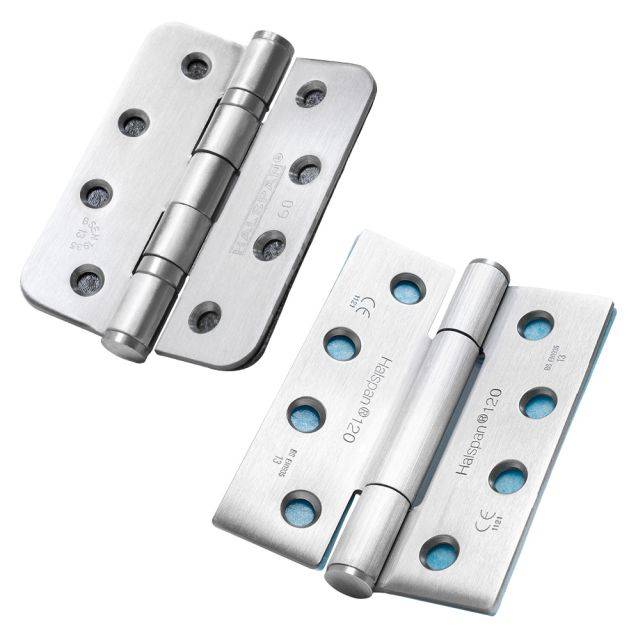

Type | HALSPAN® 30 Radius Corner HingeBall bearing. 30 minutes resistance. HALSPAN® 30 Square Corner HingeBall bearing. 30 minutes resistance. HALSPAN® 60 Radius Corner HingeTriple knuckle butt hinge. 60 minutes resistance. HALSPAN® 60 Square Corner HingeTriple knuckle butt hinge. 60 minutes resistance. HALSPAN® R90 ‘Lite’ Butt Hinge90 minutes resistance. HALSPAN® R90 Lift off Hinge (BSS Finish)90 minutes resistance. HALSPAN® R90 Lift off Hinge (BZP Finish)90 minutes resistance. HALSPAN® R90 Lift off Hinge (EBP Finish)90 minutes resistance. HALSPAN® R90 Lift off Hinge (SBS Finish)90 minutes resistance. HALSPAN® R120 HingeTriple knuckle butt hinge. 90 minutes resistance. |
Standard product features | Maximum door weight: 120 kg. |
Product Options | Type: - HALSPAN® 30 (Radius Corner Hinge and Square Corner Hinge):
- HALSPAN® 60 (Radius Corner Hinge and Square Corner Hinge):
- HALSPAN® R90 ‘Lite’ Butt Hinge:
- HALSPAN® R90 Lift off Hinges (various finishes):
- HALSPAN® R120:
|
