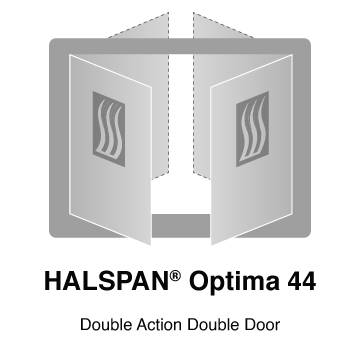

HALSPAN® Optima 44 mm Internal Fire Rated Door Blank - Double Acting Double Doors

Name: HALSPAN® Optima 44 mm Internal Fire Rated Door Blank - Double Acting Double Doors
Brand: Halspan Ltd
SKU: qXF3K29xsecxpieXoupGqM

NBS BIM object standard

Verified by manufacturer over a year ago

Halspan Ltd

Third party certifications:

QA Certificate
Certificate type

Double Acting Double Doors

Jump to:

+44 (0)330 0563836 Website

Application

For interior applications.

Description

Door blanks with a fire rating of 30 minutes.

Features and benefits:

Produces high quality, high strength doors.

Suitable for receiving veneer, laminate or paint finishes - consult manufacturer for details.

Tested to comply with PAS 24.

Rebates can be incorporated for double door configurations, and the design can be altered to include feature grooves if required. Consult manufacturer for details.

Achieves Severe Duty rating.

FSC® certified.

Tested in accordance with UL 10C (20 minutes). Consult manufacturer for details.

Tested in accordance with:

BS 476-22: 1987.

BS EN 1634-1: 2000/ 2008.

BS EN 1363-1: 1999.

DD 171.

EN 1191.

EN 1192.

EN 947.

EN 949.

EN 950.

Applications:

For interior applications.

General information

Shape	Rectangle
Color	Brown
Finish	Paint, timber veneers, PVC, plastic laminates or cellulosic and non-metallic foils
Material	3 layer particleboard
Size	See 'Options' below and insert requirements.

Uniclass	Ss_25_30_20_25 Doorset systemsPrimary
CAWS	L20/410 Wood doorsets L20/420 Wood doorsets L20/480 Doorsets L20/55 Doorsets

Product range	HALSPAN® Optima Internal Fire Rated Door Blank

Specification data - Doorset systems

Product Reference	Optima 44 mm Fire Rated Interior Grade Door Blanks
Configuration	See 'Options' and insert requirements.
Size	See 'Options' below and insert requirements.
Frame	Aluminium Hardwood Medium density fibreboard (MDF) Softwood Steel
Glazing	Required Consult the Halspan Technical Support manual for available options and insert requirements. Not required
Seals/ inserts	Consult the Halspan Technical Support manual for details.
Hinges	Ball bearing butt hinge Fixed pin hinge Journal supported lift-off hinge
Intumescent material	Graphite Palusol™
Locking	Consult the Halspan Technical Support manual for further details and insert requirements.
Lipping	Consult the Halspan Technical Support manual for further details and insert requirements.
Accessories/ Other requirements	A range of ironmongery and accessories is available. Consult the Halspan Technical Support manual for further details.

Standard product features	Door leaf: - Material: Three layer particleboard. - Thickness: 44 mm. - Weight: 27.3 kg/m². - Density: 620 kg/m³. - Thermal transmittance (U-Value): 2 W/m²K. - Moisture content: 6–10%. Acoustic performance (to BS EN ISO 10140-2: 2010): Single doors: Unglazed: 33 dB (Rw); glazed: 35 dB (Rw). Double doors: Unglazed: 32 dB (Rw); glazed: 35 dB (Rw). Formaldehyde emissions (to BS EN 13986: 2004): Class E1.
Product Options	Configuration: Double Acting Double Door (DADD). Double Acting Double Door with Over Panel (DADD+OP). Double Acting Single Door (DASD). Double Acting Single Door with Over Panel (DASD+OP). Latched Double Acting Double Door (LDADD). Latched Double Acting Double Door with Over Panel (LDADD+OP). Latched Double Acting Single Door (LDASD). Latched Double Acting Single Door with Over Panel (LDASD+OP). Latched Single Acting Double Door (LSADD). Latched Single Acting Double Door with Over Panel (LSADD+OP). Latched Single Acting Single Door (LSASD). Latched Single Acting Single Door with Over Panel (LSASD+OP). Unlatched Single Acting Double Door (ULSADD). Unlatched Single Acting Double Door with Over Panel (ULSADD+OP). Unlatched Single Acting Single Door (ULSASD). Unlatched Single Acting Single Door with Over Panel (ULSASD+OP). Size: Standard sizes: 2060 x 840 mm; 2135 x 915 mm; 2440 x 915 mm; 2440 x 1220 mm; 2800 x 915 mm; 2800 x 1830 mm; 3050 x 1050 mm. Maximum sizes available (single doors): 2135 x 1200 mm or 2800 x 915 mm. Maximum sizes available (double doors): 2135 x 1100 mm or 2600 x 910 mm. Consult manufacturer for details and insert requirements. Glazing: Approved glazing size: 1.75 m². Hinges: Hinges should conform to PREN 1935 (BS 7352: 1990). Fixings are to be no smaller than No 10 x 32 mm long. Locking: Should conform to PREN 12209 (BS 5872: 1980). Lipping: Standard lippings are 6 mm. Different lipping glue lines are available, including PVA, PVAC, U/F, and PU. Consult manufacturer for details. Accessories/ Other requirements: A range of design options and accessories are available including panel effect, feature grooves, door closers, and others. Consult manufacturer for details and insert requirements.
