Halspan FD90 64 mm - Fire Rated Interior Grade Door Blanks

Name: Halspan FD90 64 mm - Fire Rated Interior Grade Door Blanks
Brand: Halspan Ltd
SKU: 4zNRd1MPy3kGE23i9Zft54

Verified by manufacturer 2 days ago

FD90 LSASD - Latched Single Action Single Door

Halspan Ltd

Product certifications:

BM Trada
Certificate type
EPD
Certificate type
IFCC
Certificate type
Secured By Design
Certificate type

Fire-rated interior grade door blanks.

Jump to:

+44 (0)330 0563836 Website

Application

Halspan FD90 door blank suitable for the following sectors:

Education.
Healthcare.
Hospitality.
Commercial.
Industrial.
Airport.
Government.

Description

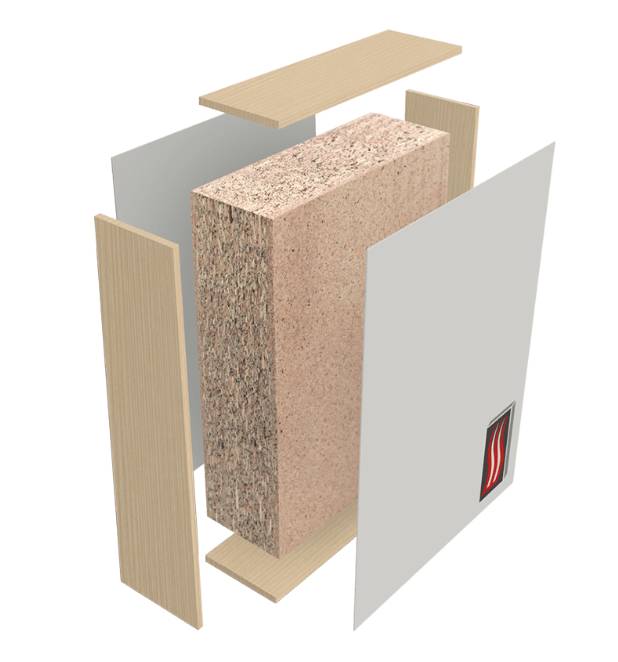

Halspan 90 internal fire door blanks feature Halspan’s three layer particle board. Specifically designed for the purpose, using a complex combination of chemical and engineering development, these blanks produce doors of altogether superior quality, strength and overall performance.

Features and benefits:

64mm internal fire door blank.
Fire performance: FD90 / FD90S*
Acoustic performance: Upto 35dB Rw (unglazed); 36dB Rw (glazed). See variant.
Durability performance: Severe duty - tested to 00171/85 6375-2.
Chain of Custody: FSC®.
Particle board: formaldehyde release rating: 0.05 ppm when tested to EN 717-1.
Weight = 40.3 kg m2
Suitable for veneer, laminate or paint finishes.

*Smoke leakage to BS476 Part 31.1

Note:

Fire and acoustic performance achieved when installed in a suitable frame fitted with appropriate seals.
The information in this listing is correct at time of publishing however our designs, specifications and certifications may change in the interest of product development following publication. If you would like to enquire about any of the details in the product listing, please contact the technical support team - technical@halspan.com for further assistance.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Veneered Laminated Painted Primed Stained Lacquered Show more
Material	Particleboard Guidance for specification option: Halspan FD90 64mm: 64mm 3-layer particle board internal fire door blank rated to 90 minutes fire performance.
Shape	Rectangle
Width	Bespoke Guidance for specification option: Please refer to Specification data - Wood flush door leaves - Door leaf size
Height	Bespoke Guidance for specification option: Please refer to Specification data - Wood flush door leaves - Door leaf size

Uniclass	Pr_30_59_23_97 Wood flush door leavesPrimary Pr_30_59_23_98 Wood panelled door leaves
CAWS	L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/30 Wood doors L20/480 Doorsets L20/280 Doors L20/45 Doors L20/25 Wood panelled doors L20/20 Wood flush doors L20/250 Wood panelled doors L20/230 Wood flush doors L20/55 Doorsets L20/270 Wood doors

SKU Code	FD90 LSASD, FD90 ULSASD, FD90 LSADD, FD90 LSADD

Specification data - Wood flush door leaves

Classification data
Format	Single-leaf, single-action.
Thickness	64 mm.
Door leaf size	2150 x 1040 mm. 2440 x 1220 mm. Manufacturer guidance Door leaf blank sizes as listed. Actual finished door leaf sizes will be as per the latest test, Field of Application and EXAP data. Please contact the technical support team - technical@halspan.com for further assistance.
Performance	-
Fire resistance	-
Integrity	To BS 476: Part 22, 90 minutes. Manufacturer guidance Tested in accordance with BS 476: Part 22: 1987, BS EN 1634-1:2000/2008 & BS EN 1363-1:1999.
Acoustic performance	To BS EN ISO 10140-2, 35 dB Rw (unglazed); 36 dB Rw (glazed).
Strength and durability	Severe duty. Manufacturer guidance Tested in accordance with DD 171, EN 1191, EN 1192, EN 947, EN 949 and EN 950.
Door structure	Three-layer particle board.
Facings	Veneer. Laminate. Paint grade. Manufacturer guidance For technical guidance, on suitable facings, please contact the technical support team - technical@halspan.com.
Lippings	3 mm lipping section. Guidance for specification option: Applicable to flat timber lippings only. Rebated lippings (double doors) not permitted. Manufacturer guidance For technical guidance, on suitable lippings, please contact the technical support team - technical@halspan.com.
Glazing	-
Type	- Manufacturer guidance Approved glazing size - 0.55 m². For technical guidance, on glazing size and type, please contact the technical support team - technical@halspan.com.
Manifestation	- Manufacturer guidance For technical guidance, on glazing manifestation, please contact the technical support team - technical@halspan.com.
Beading	-
Type	- Manufacturer guidance For technical guidance, on glazing bead type, please contact the technical support team - technical@halspan.com.
Material	- Manufacturer guidance For technical guidance, on glazing bead material, please contact the technical support team - technical@halspan.com.
Glazing accessories	- Manufacturer guidance For technical guidance, on glazing accessories, please contact the technical support team - technical@halspan.com.
Hardware	- Manufacturer guidance For technical guidance, on appropriate hardware, please contact the technical support team - technical@halspan.com.
Perimeter seals	- Manufacturer guidance For technical guidance, on appropriate seals, please contact the technical support team - technical@halspan.com.
Finish	Painted. Primed. Stained. Lacquered. Manufacturer guidance For technical guidance, on available finish options, please contact the technical support team - technical@halspan.com.
Colour	-
External	- Manufacturer guidance Dependent on finish. For technical guidance please contact the technical support team - technical@halspan.com.
Internal	- Manufacturer guidance Dependent on finish. For technical guidance please contact the technical support team - technical@halspan.com.
Accessories	- Manufacturer guidance Dependent on door design. For complete compliant door system designs, please refer to the Halspan Verified Door Systems Brochure.
Weight	40.3 kg/m².
Density	630 kg/m².

Sustainability data

Material	Particleboard Guidance for specification option: Halspan FD90 64mm: 64mm 3-layer particle board internal fire door blank rated to 90 minutes fire performance.
