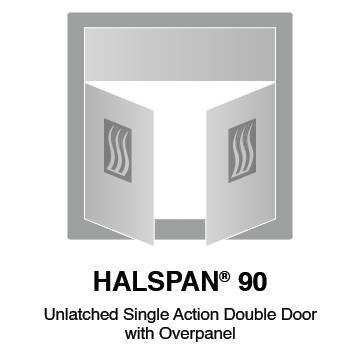

HALSPAN® 90 Fire Rated Interior Grade Door Blanks - Unlatched Single Acting Double Doors With Overpanel

Name: HALSPAN® 90 Fire Rated Interior Grade Door Blanks - Unlatched Single Acting Double Doors With Overpanel
Brand: Halspan Ltd
SKU: stnGQWTJ1nQvb2vE1JAqXG

NBS BIM object standard

Verified by manufacturer over a year ago

Halspan Ltd

Third party certifications:

QA Certificate
Certificate type

Unlatched Single Acting Double Doors With Overpanel

Jump to:

+44 (0)330 0563836 Website

Application

For interior applications.

Description

Door blanks with a fire rating of 90 minutes.

Features and benefits:

Produces high quality, high strength doors.

Suitable for receiving veneer, laminate or paint finishes - consult manufacturer for details.

Approved as fire doors conforming to BS 476-22: 1987 for installation in hollow and backfilled steel framed door assemblies.

Rebates can be incorporated for double door configurations.

FSC® certified.

Tested in accordance with:

BS EN 1634-1: 2000/ 2008.

BS EN 1363-1: 1999.

DD 171.

EN 1191.

EN 1192.

EN 947.

EN 949.

EN 950.

Applications:

For interior applications.

General information

Shape	Rectangle
Color	Brown
Finish	HPL, timber veneers, plastic laminates or decorative paper/non-metallic foil
Material	3 layer particleboard
Size	See 'Options' below and insert requirements.

Uniclass	Ss_25_30_20_25 Doorset systemsPrimary
CAWS	L20/410 Wood doorsets L20/420 Wood doorsets L20/480 Doorsets L20/55 Doorsets

Product range	HALSPAN® Fire Rated Interior Grade Door Blanks

Specification data - Doorset systems

Product Reference	HALSPAN® 90 Fire Rated Interior Grade Door Blanks
Configuration	Double Acting Double Door (DADD) Double Acting Double Door with Over Panel (DADD+OP) Double Acting Single Door (DASD) Double Acting Single Door with Over Panel (DASD+OP) Latched Single Acting Double Door (LSADD) Latched Single Acting Double Door with Over Panel (LSADD+OP) Latched Single Acting Single Door (LSASD) Latched Single Acting Single Door with Over Panel (LSASD+OP) Unlatched Single Acting Single Door (ULSASD) Unlatched Single Acting Single Door with Over Panel (ULSASD+OP)
Size	See 'Options' below and insert requirements.
Frame	-
FrameType	Backfilled For steel only. Hollow
FrameMaterial	Hardwood Stainless steel Manufactured from an appropriate stainless steel grade, e.g. 1.4301 (304) or 1.4401 (316). Consult manufacturer for details. Steel 1.5 mm-thick rolled mild steel.
Glazing	Required Consult the Halspan Technical Support manual for available options and insert requirements. Not required
Seals/ inserts	Consult the Halspan Technical Support manual for details.
Hinges	Butt hinges (HIN‐BSS‐105) Lift off hinges (HIN‐BSS‐106/7)
Locking	Halspan® 90 mortice lock/ latch (BOM‐LCK‐102) Includes required intumescent protection.
Lipping	Consult manufacturer and insert requirements.
Accessories/ Other requirements	A range of ironmongery and accessories is available. Consult the Halspan Technical Support manual for further details.

Standard product features	Door leaf: - Material: Three layer particleboard. - Thickness: 64 mm. - Weight: 40.3 kg/m². - Density: 630 kg/m³. - Moisture content: 6–10%. Acoustic performance (to BS EN ISO 10140-2: 2010): Single doors: Unglazed: 34 dB (Rw); glazed: 35 dB (Rw). Double doors: Unglazed: 33 dB (Rw); glazed: 35 dB (Rw). Formaldehyde emissions (to BS EN 13986: 2004): Class E1.
Product Options	Size: Standard size: 2150 x 1040 mm. Maximum sizes available (single doors): 2240 x 1072 mm or 2856 x 1000 mm. Maximum sizes available (double doors): 2150 x 940 mm or 2223 x 747 mm. Consult manufacturer and insert requirements. Glazing: Approved glazing size: 0.56 m². Hinges: Fixed with 50 mm long, No. 10 steel screw ‘Twinfast’ fixings (parallel shank). Lipping: Different lipping glue lines are available, including PVA, PVAC, U/F, PU, and Hot Melt. Consult manufacturer for details.
