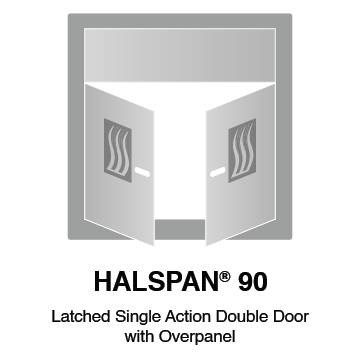

HALSPAN® 90 Fire Rated Interior Grade Door Blanks - Latched Single Acting Double Doors With Overpanel

Verified by manufacturer over a year ago

Halspan Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Latched Single Acting Double Doors With Overpanel

Jump to:
BIM object icon
+44 (0)330 0563836 Website

Application

For interior applications.

Description

Door blanks with a fire rating of 90 minutes.

Features and benefits:

  • Produces high quality, high strength doors.
  • Suitable for receiving veneer, laminate or paint finishes - consult manufacturer for details.
  • Approved as fire doors conforming to BS 476-22: 1987 for installation in hollow and backfilled steel framed door assemblies.
  • Rebates can be incorporated for double door configurations.
  • FSC® certified.

Tested in accordance with:

  • BS EN 1634-1: 2000/ 2008.
  • BS EN 1363-1: 1999.
  • DD 171.
  • EN 1191.
  • EN 1192.
  • EN 947.
  • EN 949.
  • EN 950.

Applications:

For interior applications.

General information

Shape

Rectangle

Color

Brown

Finish

HPL, timber veneers, plastic laminates or decorative paper/non-metallic foil

Material

3 layer particleboard

Size

See 'Options' below and insert requirements.

Size

See 'Options' below and insert requirements.

Finish

HPL, timber veneers, plastic laminates or decorative paper/non-metallic foil

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

Product range

HALSPAN® Fire Rated Interior Grade Door Blanks

Specification data - Doorset systems

Product Reference

HALSPAN® 90 Fire Rated Interior Grade Door Blanks

Configuration

Double Acting Double Door (DADD)

Double Acting Double Door with Over Panel (DADD+OP)

Double Acting Single Door (DASD)

Double Acting Single Door with Over Panel (DASD+OP)

Latched Single Acting Double Door (LSADD)

Latched Single Acting Double Door with Over Panel (LSADD+OP)

Latched Single Acting Single Door (LSASD)

Latched Single Acting Single Door with Over Panel (LSASD+OP)

Unlatched Single Acting Single Door (ULSASD)

Unlatched Single Acting Single Door with Over Panel (ULSASD+OP)

Size

See 'Options' below and insert requirements.

Frame

-

FrameType

Backfilled

For steel only.

Hollow

FrameMaterial

Hardwood

Stainless steel

Manufactured from an appropriate stainless steel grade, e.g. 1.4301 (304) or 1.4401 (316). Consult manufacturer for details.

Steel

1.5 mm-thick rolled mild steel.

Glazing

Required

Consult the Halspan Technical Support manual for available options and insert requirements.

Not required

Seals/ inserts

Consult the Halspan Technical Support manual for details.

Hinges

Butt hinges (HIN‐BSS‐105)

Lift off hinges (HIN‐BSS‐106/7)

Locking

Halspan® 90 mortice lock/ latch (BOM‐LCK‐102)

Includes required intumescent protection.

Lipping

Consult manufacturer and insert requirements.

Accessories/ Other requirements

A range of ironmongery and accessories is available. Consult the Halspan Technical Support manual for further details.

Standard product features

Door leaf:

- Material:

Three layer particleboard.

- Thickness:

64 mm.

- Weight:

40.3 kg/m².

- Density:

630 kg/m³.

- Moisture content:

6–10%.

Acoustic performance (to BS EN ISO 10140-2: 2010):

  • Single doors: Unglazed: 34 dB (Rw); glazed: 35 dB (Rw).
  • Double doors: Unglazed: 33 dB (Rw); glazed: 35 dB (Rw).

Formaldehyde emissions (to BS EN 13986: 2004):

Class E1.

Product Options

Size:

  • Standard size: 2150 x 1040 mm.
  • Maximum sizes available (single doors): 2240 x 1072 mm or 2856 x 1000 mm.
  • Maximum sizes available (double doors): 2150 x 940 mm or 2223 x 747 mm.

Consult manufacturer and insert requirements.

Glazing:

Approved glazing size: 0.56 m².

Hinges:

Fixed with 50 mm long, No. 10 steel screw ‘Twinfast’ fixings (parallel shank).

Lipping:

Different lipping glue lines are available, including PVA, PVAC, U/F, PU, and Hot Melt. Consult manufacturer for details.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1

Third party certifications

  • FSC: Certificate: C003410
