Description

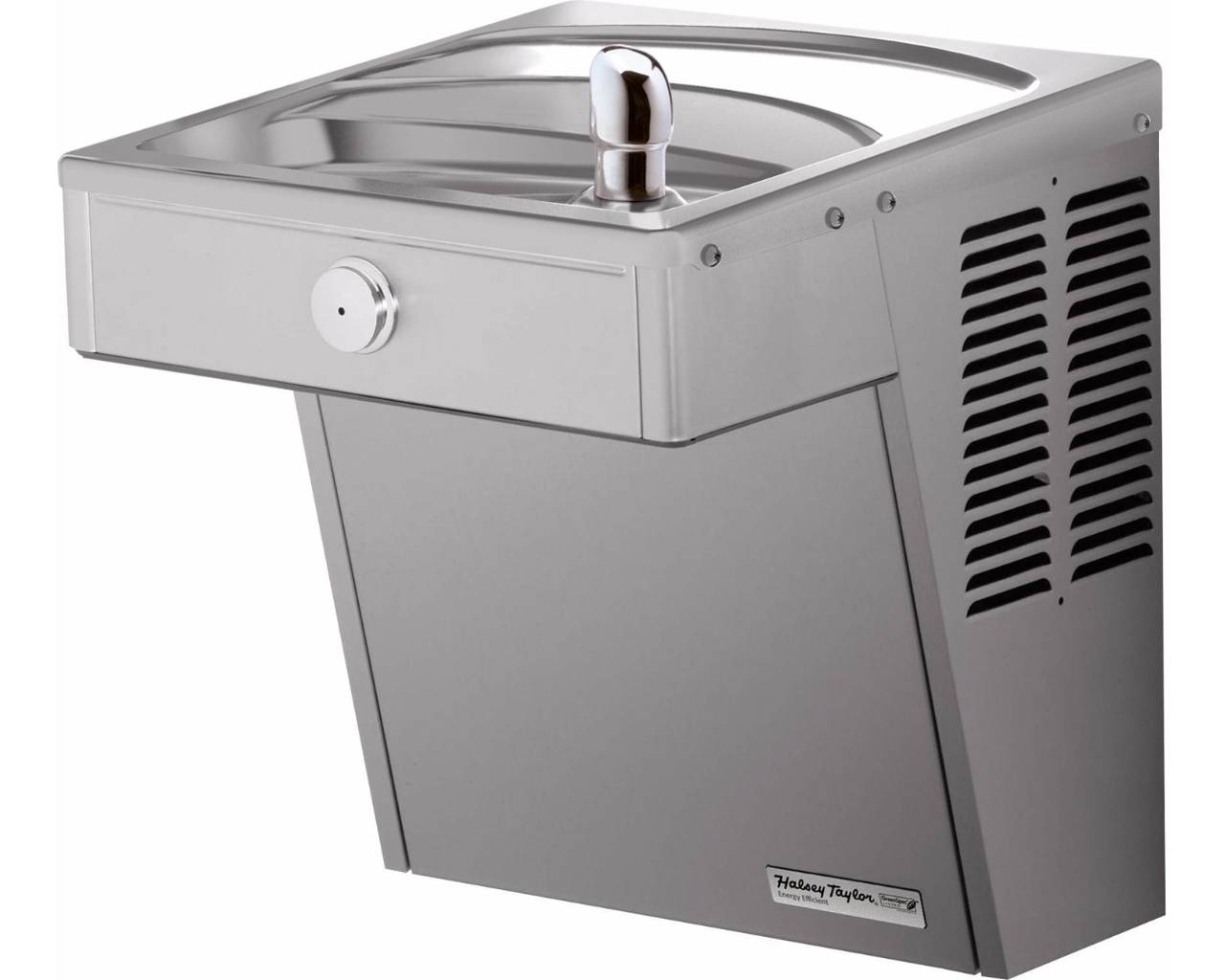

Vandal resistant wall mounted water cooler. Filtered and refrigerated, for indoor use only.

Features and benefits:

  • Heavy-duty, 14 gauge stainless steel cabinet suitable for high volume environments such as schools.
  • Durable satin finish helps to hide water spots and fingerprints.
  • Anti-splash ridge and contoured basin ensure minimal mess and proper drainage.
  • Delivers 30 litres of chilled water per hour.
  • Vandal-resistant bubbler has integral hood design to prevent contamination from other users, airborne deposits and tampering.
  • Push-button actuation mechanism is simple and easy to use – it does not require grasping or twisting.
  • Automatic stream height regulator provides a constant flow of between 20 to 105 psi water pressure.
  • In-line strainer screen traps particles of 0.14 mm or larger before they enter the waterway.
  • Adjustable temperature thermostat included.
  • Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and self-lubricated fan cooler mean minimal maintenance is required.
  • High efficiency, positive start compressor included within the refrigeration system.
  • Suitable for both indoor and outdoor spaces.
  • Vandal-resistant push-button tap 'low flow' bubbler reduces water consumption by 40%.
  • Meets with the requirements of the Americans with Disabilities Act (ADA) and the Equality Act 2010.
  • WRAS and BREEAM approved, and GreenSpec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information
Color

Silver

Features

ADA Approved, BREEAM Approved, Filtered, Refrigerated, Stainless Steel, Vandal Resistant, WRAS Approved, Barrier Free

Finish

Satin

Material

StainlessSteel

Size

518 x 513 x 668 mm

WarrantyDescription

5 Year Limited Warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation.

Uniclass 2015
Water coolers (Pr_40_70_15_96)Primary
Specification data - Water coolers
Product Reference

HVR8 ADA

Rated watt usage: 370 W.

HVR8FR ADA

Rated watt usage: 620 W.

HVR-L/R ADA

HVR8FR-CHILD ADA

Frost-resistant model. Factory installed only; consult manufacturer for information.

Accessories

Not required

Louver screens

Water filter

Not available for HVR8FR-CHILD ADA.

Standard product features

Size (h x w):

786 x 473 mm.

Weight:

28 kg.

Material:

Stainless steel, 14 gauge.

Finish:

Satin.

Fixing:

Wall mounted. Wall security brackets included.

Water temperature:

10°C (factory setting).

Drain:

32 mm (1 1/4").

Rated power input:

370 W.

Nominal voltage:

230 V (50 Hz).

Product Options

Product reference:

Consult manufacturer for information on product variations.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 2 2.0
IFC
- 2 2.0
Download now from NBS National BIM Library
Third party certifications
  • WQA: Certificate: NSF/ANSI 61
  • WRAS: Certificate: 1707100
  • ARI: Standard: 1010
