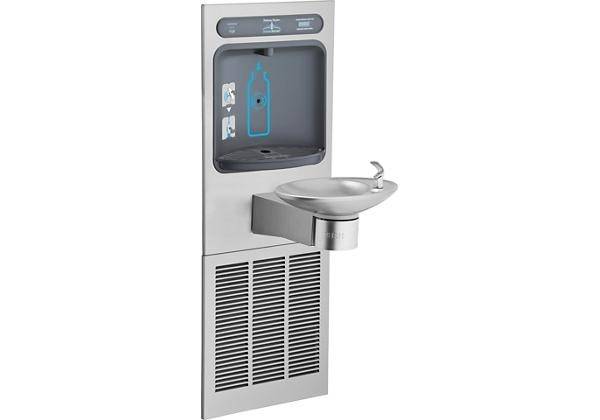

HydroBoost bottle filling station with single architectural drinking fountain, for mounting in the wall/ recessed. Filtered and refrigerated.

Features and benefits:

  • Includes fountain with integral HydroBoost® bottle filling station, mounting frame, chiller and filter.
  • Suitable for high volume environments such as office blocks, schools and universities.
  • Dispenses large quantities of chilled, filtered water due to rapid fill technology without the need for maintenance, repairs or queuing.
  • Automatic sensor and easy-to-use push-button mechanism, which does not need to be twisted and turned, are included.
  • Silver ion antimicrobial protection is provided on key plastic components to inhibit the growth of mould and mildew.
  • Automatic stream height regulator included, which maintains a consistent level of flow under water pressures from 20 to 105 psi.
  • HWF3000 WaterSentry® Plus filter included, with visual display showing red, yellow and green LEDs to indicate when maintenance or a replacement is required.
  • Green Counter™ visual panel will display the number of plastic bottles saved from landfill by being refilled.
  • An in-line strainer will trap any dirt or dust particles larger than 0.14 mm before they reach the waterway.
  • Quick flow rate of 1.1–1.5 gallons of water per minute.
  • Chilling capacity of 30 litres per hour.
  • Chrome plated, vandal-resistant, one-piece double bubbler tap included which produces mound building flow, anti-squirt features and a contoured basin to prevent spillage and overflow.
  • Real drain system eliminates standing water.
  • Comes with an advanced pressure cooler system, which is fully insulated with EPS foam to meet UL requirements for self-extinguishing material.
  • The unit is hermetically sealed and features lifetime lubrication and built-in overload protection.
  • The satin finish is non-corrosive.
  • Meets with the requirements of the Americans with Disabilities Act (ADA) and the Equality Act 2010.
  • WRAS and BREEAM approved, and GreenSpec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information



ADA Approved, BREEAM Approved, Filtered, GreenSpec Listed, NSF 61/372 lead free, Refrigerated, Sensor Operated, WRAS Approved


Stainless steel




482 x 502 x 1400 mm


5 Year Limited Warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation.

Uniclass 2015 Water coolers (Pr_40_70_15_96)
Specification data
Product Reference

Halsey Taylor HTHBWF-OVLER-I


Not required


WaterSentry® Plus replacement filter (bottle fillers).


Cane apron for OVL-II models (grey).


WaterSentry® Fresh 6000 CTO filter – replacement (two-pack).

Standard product features

Size (h x w x d):

1401 x 502 x 305 mm.


55 kg.


Stainless steel.




Wall mounted (in wall frame/ plate). Wall security brackets included.

Water temperature:



McAlpine 32 mm (1 1/4") drain.

Rated power input:

370 W.

Nominal voltage:

230 V (50 Hz).

Digital objects
PlatformCompatibleVersionCertified to
Revit 2016 2 2.0
- 2 2.0
Download now from NBS National BIM Library
