Description

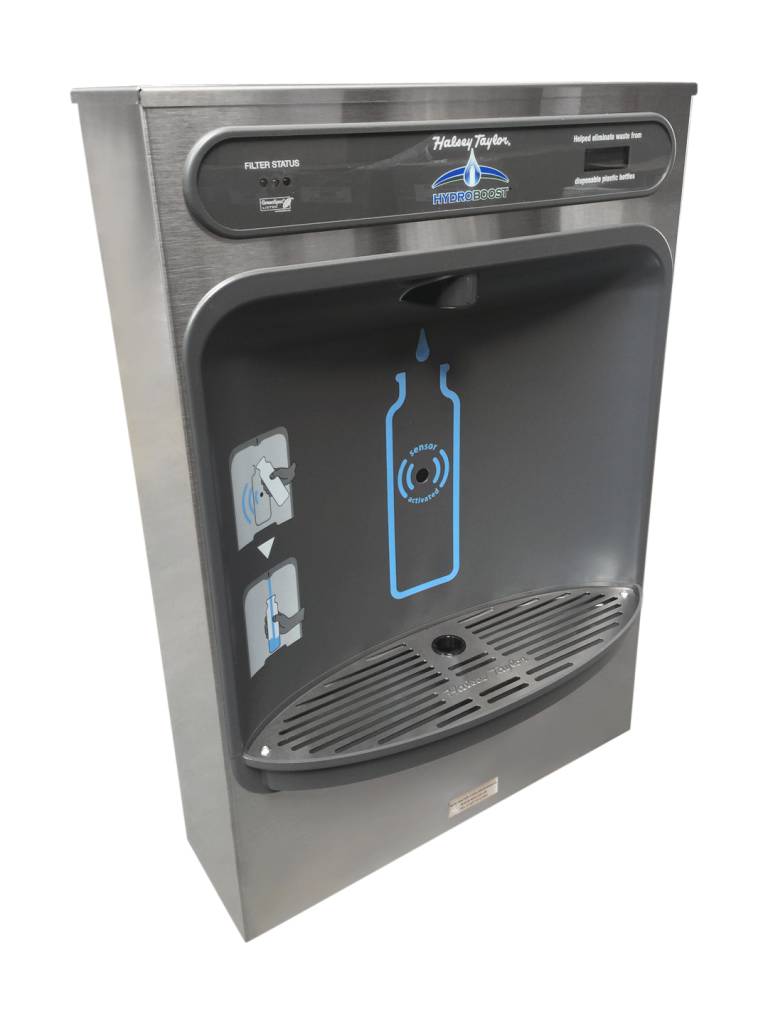

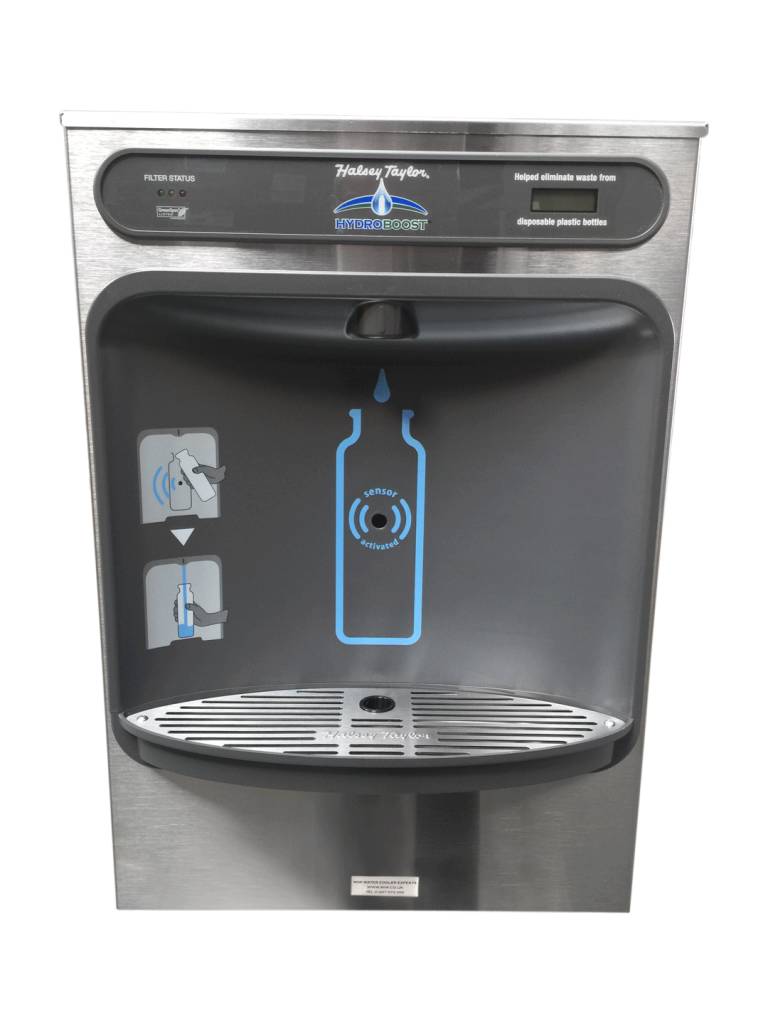

Surface mounted bottle filling station. Non-filtered and non-refrigerated.

Features and benefits:

  • Touchless, sensor activation for easy use – bottles under the dispenser can be filled quickly.
  • The system has an electronic auto shut-off after 20 seconds to reduce wastage.
  • Laminar flow provides clean fill with minimal splash.
  • The mount can be installed to stand on its own or be part of a water fountain system.
  • HydroBoost® bottle filling station.
  • Real drain system eliminates standing water.
  • Easy to read interface which is simple to use.
  • Green Counter™ visual panel will display the number of plastic bottles saved from landfill by being refilled.
  • Silver-ion antimicrobial protection on key plastic components to inhibit the growth of mould and mildew.
  • Suitable for indoor applications.
  • The system is designed to allow for quick installation of new filters, and automatically senses and resets when a new filter has been installed.
  • Meets the requirements of the Americans with Disabilities Act (ADA) and the Equality Act 2010.
  • WRAS and BREEAM approved, and GreenSpec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information
Color

Grey

Features

ADA Approved, BREEAM Approved, GreenSpec Listed, Non-Refrigerated, NSF 61/372 lead free, Sensor Operated, WRAS Approved

Finish

Stainless steel

Material

StainlessSteel

Shape

Rectangular

Size

208 x 455 x 647 mm

WarrantyDescription

5 Year Limited Warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation

Uniclass 2015 Water coolers (Pr_40_70_15_96)
Specification data
Product Reference

Halsey Taylor HTHBSM

Accessories

Not required

HWF3000

WaterSentry® Plus filter kit (bottle fillers).

SJ8

Halsey Taylor remote chiller, non-filtered, 30 litres per hour.

SJ8GRN

Halsey Taylor remote chiller, non-filtered, 30 litres per hour, GreenSpec® listed.

Standard product features

Size (h x w x d):

647 x 455 x 208 mm.

Weight:

10.25 kg.

Material:

Stainless steel.

Finish:

Satin.

Fixing:

Wall mounted. Wall security brackets included.

Water temperature:

Non-refrigerated, ambient.

Drain:

22 mm.

Rated power input:

15 W.

Nominal voltage:

230 V (50 Hz).

Product Options

Accessories:

- SJ8 and SJ8GRN:

Coolers can be installed within fifteen feet of the unit for a constant source of chilled water.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 2 2.0
IFC
- 2 2.0
Download now from NBS National BIM Library
Similar products from MIW Water Cooler Experts
