Halsey Taylor HTHB-HAC8SS-WF - Drinking fountain packages

Halsey Taylor HTHB-HAC8SS-WF - Drinking fountain packages

MIW Water Cooler Experts Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Indoor, Wall Mounted, Combination Drinking Fountain & Bottle Filling Station - WRAS Approved.

Jump to:
+44 (0)1207 572 000 www.miw.co.uk

Description

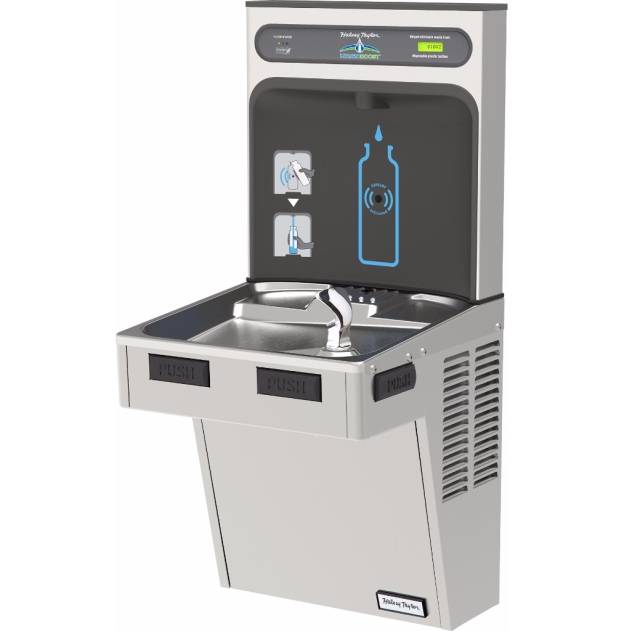

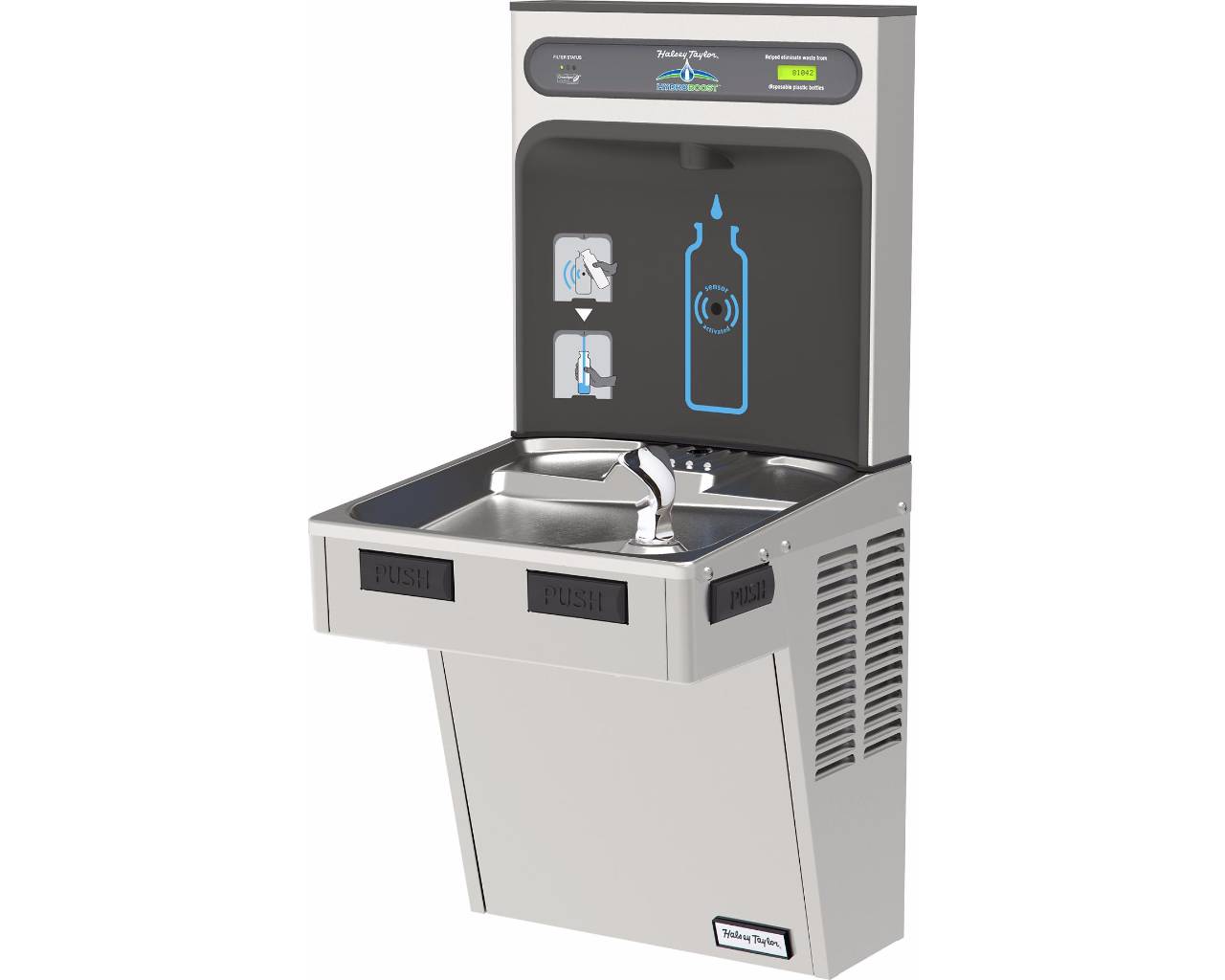

Bottle filling station and drinking fountain for on-wall mounting. Filtered and refrigerated.

Features and benefits:

  • Suitable for use indoors, in small rooms or tight corners due to the self-contained, wall-mounted design.
  • Efficient capillary sizing and a large capacity dryer-strainer.
  • Chilling capacity of 30 litres per hour.
  • Features a one piece, chrome-plated double bubbler tap.
  • Fast flow rate of 1.1–1.5 gallons per minute.
  • Bottle filler has touchless sensor activation.
  • Green Counter™ visual panel will display the number of plastic bottles saved from landfill by being refilled.
  • In-line strainer and silver ion antimicrobial protection are included to remove dust and dirt particles larger than 0.14 mm.
  • Key plastic components are treated with silver ion antimicrobial protection to prevent contamination from mould or mildew.
  • Satin finish resists water marks and fingerprints.
  • Automatic stream height regulator works between 20 and 105 psi to ensure a smooth, consistent flow of water.
  • Visual LED filter monitor alerts when the 3000 gallon capacity WaterSentry® Plus filter needs replacement, making maintenance easy.
  • Hermetically sealed refrigerator unit, built in overload protection, lifetime lubricated fan and positive start compressor included.
  • Real drain system eliminates standing water.
  • Easy-to-press push-bar actuation mechanisms on the front and side of the drinking fountain, and raised letters for those with visual impairments, means this station complies with the requirements of the Americans with Disabilities Act (ADA) and the Equality Act 2010.
  • WRAS and BREEAM approved, and GreenSpec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information

Color

Silver

Features

ADA Approved, BREEAM Approved, Filtered, GreenSpec, Listed NSF 61/372 lead free, Refrigerated, Sensor Operated, Stainless Steel, WRAS Approved, Silver Ion Antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.

Finish

Stainless steel

Material

StainlessSteel

Size

471 x 454 x 1010 mm

WarrantyDescription

5 Year Limited Warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation

Uniclass 2015

Pr_40_70_15_96 Water coolersPrimary

CAWS

N13/379 Drinking fountains

Specification data - Water coolers

Product Reference

Halsey Taylor HTHB-HAC8SS-WF

Accessories

Not required

55898C

WaterSentry® Plus replacement filter (bottle fillers).

98324C

Cane apron for HAC, HVR, EMABF and VRC models.

MLP100

In-wall carrier (single).

WSF6000R-2PK

WaterSentry® Fresh 6000 CTO filter replacement (two-pack).

Standard product features

Size (h x w x d):

975 x 454 x 473 mm.

Weight:

32 kg.

Material:

Stainless steel.

Finish:

Satin.

Fixing:

Wall mounted. Wall security brackets included.

Water temperature:

3–10°C.

Drain:

32 mm (1 1/4").

Rated power input:

370 W.

Nominal voltage:

230 V (50 Hz).

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

2

2.0
IFC
-

2

2.0
Download now from NBS National BIM Library

Third party certifications

  • WQA: Certificate: NSF/ANSI 42, 53, 61, 372
  • WRAS: Certificate: 1707084
  • UL: Certificate: 399
  • Organization: CAN/ CSA: Certificate: 22.2 No. 120
