Application

Outdoor applications.

Description

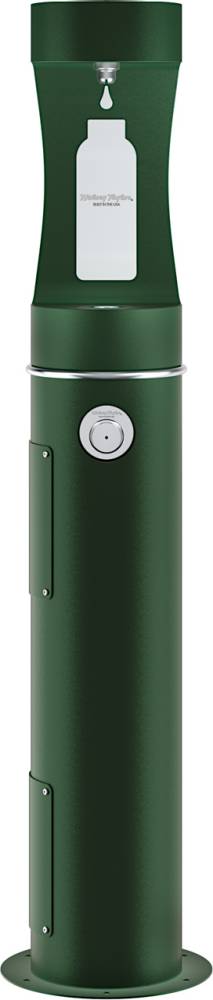

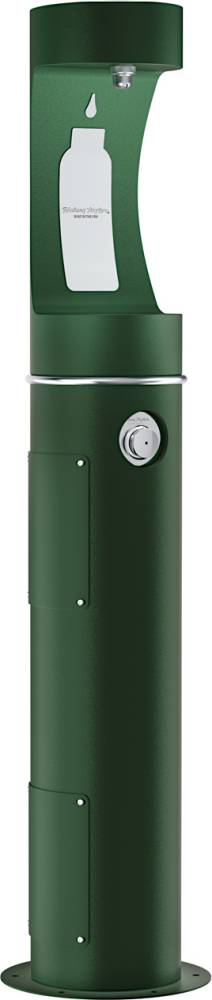

Outdoor bottle filling station with pedestal. Non-filtered and non-refrigerated.


Features and benefits:

  • Will fill a standard 500 ml water bottle in under seven seconds.
  • Vandal-resistant construction of heavy-gauge steel and anti-vandal screws.
  • Easy-to-use push-button actuation mechanism.
  • Water flow will be cut off when the button is released, preventing any spillages or waste.
  • Laminar flow included for clean fill with minimal splash.
  • Designed with rounded corners for extra safety in faster-paced environments, like parks or sports facilities.
  • Anti-corrosion, anti-stain, and weather-resistant finish.
  • Fast flow rate at 1.1–1.5 gallons per minute.
  • The absence of a tap to potentially twist or snap contributes to suitability for outdoor use.
  • Easy access to internal plumbing connections.
  • Water is free from contaminants due to an in-line strainer. This removes dust and dirt particles larger than 0.14 mm.
  • Manufactured with a waterway system utilizing copper components and lead-free material.
  • Complies with the requirements of ADA (Americans with Disabilities Act) and the Equality Act 2010.
  • WRAS and BREEAM approved, and Greenspec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.
  • Meets the requirements of the Safe Drinking Water Act.

General information

Color

Beige

Black

Blue

Brown

Green

Show more

Finish

Guidance for specification option:

E-coat immersion powdered finish.

Material

Stainless steel

Guidance for specification option:

Marine-grade 1.4401 (316).

Size

1626 x 254 x 254 mm

Guidance for specification option:

H x W x D.

Warranty description

Five year

Guidance for specification option:

Refrigeration system.

One year

Guidance for specification option:

Electrical components and water system.

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit

Revit 2016

2
