Half Battered Kerbs

Application

For residential and commercial applications when used in conjunction with the correct sub-base design, in accordance with the latest British standard.

Description

A concrete half-battered kerb, manufactured in accordance with BS EN 1340: 2003.


Features and benefits:

  • Heavy duty.
  • Produced with a natural surface finish.
  • Manufactured in the UK from locally sourced materials.

General information

Finish

Natural surface finish

Material

Concrete

Shape

90 degree internal/ external angle.

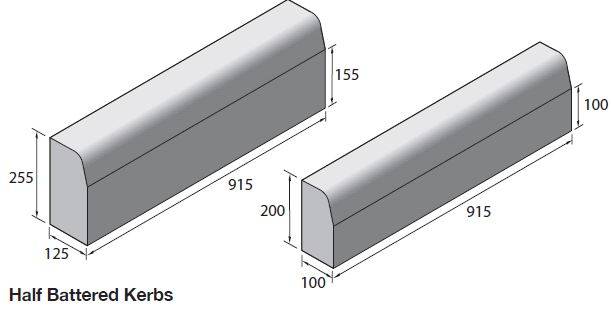

Size

200 x 100 x 915 mm

255 x 125 x 915 mm

Uniclass 2015

Pr_25_93_45_18 Concrete kerbsPrimary

CAWS

Q10/10 Precast concrete

Q10/110 Proprietary precast concrete

Specification data - Concrete kerbs Enhanced data

Standard

To BS EN 1340.

Installed to BS 7533-6.

Physical properties

-

Colour

Natural.

Finish

Natural surface finish.

Dimensions

200 x 100 x 915 mm - for standard kerb.

255 x 125 x 915 mm - for standard kerb.

Radial units

-

Radial face

External 90°.

Internal 90°.

Bending strength

3.5 MPa.

Product Reference

Half-battered kerb, dropper - 255/ 150 x 125 x 915 mm, standard size

Half-battered kerb, standard

EnergyUsed

100% renewable energy.

WaterUsed

100% rainwater from rainwater harvesting system.

Recyclability

100%

BREEAM rating

In accordance with the Green Guide to Specification.

Material:

Concrete.

Environmental information

Recyclability

100%
