Hafele SF-30/ 53 Sliding Door System

Name: Hafele SF-30/ 53 Sliding Door System
Brand: 7ULewr8aAUpnoo1xkxV21g
SKU: 2KaR5EwWnGTafEPfNJJzE2

Hafele UK Ltd

Sliding door mechanism.

Jump to:

+44 (0)800 171 2907 www.hafele.co.uk

Description

Suitable for residential or commercial applications such as hotels, the products can be quickly installed and adjusted using the simple height adjustment. Available with or without soft brake. All trolley hangers feature ball bearing runners for superior sliding action.

Features:

Maximum door weight 30–53 kg.

For door thicknesses 16-30 mm.

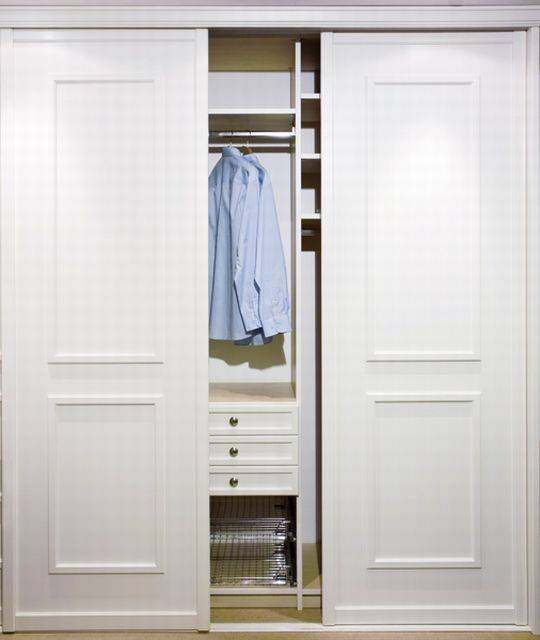

Top hung sets for wardrobe and cupboard doors, the hangers, include ball race bearings for a smooth silent action. The sets are available with or without soft brake, the latter a useful additional feature to prevent damage to the doors or injury to the user’s fingers.

Sets include double top track, running gear, door buffer and bottom guides. Soft brake versions also include soft break sets.

General information

Features

Maximum door weight 30–53 kg

For door thicknesses 16-30 mm

Top hung sets for wardrobe and cupboard doors, the hangers, include ball race bearings for a smooth silent action. The sets are available with or without soft brake, the latter a useful additional feature to prevent damage to the doors or injury to the user’s fingers

Sets include double top track, running gear, door buffer and bottom guides. Soft brake versions also include soft break sets

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Hafele SF-30 Sliding Door System, 405.49.003

For two doors, track length 2.0 m. Door weight (maximum): 30 kg. With soft brake.

Hafele SF-30 Sliding Door System, 405.49.004

For three doors, track length 3.0 m. Door weight (maximum): 30 kg. With soft brake.

Hafele SF-30 Sliding Door System, 405.49.010

For one door, track length 1.0 m. Door weight (maximum): 30 kg. Without soft brake.

Hafele SF-30 Sliding Door System, 405.49.011

For two doors, track length 1.2 m. Door weight (maximum): 30 kg. Without soft brake.

Hafele SF-30 Sliding Door System, 405.49.012

For two doors, track length 1.5 m. Door weight (maximum): 30 kg. Without soft brake.

Hafele SF-30 Sliding Door System, 405.49.013

For two doors, track length 2.0 m. Door weight (maximum): 30 kg. Without soft brake.

Hafele SF-30 Sliding Door System, 405.49.014

For three doors, track length 3.0 m. Door weight (maximum): 30 kg. Without soft brake.

Hafele SF-53 Sliding Door System, 405.49.005

For two doors, track length 2.0 m. Door weight (maximum): 53 kg. With soft brake.

Hafele SF-53 Sliding Door System, 405.49.006

For three doors, track length 3.0 m. Door weight (maximum): 53 kg. With soft brake.

Hafele SF-53 Sliding Door System, 405.49.016

For two doors, track length 2.0 m. Door weight (maximum): 53 kg. Without soft brake.

Hafele SF-53 Sliding Door System, 405.49.017

For three doors, track length 3.0 m. Door weight (maximum): 53 kg. Without soft brake.

Fitting set without tracks

405.49.009, door weight 30 kg (maximum)

405.49.015, door weight 53 kg (maximum)

Accessories

None

Single top track 3.0 m, 405.49.803

Double top track 3.0 m, 405.49.813

Running gear 30 kg capacity (maximum), 405.49.100

Running gear 53 kg capacity (maximum), 405.49.101

Standard product features

Fitting set:

Single/ double top track, pre drilled for screw mounting, silver anodized aluminium.

Running gear, maximum load capacity 30–53 kg, screw fixing, grey finish steel with nylon roller.

Door buffer, aluminium with black rubber buffer.

Bottom guide, screw fixing, black plastic.

Soft brake set for mounting in top track, grey finish steel with nylon roller.
