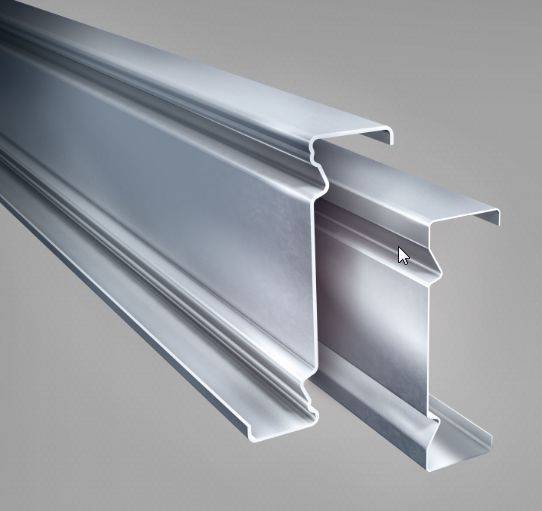

Hadley UltraZED

Application

Suitable for roofing and side cladding projects of all sizes and levels of complexity.

Description

Purlin and side rail system, re-engineered to be fully integrated and offer a technically advanced profile.


Features and benefits:

  • Easy to work with.
  • Delivers greater sustainability benefits.
  • A new profile with a choice of 59 purlin gauge and depth options, easily selected via DesignSuite Pro software.
  • 70 mm flat fixing face enhances sheeting installation and air permeability performance.
  • CE Marking to BS EN 1090 execution class 4.
  • Significant weight savings: typically 6 -13%.
  • Improved load capacities.

General information

Color

Grey

Material

Steel

S450.

Uniclass

Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary

CAWS

G10/30 Cold-formed galvanized steel

G10/170 Cold-formed galvanized steel

Specification data - Cold-formed galvanized steel sections Enhanced data

Primary components

Cladding rails, Roof purlins.

Material

-

Standard

To BS EN 10346.

Designation

S450+Z.

Thickness

1.2 mm.

Coating finish

N.

Surface quality

A.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

1

1.3
IFC

IFC2X3

1

1.3
Revit

Revit 2016

2

2.0
Download now from NBS National BIM Library
