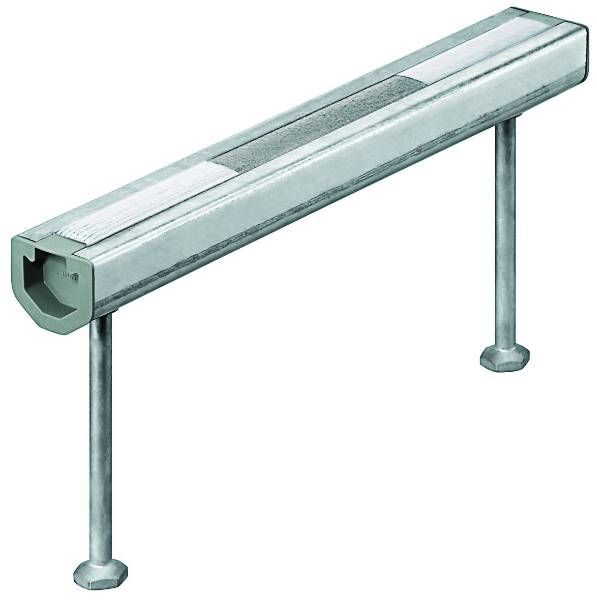

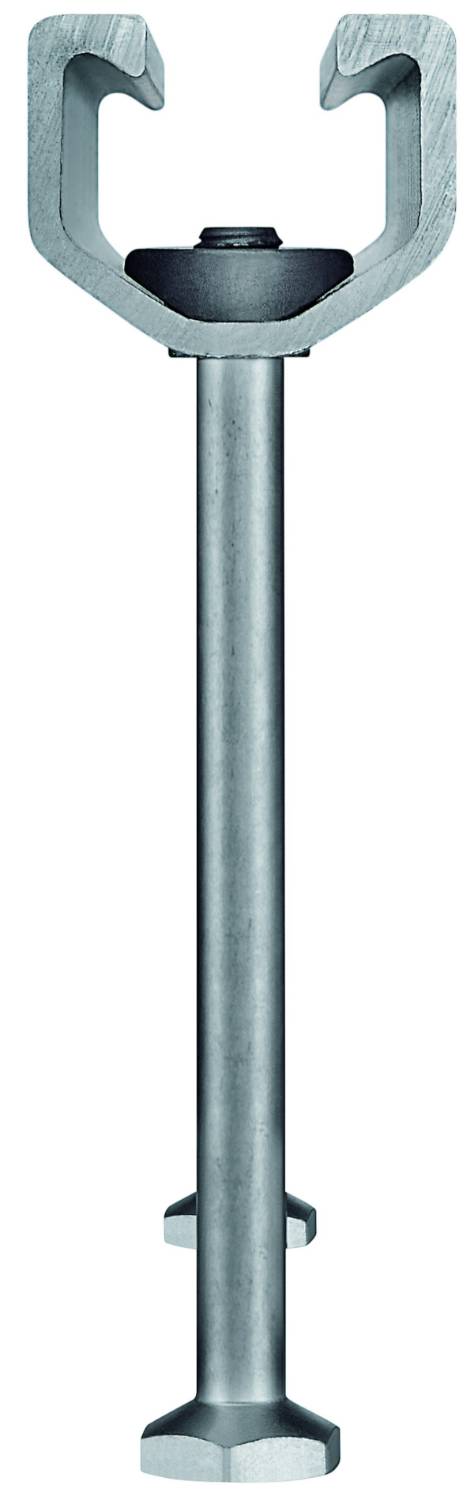

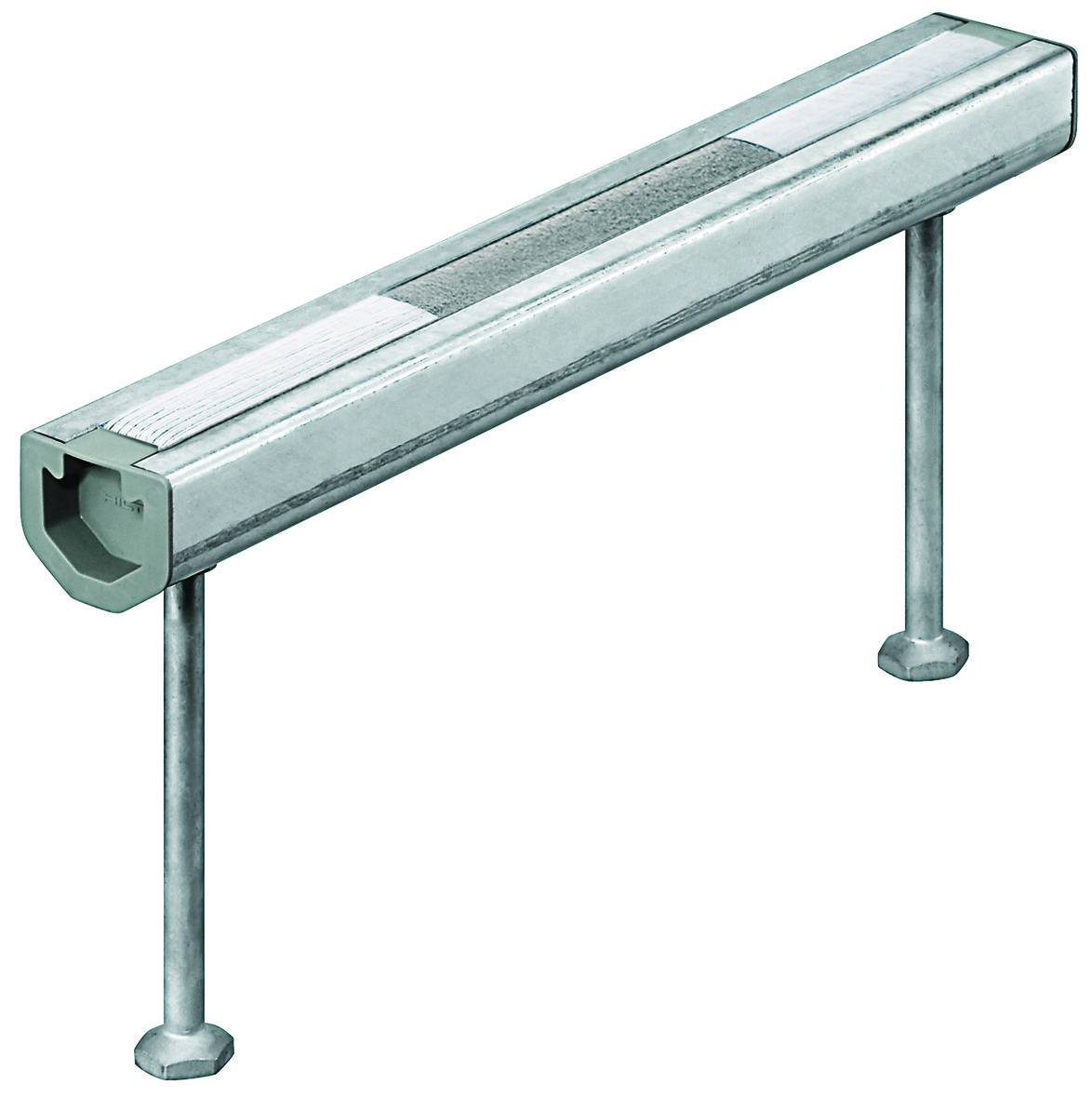

HAC-60 Cast-in Anchor Channel
Cast-in anchor channel.
Application
Suitable for use in:
- Curtain wall façades (e.g. fixing curtain wall elements with brackets).
- Elevators (e.g. fixing guide rails, sliding doors or divider beams).
- Building appliances (e.g. heating, ventilation).
- Power plants.
Description
Hot dip galvanised anchor channel parametric object.
Features and benefits:
- High-performance solution – designed for challenging loads and design parameters.
- Approved for static, fatigue, seismic (ICC-ESR 3520) and fire loading.
- Customizable – options available for virtually any specification.
- Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects.
- High-precision manufacturing.
General information
Color | Grey |
Finish | Galvanized Hot-dip galvanized. |
Material | Steel Carbon steel - Temperature Controlled Rolled Shaping (TCRS). |
Length | 300 mm 350 mm 450 mm 550 mm 1050 mm |
Width | 43.4 mm |
Height | 35.5 mm |
Uniclass |
Product range |
Specification data - Carbon steel cast-in channels Enhanced data
Material | - |
Designation | Carbon steel - Temperature Controlled Rolled Shaping (TCRS). |
Finish | Galvanized to BS EN ISO 1461. |
Bolts | - |
Format | HBC-C Standard T-Head bolt.HBC-C-N Notched T-Head bolts. |
Steel grade | 4.6, to BS EN ISO 898-1.In Electroplated ≥ 8 μm according to DIN EN ISO 4042: 1999 (HBC-C). 8.8, to BS EN ISO 898-1.In Hot-dip galvanized ≥ 45 μm according to EN ISO 1461: 2009 (HBC-C, HBC-C-N). Stainless steel A4-50 according to EN ISO 3506-1.(HBC-C). |
Thread diameter | M10.For HBC-C 4.6 and A4 only. M12.M16.M20.For HBC-C 8.8 only. |
Profile | 43.4 x 35.5 mm. |
Length | 300 mm. 350 mm. 450 mm. 550 mm. 1050 mm. |
Anchor length | 117 mm. |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 1 | 2.0 |
 Revit | Revit 2017 | 1 | 2.0 |
