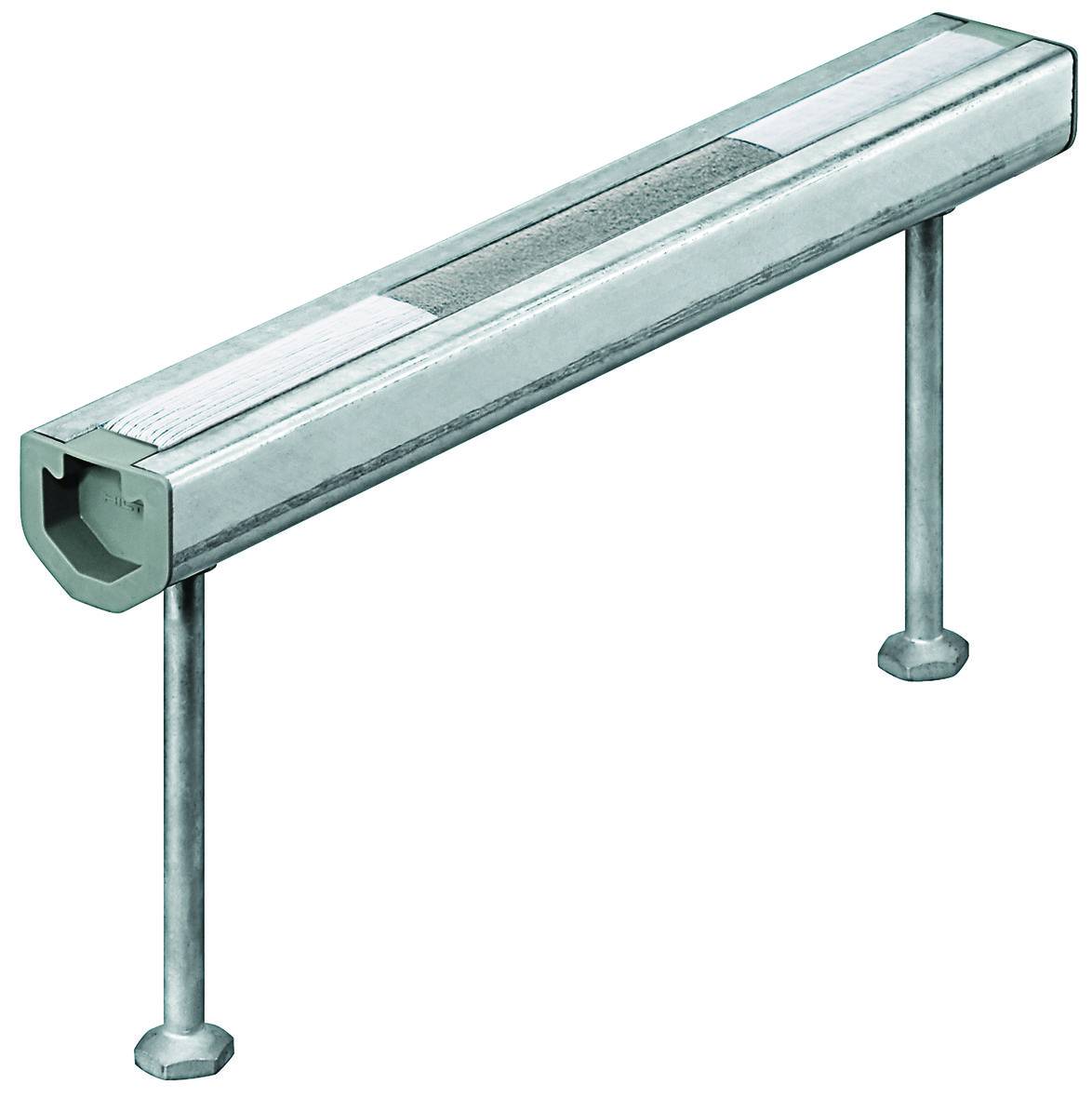

HAC-60 Cast-in Anchor Channel

Description

Hilti HAC-60 Anchor Channel parametric object.

Features and benefits:

  • Fastening curtain wall brackets.
  • Installation of guide rails and doors in elevator shafts.
  • Fastening guide rails and counterweights for elevators.
  • Fastening sliding door mechanisms for elevators.
  • Standard embedment depth: 148 mm.
  • Height: 36 mm.
  • Width: 43 mm.

General information

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.0
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
