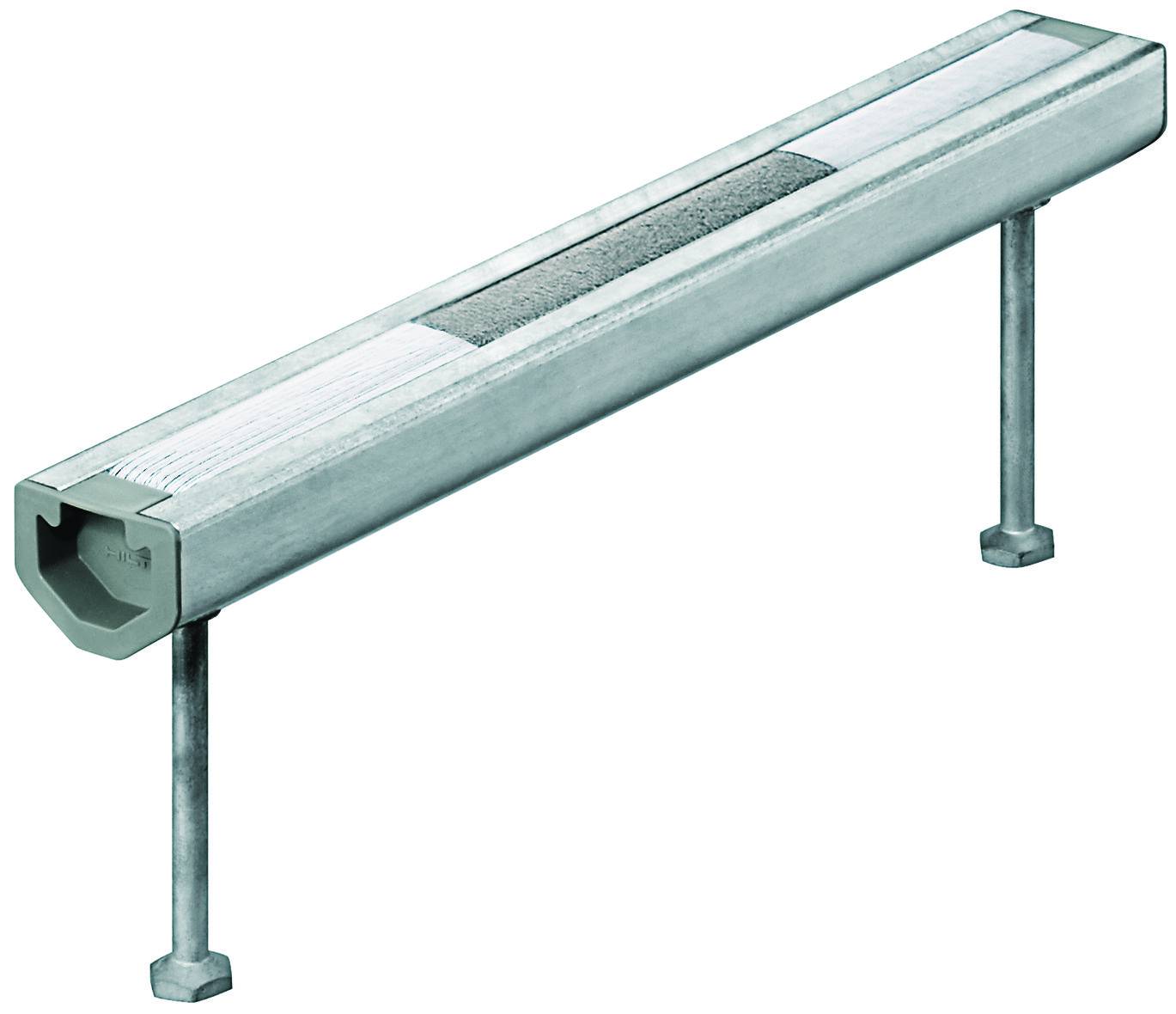

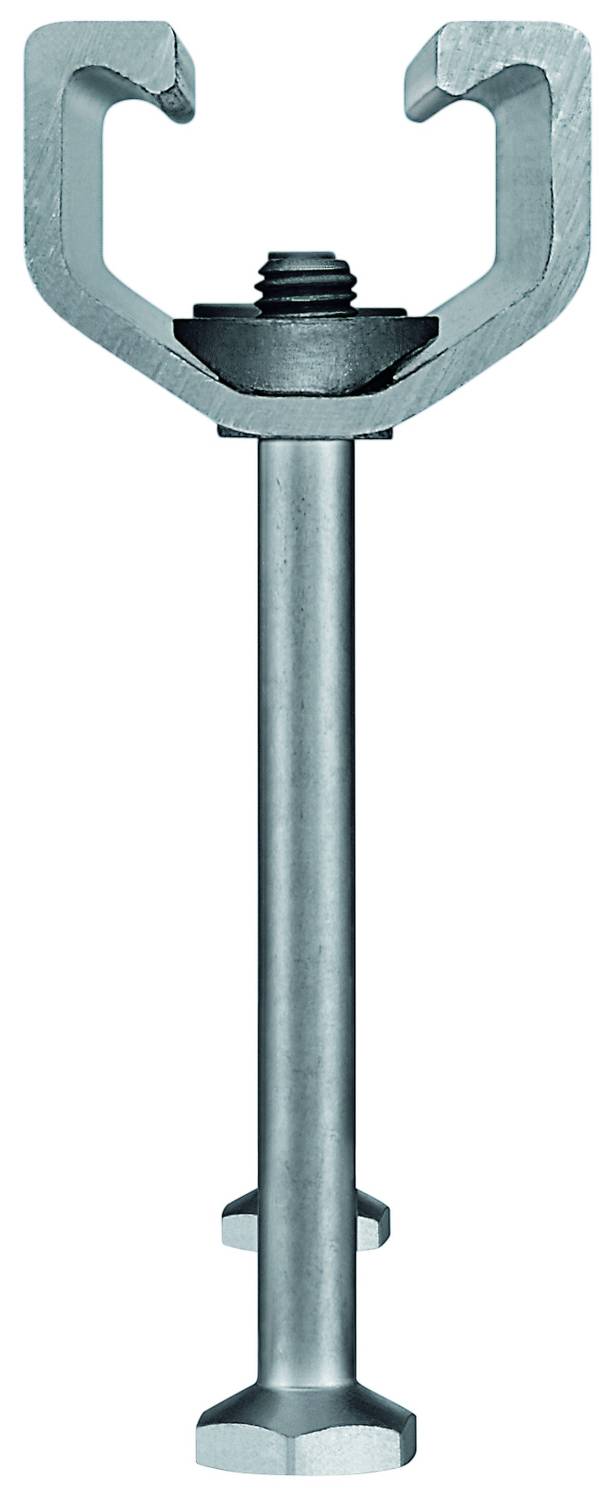

HAC-50 Cast-in Anchor Channel
Description

Hilti HAC-50 Anchor Channel parametric object.

Features and benefits:

  • Fastening curtain wall brackets.
  • Installation of guide rails and doors in elevator shafts.
  • Fastening guide rails and counterweights for elevators.
  • Fastening sliding door mechanisms for elevators.
  • Grids for ceilings in showrooms and trade fair halls.
  • Standard embedment depth: 106 mm.
  • Height: 31 mm.
  • Width: 42 mm.

General information
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.0
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
