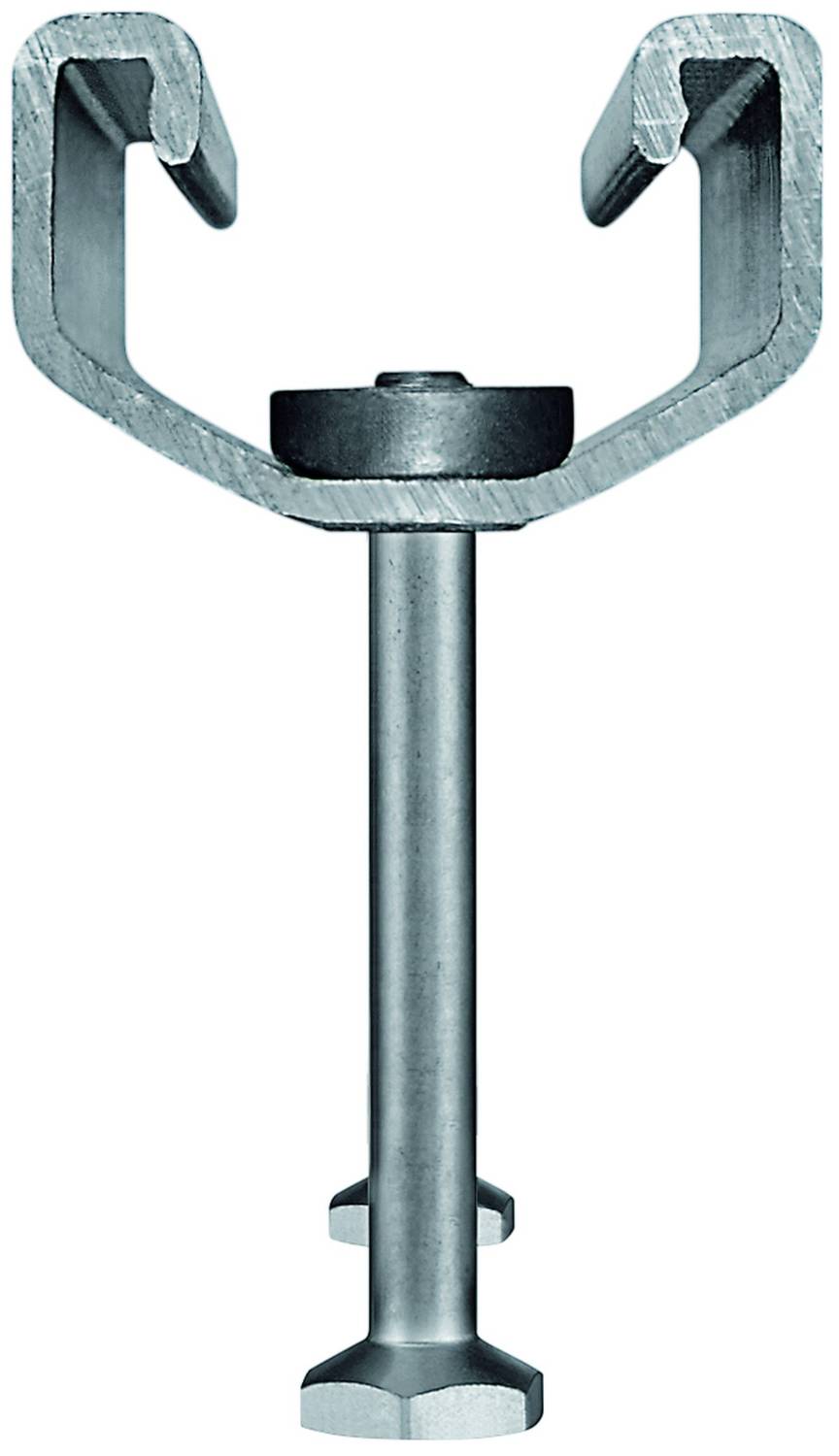

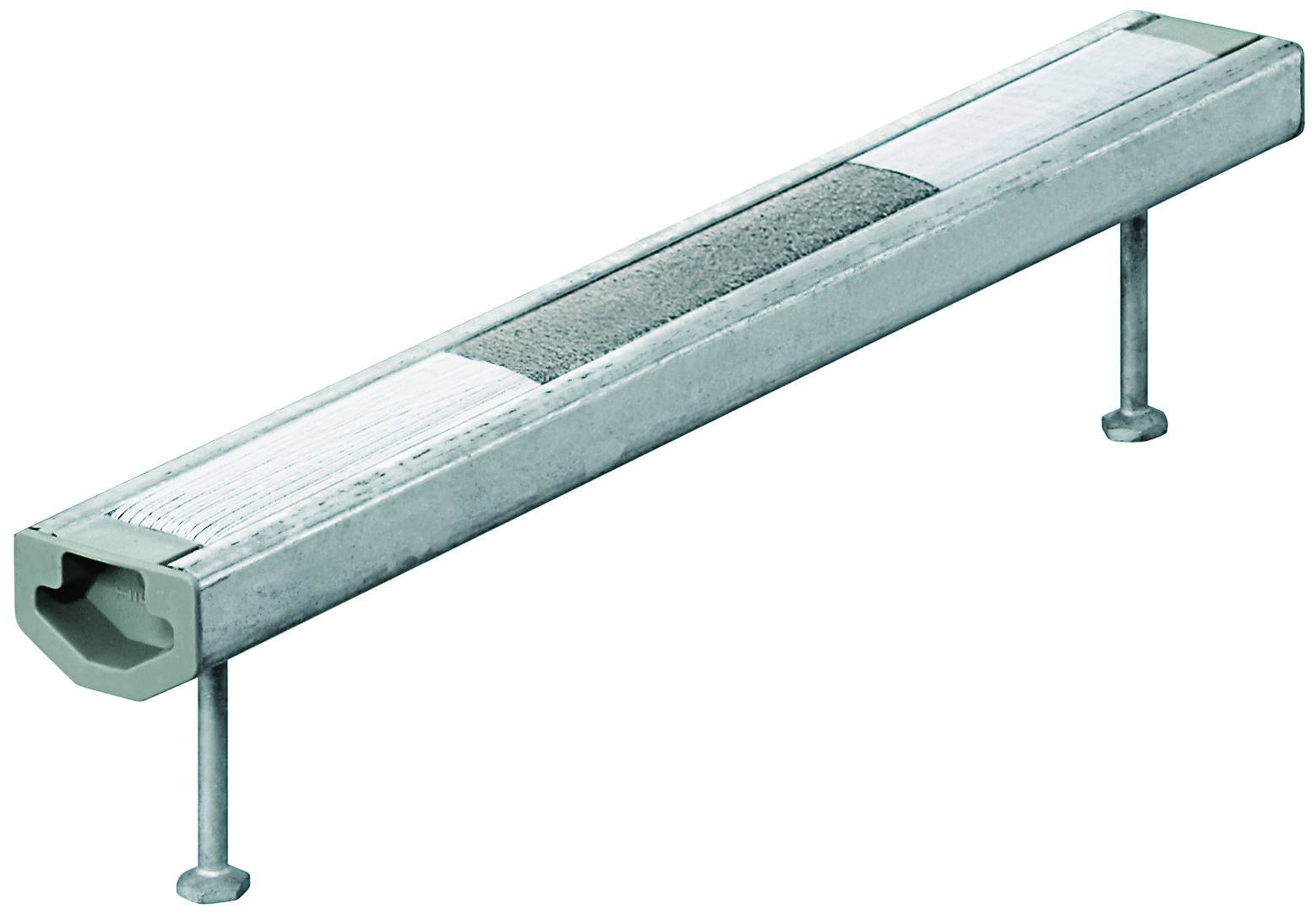

HAC-30 Cast-in Anchor Channel

Application

Suitable for use in:

  • Curtain wall façades (e.g. fixing curtain wall elements with brackets).
  • Elevators (e.g. fixing guide rails, sliding doors or divider beams).
  • Building appliances (e.g. heating, ventilation).
  • Power plants.

Description

Hot dip galvanised, serrated anchor channel parametric object.


Features and benefits:

  • High-performance solution – designed for challenging loads and design parameters.
  • Approved for static, fatigue, seismic (ICC-ESR 3520) and fire loading.
  • Customisable – options available for virtually any specification.
  • Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects.
  • High-precision manufacturing.

General information

Color

Grey

Finish

Galvanized

Hot-dip galvanized.

Material

Steel

Length

200 mm

250 mm

300 mm

550 mm

800 mm

Show more

Width

41.3 mm

Height

25.6 mm

Uniclass

Pr_20_85_84_11 Carbon steel cast-in channelsPrimary

Product range

Anchor

Specification data - Carbon steel cast-in channels Enhanced data

Material

-

Standard

To BS EN 10025-2.

Designation

Carbon steel - Temperature Controlled Rolled Shaping (TCRS).

Finish

Galvanized to BS EN ISO 1461.

Bolts

-

Format

T-head.

HBC-B Serrated T-Head bolt.

Steel grade

4.6, to BS EN ISO 898-1.

Thread diameter

M10.

Electroplated.

M12.

Hot-dip galvanized.

Anchor length

44.4 mm.

Profile

41.3 x 25.6 mm.

Length

200 mm.

250 mm.

300 mm.

550 mm.

800 mm.

Show more

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.0
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
