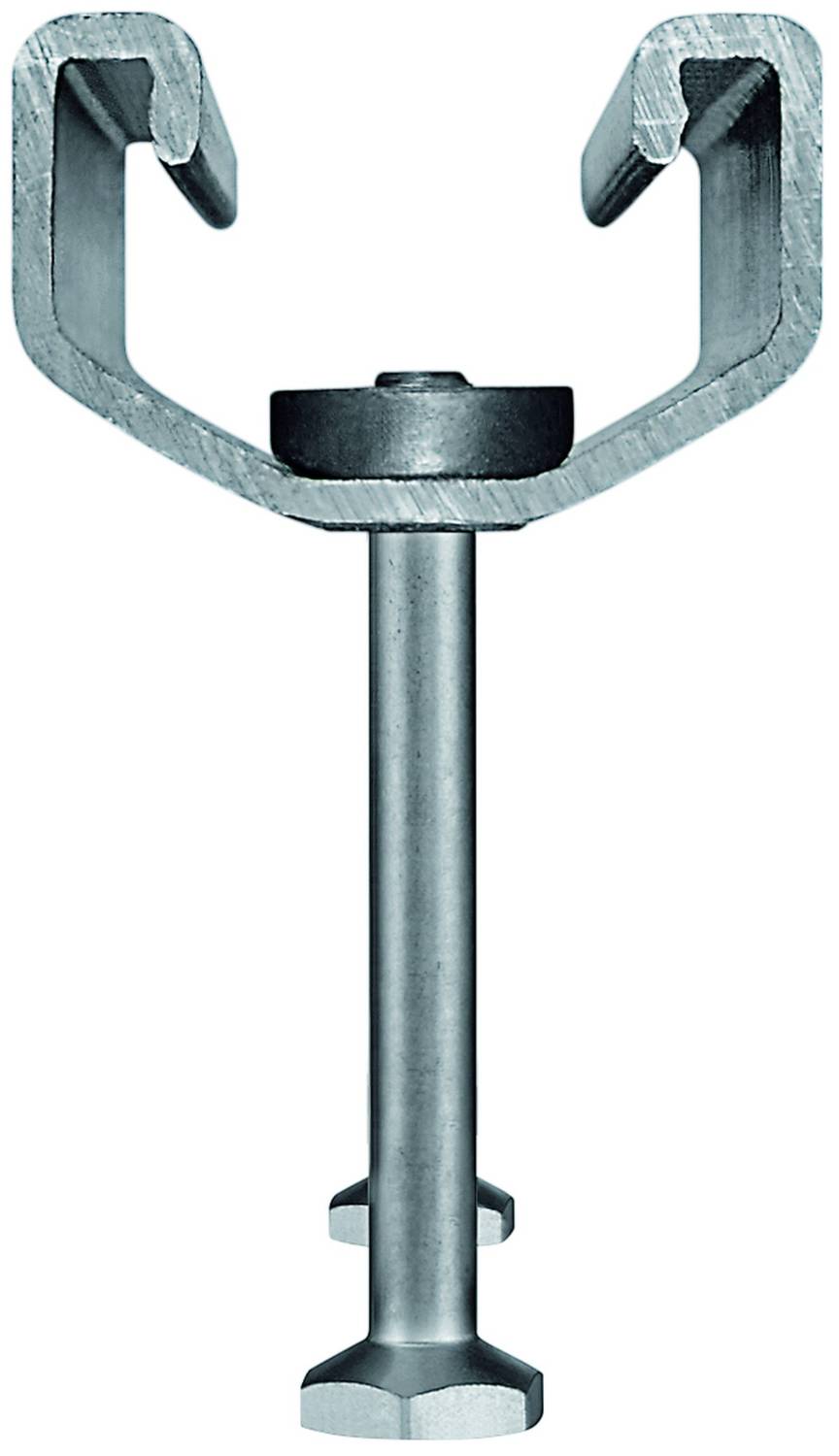

HAC-30 Cast-in Anchor Channel

Description

Hilti HAC-30 Hot Dip Galvanised Anchor Channel parametric object.

Features and benefits:

  • Installation of building services in the basement backbone, risers and backbones for each level.
  • Floor or ceiling grid systems for applications with advanced requirements in terms of flexibility and dust or noise reduction, e.g. semiconductor manufacturing or showrooms.
  • Main runs of pipes or ducts for heating, plumbing, ventilation and air conditioning.
  • Standard embedment depth: 68 mm.
  • Height: 26 mm.
  • Width: 41 mm.

General information

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.0
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
