H Frame Set 600 mm

Description

Big Foot H Frame:

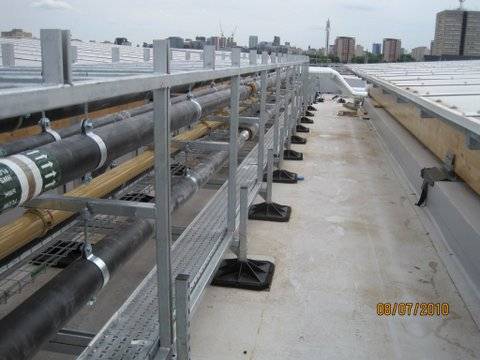

The H Frame Set is a quick, versatile and economical solution for supporting pipework, ductwork, cable trays or any combination of these. Fabrication of the framework on-site keeps the duct and pipe installation low cost and totally flexible., The feet adapt to accommodate 41 x 41 mm off-the-shelf strut (the 305mm foot can also accommodate 41 x 21mm strut). The majority of installations require 305 mm H-frames but where a greater load spread is required 450 H-frames are also available.

Big Foot Multi Foot:

The Multi Foot is designed to be a multi-purpose support for ductwork, pipework and cable trays or any combination of these.

Big Foot Fix-it Foot:

The six sizes of Fix-it Foot are a neat and tidy support solution. The feet have 40 x 20 mm aluminium channel recessed into the top face, allowing fixing of the services across the feet. Suitable for small pipework and cable tray runs.. The Fix-it Foot is made of durable recycled rubber, which offers built-in anti-vibration and makes it both economical and environmentally responsible.

Features/ benefits:

  • Non penetrative, lightweight services support.
  • Cost and time effective installation.
  • Improved system aesthetics.
  • Robust, high quality materials.

Standards:

Constructed to:

  • BS 8000-4: Workmanship on building sites. Code of Practice for waterproofing.
  • BS 6229: Code of Practice for flat roofs with continuously supported coverings.
  • BS EN 1107-1: Flexible sheets for waterproofing. Determination of dimensional stability.
  • BS EN 1850-1: Determination of visible defects.
  • BS 747: Reinforced bitumen sheets for roofing.
  • BS 8212: Code of Practice for mastic asphalt roofing.
  • Building Regulations Part L: Conservation of Fuel and Power - Cold Bridging.
  • BS EN 13167: Thermal insulation products for buildings - Cold Bridging.

General information

Features

Versatile application, quick and easy installation, excellent load distribution, supplied with removable rubber mats for optimum roof protection

Material

Feet: Polyamide 6, Mats: Recycled rubber crumb, Brackets: Galvanized steel

Uniclass 2015

Pr_80_77_27_73 Roof equipment supportsPrimary

Product range

Services Supports

Specification data - Roof equipment supports

Product Reference

B6088

Big Foot H Frame, small.

B6089

Big Foot H Frame, large.

B6357

Big Foot Multi Foot, small.

B6735

Big Foot Fix-it Foot, model 250.

B6736

Big Foot Fix-it Foot, model 400.

B6737

Big Foot Fix-it Foot, model 600.

B9096

Big Foot Fix-it Foot, model 1000.

B9043

Big Foot Fix-it Foot, model 250L.

B9045

Big Foot Fix-it Foot, model 400L.

Design

As drawing

Insert drawing reference number where applicable.

Anti-vibration mat

Not required

Required

Multi Foot only.

Accessories

None

Angled AV mats

2.5° and 5° AV mats are also available for sloped roofs.

Feet fleeces

Recommended for use on PVC membrane roof surfaces to prevent migration of plasticizers.

Fix-it Foot Mini Split Kit, B2984

Length: 600 mm.

Standard product features

Product reference:

- B6088:

  • Foot size: 305 mm x 305 mm.
  • Recommended loading per foot: 150 kg.

- B6089:

  • Foot size: 450 mm x 450 mm.
  • Recommended loading per frame: 300 kg.

- B6357:

  • Size (h x w x l): 95 x 180 x 400 mm.
  • Maximum loading per foot: 77 kg.

- B6735:

  • Size (h x w x l): 95 x 180 x 250 mm.
  • Maximum loading per foot: 50 kg.

- B6736:

  • Size (h x w x l): 95 x 180 x 400 mm.
  • Maximum loading per foot: 100 kg.

- B6737:

  • Size (h x w x l): 95 x 220 x 600 mm.
  • Maximum loading per foot: 150 kg.

- B9096:

  • Size (h x w x l): 95 x 180 x 1000 mm.
  • Maximum loading per foot: 500 kg.

- B9043:

  • Size (h x w x l): 50 x 130 x 250 mm.
  • Maximum loading per foot: 50 kg.

- B9045:

  • Size (h x w x l): 50 x 130 x 400 mm.
  • Maximum loading per foot: 100 kg.

Components:

- Plastic foot:

Nylon 6 B601L 30% glass fibre filled.

- Anti-vibration mat:

SBR-recycled rubber. Bound using a ratio of high quality moisture curing polyurethane pre-polymer. BS 7188 and BS 5696-3.

- Metal profile - fix it feet

Aluminium 40 x 20 mm profile compatible with strut fixings.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

3

1.3
Revit

Revit 2016

4

2.0
Download now from NBS National BIM Library
