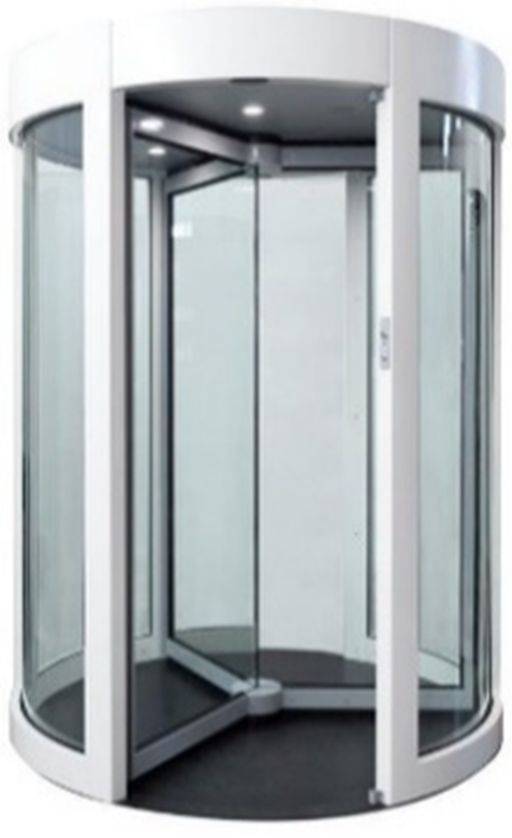

GyroSec FW Revolving Door
Security Revolving Door with 3 wings, available in a range of internal diamter of 1600, 1800 and 2000 mm, and selection of internal hights finishing and security options.
- Government.
- Banking.
- Research and science.
- Education.
- Telecommunication and information technology sectors.
GyroSec is a premium security revolving door with an elegant design which offers a choice of security levels, preventing tailgating and piggybacking.
It offers simultaneous authorized entry and exit, and both directions are electronically controllable. On receiving a signal from the access control system or push button, the door wings rotate to allow authorized passages. Should the authorized user not use the first available sector, the product will allow valid entry through the next sector. GyroSec enforces both rejecting and alarming upon potential unauthorized use and avoids entrapment. It also prevents unauthorized passage from the opposite direction whilst a valid passage is being made in the other direction. This is achieved via sensors located in the ceiling which continuously monitor all door sectors.
Safety is guaranteed by adjustable torque sensing and safety edges for the forward and reverse directions. Emergency wing break-out facility is available.
Day-mode functionality available as standard which is selectable in entry, exit or both directions to leave a free passage and turn security to the highest degree when needed. All parameters and functions are programmable via a user-friendly tablet interface. Various accessories and options, including manual or motorized night shutters, and a wide selection of finishes and sizes are also available.
Features and benefits:
- Premium high security solution.
- Efficient flow management.
- Haake safety edge and brush fitted as standard.
- Floor cable entry with alternate route from the top of the unit.
- Steel casework.
- CE marked.
Applications:
- Government.
- Banking.
- Research and science.
- Education.
- Telecommunication and information technology sectors.
Material | Manufacturer's standard |
Color | RAL 9006 |
Features | Simultaneous authorised entry and exit, rejects and alarms unauthorized use, prevents entrapment, prevents unauthorized passage from the opposite direction, high-security solution, elegant design, efficient flow management |
Finish | Powder coated |
Shape | Cylinder |
Size | 1520 x 1720 x 2300 mm |
Uniclass 2015 | |
CAWS | L20/495 Automatic revolving doors |
Product Reference | GyroSec |
Type | 1600 mm internal diameter, three-wing1800 mm internal diameter, three-wing1800 mm internal diameter, four-wing2000 mm internal diameter, three-wing2000 mm internal diameter, four-wing |
Material | Manufacturer's standard |
Colour/ Finish | Manufacturer's standard |
Accessories | None11 mm three-ply anti-bandit glassAnti-panic push buttonAnti-piggy back system (APB)Breakout wingsCard reader integrationExternal night shuttersFloor carpet (grey)Push button controlStatus light pictograms |
Standard product features | Size: - Height: 2300 mm. - Entry/ exit opening:
Consult technical literature for further details. Weight:
Drive: Safety torque sensing. Logic voltage 24 VAC. Material:
Walkway down lights: Three recessed low voltage mains LED down lights are positioned within the ceiling over each quadrant. There are four down lights within the four sector units. Power failure/ fire alarm: The wings will rotate by the inbuilt battery back-up (BBU) to the safe position in order to allow to escape from each sector, and stop and become inactive. The door will remain in this position until power is restored. A normally closed (NC) signal is required from others to effect this state. Flow rate (simultaneously in both directions):
Technical characteristics:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 1 | 2.1 |
 Revit | - | 1 | 2.1 |
