Description

A lightweight, non-loadbearing, steel 'I' stud, twin framed, acoustic separating wall that requires no bracing. As an approved Robust Detail construction (E-WS-2) it is primarily used in sound resisting walls for residential units, such as flats and apartments, to exceed the requirements of Building Regulations. The system can also be specified in commercial and industrial buildings where good acoustic performance is required.

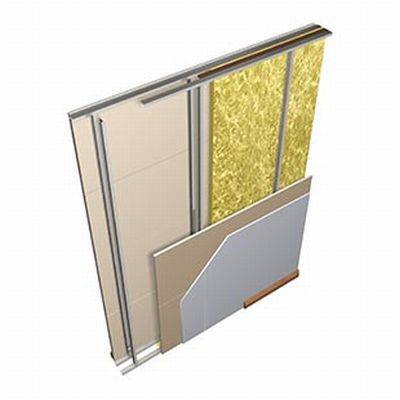

The wall consists of two independent British Gypsum Metal Stud frames, with acoustic insulation suspended in the cavity and two or three layers of plasterboard screw fixed to each side.

Not suitable for use in areas subjected to continuous damp or humid conditions. Specify MR (moisture resistant) boards in intermittent wet areas.

Performance:

  • Strength and robustness: Satisfies BS 5234 requirements up to Severe Duty.
  • Fire resistance: Up to 120 minutes.
  • Approved Robust Detail (RD) construction: Can be used to meet Building Regulations, Approved Document E requirements without pre-completion testing.

Specification data
Product Reference

GypWall QUIET IWL

Partition thickness

250 mm

275 mm

Studs -
Type

48 mm Gypframe 48 I 50 'I' twin studs

60 mm Gypframe 60 I 50 'I' twin studs

60 mm Gypframe 60 I 70 'I' twin studs

70 mm Gypframe 70 I 70 'I' twin studs

92 mm Gypframe 92 I 90 'I' twin studs

Centres

600 mm

Head condition -
Type

Standard Gypframe 50 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Standard Gypframe 62 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Standard Gypframe 72 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Standard Gypframe 94 C 50 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Deep flange Gypframe 50 DC 60 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Deep flange Gypframe 62 DC 60 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Deep flange Gypframe 72 DC 60 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Extra deep flange Gypframe 94 DC 60 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Extra deep flange Gypframe 50 EDC 70 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Extra deep flange Gypframe 72 EDC 80 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Extra deep flange Gypframe 94 EDC 70 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Insulation

50 mm Isover APR 1200

100 mm Isover APR 1200

Linings -
Type

2 x 15 mm Gyproc DuraLine to each side

200 mm thick partition only.

2 x 15 mm Gyproc FireLine to each side

250 mm thick partition only.

2 x 15 mm Gyproc SoundBloc to each side

250 mm thick partition only.

2 x 15 mm Gyproc SoundBloc and 1 x 12.5 mm Gyproc FireLine to each side

275 mm thick partition only.

Edge

Tapered edge

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

Not suitable for use with Gyproc Board Moisture Resistant Grade.

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Prime

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

None

Rigid beads/ stops

Other requirements

None

Access panels

Product Options

Partition thickness:

The 200 and 250 mm thick partitions have two layers of board to each face, whilst the 275 mm thick partition has three layers of board to each face.

Deflection allowance:

Consult British Gypsum technical literature for recommendations.
