This product is no longer available

Description

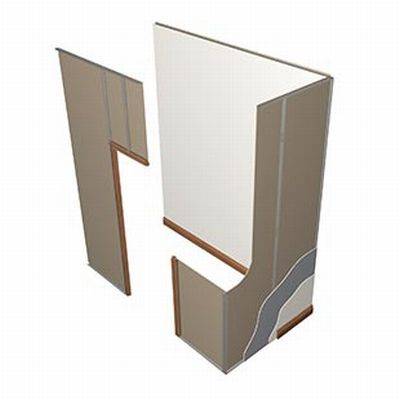

Ultimate impact resistant partition for use where extra durability is required above and beyond Severe Duty. Able to cope with the rigours of intensive high traffic use in commercial applications.

GypWall™ EXTREME combines Gyproc plasterboards, Gypframe metal products and Glasroc Rigidur H advanced fibre reinforced gypsum board to create a lightweight, cost-effective solution both in terms of construction and lifetime costs. GypWall™ EXTREME is fully adaptable and compatible with other British Gypsum systems.

GypWall™ EXTREME can accept heavy fixings on a single layer without the need for additional support battens.

Performance:

  • Strength and robustness: Successfully tested above performance requirements of BS 5234-2: 1992 Severe Duty.
  • Fire resistance: Up to 60 minutes.
  • Sound insulation, Rw: Up to 62 dB.

General information
Specification data - Gypsum board partition systems
Product Reference

GypWall EXTREME

System

X606009

X606001

X606010

X606002

X606011

X606003

X606012

X606004

X606A005

X606A006

X606A007

X606A013

X606A014

Head condition -
Type

Gypframe 72 DC 60 Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 148 DC 60 Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 72 EDC 80 Extra Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 148 EDC 80 Extra Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Primer

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

Rigid beads/ stops

Other requirements

None

Access panels

Product Options

System:

– X606009:

  • Studs: Gypframe 70 S 60 'C' studs at 600 mm centres.
  • Lining: 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 97 mm.
  • Maximum partition height: 3800 mm.
  • Fire resistance: 30 minutes.
  • Sound insulation, Rw: 44 dB.

– X606001:

  • Studs: Gypframe 70 S 60 'C' studs at 600 mm centres.
  • Lining: 1 x 15 mm Rigidur H to each side.
  • Partition thickness: 102 mm.
  • Maximum partition height: 4000 mm.
  • Fire resistance: 30 minutes.
  • Sound insulation, Rw: 45 dB.

– X606010:

  • Studs: Gypframe 70 S 60 'C' studs at 600 mm centres.
  • Insulation: 25 mm Isover APR 1200 in the cavity.
  • Lining: 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 97 mm.
  • Maximum partition height: 3800 mm.
  • Fire resistance: 30 minutes.
  • Sound insulation, Rw: 47 dB.

– X606002:

  • Studs: Gypframe 70 S 60 'C' studs at 600 mm centres.
  • Insulation: 25 mm Isover APR 1200 in the cavity.
  • Lining: 1 x 15 mm Rigidur H to each side.
  • Partition thickness: 102 mm.
  • Maximum partition height: 4000 mm.
  • Fire resistance: 30 minutes.
  • Sound insulation, Rw: 51 dB.

– X606011:

  • Studs: Gypframe 70 S 60 'C' studs at 600 mm centres.
  • Insulation: 50 mm Isover APR 1200 in the cavity.
  • Lining: 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 97 mm.
  • Maximum partition height: 3800 mm.
  • Fire resistance: 30 minutes.
  • Sound insulation, Rw: 49 dB.

– X606003:

  • Studs: Gypframe 70 S 60 'C' studs at 600 mm centres.
  • Insulation: 50 mm Isover APR 1200 in the cavity.
  • Lining: 1 x 15 mm Rigidur H to each side.
  • Partition thickness: 102 mm.
  • Maximum partition height: 4000 mm.
  • Fire resistance: 30 minutes.
  • Sound insulation, Rw: 52 dB.

– X606012:

  • Studs: Gypframe 70 S 60 'C' studs at 600 mm centres.
  • Insulation: 60 mm Isover ULTIMATE Piano Plus in the cavity.
  • Lining: 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 97 mm.
  • Maximum partition height: 3800 mm.
  • Fire resistance: 60 minutes.
  • Sound insulation, Rw: 49 dB.

– X606004:

  • Studs: Gypframe 70 S 60 'C' studs at 600 mm centres.
  • Insulation: 60 mm Isover ULTIMATE Piano Plus in the cavity.
  • Lining: 1 x 15 mm Rigidur H to each side.
  • Partition thickness: 102 mm.
  • Maximum partition height: 4000 mm.
  • Fire resistance: 60 minutes.
  • Sound insulation, Rw: 51 dB.

– X606A005:

  • Studs: Gypframe 70 AS 50 AcoStuds at 600 mm centres.
  • Lining: 1 x 15 mm WallBoard and 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 127 mm.
  • Maximum partition height: 4700 mm.
  • Fire resistance: 60 minutes.
  • Sound insulation, Rw: 54 dB.

– X606A006:

  • Studs: Gypframe 70 AS 50 AcoStuds at 600 mm centres.
  • Lining: 1 x 12.5 mm SoundBloc and 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 122 mm.
  • Maximum partition height: 4700 mm.
  • Fire resistance: 60 minutes.
  • Sound insulation, Rw: 54 dB.

– X606A007:

  • Studs: Gypframe 70 AS 50 AcoStuds at 600 mm centres.
  • Insulation: 25 mm Isover APR 1200 in the cavity.
  • Lining: 1 x 15 mm SoundBloc and 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 127 mm.
  • Maximum partition height: 4700 mm.
  • Fire resistance: 60 minutes.
  • Sound insulation, Rw: 58 dB.

– X606A013:

  • Studs: Gypframe 146 AS 50 AcoStuds at 600 mm centres.
  • Insulation: 25 mm Isover APR 1200 in the cavity.
  • Lining: 1 x 15 mm SoundBloc and 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 203 mm.
  • Maximum partition height: 4000 mm.
  • Fire resistance: 60 minutes.
  • Sound insulation: Rw, 60 dB; Rw + Ctr, 57 dB.

– X606A014:

  • Studs: Gypframe 146 AS 50 AcoStuds at 600 mm centres.
  • Insulation: 50 mm Isover APR 1200 in the cavity.
  • Lining: 1 x 15 mm SoundBloc and 1 x 12.5 mm Rigidur H to each side.
  • Partition thickness: 203 mm.
  • Maximum partition height: 4000 mm.
  • Fire resistance: 60 minutes.
  • Sound insulation: Rw, 62 dB; Rw + Ctr, 59 dB.

Deflection allowance:

Consult British Gypsum technical literature for recommendations and details.
