This product is no longer available

Description

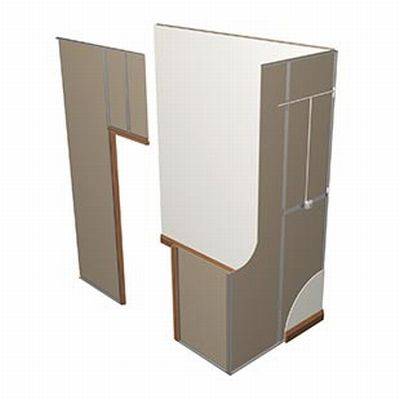

A light, non-loadbearing, internal wall system suitable for all types of buildings, including residential, commercial and healthcare. Approved for use in hospitals by the Department of Health and the Welsh Office (refer to HTM 56, Partitions).

The system consists of tapered or square edge Gyproc plasterboards screw fixed to metal sections. It can be specified to achieve the levels of fire resistance, sound insulation, impact resistance and stability required in normal types of buildings.

Not suitable for use in areas subjected to continuous damp or humid conditions. Specify MR (moisture resistant) boards in intermittent wet areas.

Performance:

  • Strength and robustness: Satisfies BS 5234 requirements up to Severe Duty.
  • Fire resistance: Up to 120 minutes.
  • Sound insulation: Up to Rw 61 dB.

General information
Specification data - Gypsum board partition systems
Product Reference

GypWall Classic

Studs -
Type

48 mm Gypframe 48 S 50 'C' studs

70 mm Gypframe 70 S 50 'C' studs

70 mm Gypframe 70 AS 50 AcouStuds

92 mm Gypframe 92 S 50 'C' studs

92 mm Gypframe 92 AS 50 AcouStuds

146 mm Gypframe 146 S 50 'C' studs

146 mm Gypframe 146 AS 50 AcouStuds

Centres

600 mm

Head condition -
Type

Gypframe 50 C 50 Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 62 C 50 Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 72 C 50 Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 94 C 50 Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 48 C 50 Floor and Ceiling Channels, fixed to ___

Insert e.g. underside of ceiling joists.

Gypframe 72 DC 60 Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 94 DC 60 Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 148 DC 60 Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 72 EDC 80 Extra Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 94 EDC 70 Extra Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Gypframe 148 EDC 80 Extra Deep Flange Floor and Ceiling Channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Insulation -
Type

Isover APR 1200

Stone mineral wool

Thickness

25 mm

50 mm

Linings -
Type

1 x 12.5 mm Gyproc FireLine to each side

2 x 12.5 mm Gyproc FireLine to each side

1 x 15 mm Gyproc FireLine to each side

2 x 15 mm Gyproc FireLine to each side

1 x 12.5 mm Gyproc FireLine inner layer plus 1 x 12.5 mm Gyproc FireLine MR outer layer to each side – tapered edge

1 x 15 mm Gyproc FireLine inner layer plus 1 x 15 mm Gyproc FireLine MR outer layer to each side – tapered edge

1 x 12.5 mm Gyproc FireLine MR to each side – tapered edge

1 x 15 mm Gyproc FireLine MR to each side – tapered edge

1 x 12.5 mm Gyproc Moisture Resistant to each side

1 x 15 mm Gyproc Moisture Resistant to each side – tapered edge

1 x 10 mm Glasroc F MultiBoard to each side – square edged

2 x 10 mm Glasroc F MultiBoard to each side – square edged

1 x 12.5 mm Glasroc F MultiBoard to each side – square edged

1 x 15 mm Glasroc F MultiBoard to each side – square edged

1 x 12.5 mm Gyproc SoundBloc to each side – tapered edge

2 x 12.5 mm Gyproc SoundBloc to each side – tapered edge

1 x 15 mm Gyproc SoundBloc to each side – tapered edge

2 x 15 mm Gyproc SoundBloc to each side – tapered edge

1 x 12.5 mm Gyproc SoundBloc inner layer plus 1 x 12.5 mm Gyproc SoundBloc MR outer layer to each side – tapered edge

1 x 15 mm Gyproc SoundBloc inner layer plus 1 x 15 mm Gyproc SoundBloc MR outer layer to each side – tapered edge

1 x 15 mm Gyproc SoundBloc MR to each side – tapered edge

1 x 12.5 mm Gyproc SoundBloc MR to each side – tapered edge

1 x 12.5 mm Gyproc WallBoard to each side

2 x 12.5 mm Gyproc WallBoard to each side

1 x 15 mm Gyproc WallBoard to each side

2 x 15 mm Gyproc WallBoard to each side

1 x 12.5 mm Gyproc WallBoard inner layer plus 1 x 12.5 mm Gyproc Moisture Resistant outer layer to each side

1 x 15 mm Gyproc WallBoard inner layer plus 1 x 15 mm Gyproc Moisture Resistant outer layer to each side – tapered edge

Edge

Not applicable

Square edged

Tapered edge

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

Not suitable for use with Gyproc Board Moisture Resistant Grade.

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Prime

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

None

Rigid beads/ stops

Other requirements

None

Access panels

Product Options

Deflection allowance:

Consult British Gypsum technical literature for recommendations

Insulation:

  • Isover APR 1200 offers improved acoustic performance and is available in 25 mm and 50 mm thicknesses.
  • Stone mineral wool offers acoustic and thermal insulation.

Edge:

  • Glasroc F MultiBoard available square edged only.
  • Gyproc SoundBloc available tapered edge only.
  • All other boards available squared edged or tapered edge.
