Description

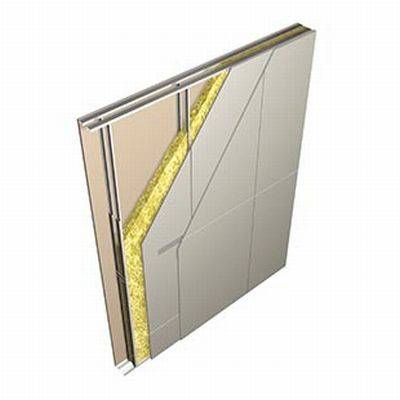

A high performance, non-loadbearing, twin-frame wall system that provides exceptional levels of sound insulation. It is used to separate multiple use facilities, such as lecture theatres, music rooms, multi-screen cinemas, exhibition and conference centres, and leisure centres.

The wall is constructed from two independent Gypframe studs and channels, spaced to give an overall partition width of 300–800 mm. The frames are braced using Gypframe Acoustic Braces or solid braces formed from Gypframe 99 FC 50 Fixing Channel. Layers of insulation are suspended in the cavity, and two or three layers of plasterboard are screw fixed to form the linings.

Not suitable for use in areas subjected to continuous damp or humid conditions. Specify MR (moisture resistant) boards in intermittent wet areas.

Performance:

  • Strength and robustness: Satisfies BS 5234 requirements up to Severe Duty.
  • Fire resistance: Up to 120 minutes.
  • Sound insulation, Rw: Up to 80 dB.

General information
Specification data - Gypsum board partition systems
Product Reference

GypWall AUDIO

Studs -
Type

92 mm Gypframe 92 S 10 'C' stud

Centres

600 mm

Head condition -
Type

Standard Gypframe 94 C 70 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Deep flange Gypframe 94 DC 60 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Extra deep flange Gypframe 94 EDC 70 floor and ceiling channels, fixed to ___

Insert e.g. 'underside of ceiling joists'.

Insulation

1 x 100 mm Isover general purpose roll

2 x 100 mm Isover general purpose roll

3 x 100 mm Isover general purpose roll and 2 x 100 mm stone mineral wool

4 x 100 mm Isover general purpose roll and 2 x 100 mm stone mineral wool

Linings -
Type

2 x 12.5 mm Gyproc SoundBloc to each side

1 x 12.5 mm Gyproc SoundBloc and 1 x 15 mm Gyproc DuraLine to each side

2 x 15 mm Gyproc SoundBloc to each side

1 x 15 mm Gyproc SoundBloc and 1 x 15 mm Gyproc DuraLine to each side

1 x 19 mm Gyproc Plank and 1 x 12.5 mm Gyproc SoundBloc to each side

1 x 19 mm Gyproc Plank and 1 x 12.5 mm Gyproc FireLine to each side

1 x 19 mm Gyproc Plank and 1 x 15 mm Gyproc DuraLine to each side

3 x 15 mm Gyproc SoundBloc to each side

2 x 15 mm Gyproc SoundBloc and 1 x 15 mm Gyproc DuraLine to each side

Edge

Tapered edge

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

Not suitable for use with Gyproc Board Moisture Resistant Grade.

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Prime

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

None

Rigid beads/ stops

Other requirements

None

GAB1 Acoustic brace

GAB2 Acoustic brace

Product Options

Head condition:

  • For heights to 4200 mm use 94 C 70 channels.
  • For heights of 4200–8000 mm use 94 DC 60 deep flange channels.
  • For heights over 8000 mm use 94 EDC 70 extra deep flange channels.

Deflection allowance:

Consult British Gypsum technical literature for recommendations.
