Description

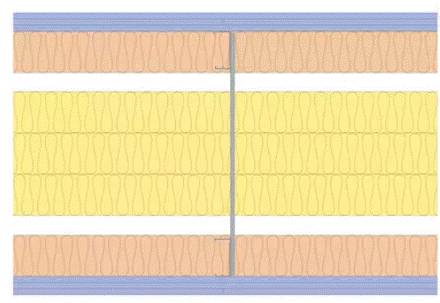

Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 3600mm centres. Three layers of 100mm Isover Cladding Roll 40 and two layers of 100mm stone mineral wool (min. 62kg/m3) in the cavity. For heights up to 8000mm.

General information

Finish

-

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Width

600 mm

Height

8000 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Twin Frame Audio

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 94 DC 60 Deep Flange Floor & Ceiling Channel.
Head channel: Gypframe 94 DC 60 Deep Flange Floor & Ceiling Channel.
Stud: Gypframe 92 S 10 'C' Stud.
Abutments and openings: Gypframe 92 S 10 'C' Stud.
Bracing: Gypframe 99 FC 50 Fixing Channel.

Insulation

Insulation, Layer 1: 100mm stone mineral wool (min. 62kg/m3).
Insulation, Layer 2: 100mm Isover Cladding Roll 40.
Insulation, Layer 3: 100mm Isover Cladding Roll 40.
Insulation, Layer 4: 100mm Isover Cladding Roll 40.
Insulation, Layer 5: 100mm stone mineral wool (min. 62kg/m3).

Linings

Board side 1, Layer 1: Gyproc SoundBloc 15mm.
Board side 1, Layer 2: Gyproc SoundBloc 15mm.
Board side 1, Layer 3: Gyproc SoundBloc 15mm.
Board side 2, Layer 1: Gyproc SoundBloc 15mm.
Board side 2, Layer 2: Gyproc SoundBloc 15mm.
Board side 2, Layer 3: Gyproc SoundBloc 15mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Jack-Point Screws 25mm.
Screws side 1, Layer 2: British Gypsum Jack-Point Screws 41mm.
Screws side 1, Layer 3: British Gypsum Jack-Point Screws 60mm.
Screws side 2, Layer 1: British Gypsum Jack-Point Screws 25mm.
Screws side 2, Layer 2: British Gypsum Jack-Point Screws 41mm.
Screws side 2, Layer 3: British Gypsum Jack-Point Screws 60mm.
Bracing fixing: British Gypsum Wafer Head Jack-Point Screws 13mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Twin-Frame-Audio/A326018A-B-EN#details

Fire resistance

BS EN 1364-1, 90 / 90 Integrity / Insulation

Sound insulation

BS EN ISO 140-3, 77 Rw dB / 69 Rw + Ctr dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

8000mm

Partition thickness

600mm
