Name: GypWall Single Frame Enhanced - X606009 (EN)
Brand: British Gypsum
SKU: b47boAe1FTmutEWvSzdy9D

Verified by manufacturer 17 days ago

Finish

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Width

97 mm

Height

3800 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

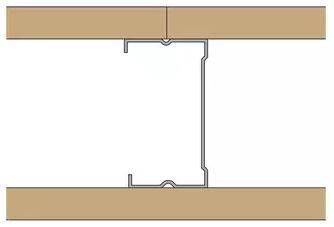

Framing

Base channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel.
Head channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel.
Stud: Gypframe 70 S 60 'C' Stud.
Abutments and openings: Gypframe 70 S 60 'C' Stud.

Linings

Board side 1, Layer 1: Rigidur H 12.5mm.
Board side 2, Layer 1: Rigidur H 12.5mm.

Fasteners

Screws side 1, Layer 1: Rigidur Screws 30mm.
Screws side 2, Layer 1: Rigidur Screws 30mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.
Fixing T: Gypframe GFT1 Fixing 'T'.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame-Enhanced/X606009-EN#details

Fire resistance

BS EN 1364-1, 30 / 30 Integrity / Insulation

Sound insulation

BS EN ISO 10140-2, 43 Rw dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

3800mm

Partition thickness

97mm
