GypWall Single Frame Enhanced - X606003 (EN)
Verified by manufacturer 5 days ago
Description

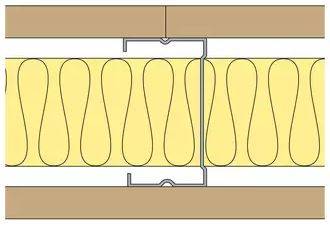

One layer of Rigidur H 15mm each side of Gypframe 70 S 60 'C' Studs at 600mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 102 mm |
Height | 4000 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel. |
Insulation | Insulation, Layer 1: 50mm Isover Acoustic Partition Roll (APR 1200). |
Linings | Board side 1, Layer 1: Rigidur H 15mm. |
Fasteners | Screws side 1, Layer 1: Rigidur Screws 30mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame-Enhanced/X606003-EN#details |
Fire resistance | BS EN 1364-1, 30 / 30 Integrity / Insulation |
Sound insulation | BS EN ISO 10140-2, 48 Rw dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 4000mm |
Partition thickness | 102mm |
