Description

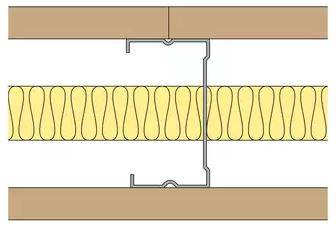

One layer of Rigidur H 15mm each side of Gypframe 70 S 60 'C' Studs at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.

General information

Finish

-

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Width

102 mm

Height

4000 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Single Frame Enhanced

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel.
Head channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel.
Stud: Gypframe 70 S 60 'C' Stud.
Abutments and openings: Gypframe 70 S 60 'C' Stud.

Insulation

Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).

Linings

Board side 1, Layer 1: Rigidur H 15mm.
Board side 2, Layer 1: Rigidur H 15mm.

Fasteners

Screws side 1, Layer 1: Rigidur Screws 30mm.
Screws side 2, Layer 1: Rigidur Screws 30mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.
Fixing T: Gypframe GFT1 Fixing 'T'.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame-Enhanced/X606002-EN#details

Fire resistance

BS EN 1364-1, 30 / 30 Integrity / Insulation

Sound insulation

BS EN ISO 10140-2, 48 Rw dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

4000mm

Partition thickness

102mm
